lemon-mirror
:
Home
>>
Pontiac
>>
2004
>>
Aztek FWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) C1
Body Control Module (BCM) C1

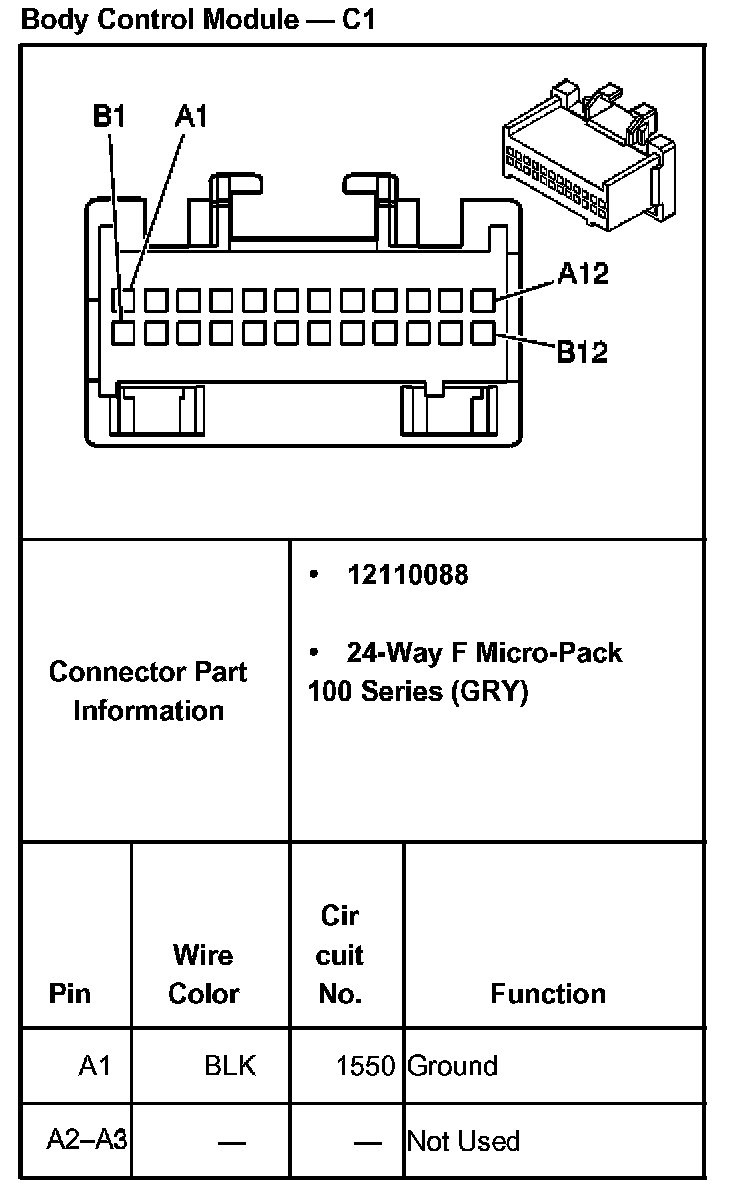

Body Control Module-C1 Part 1:

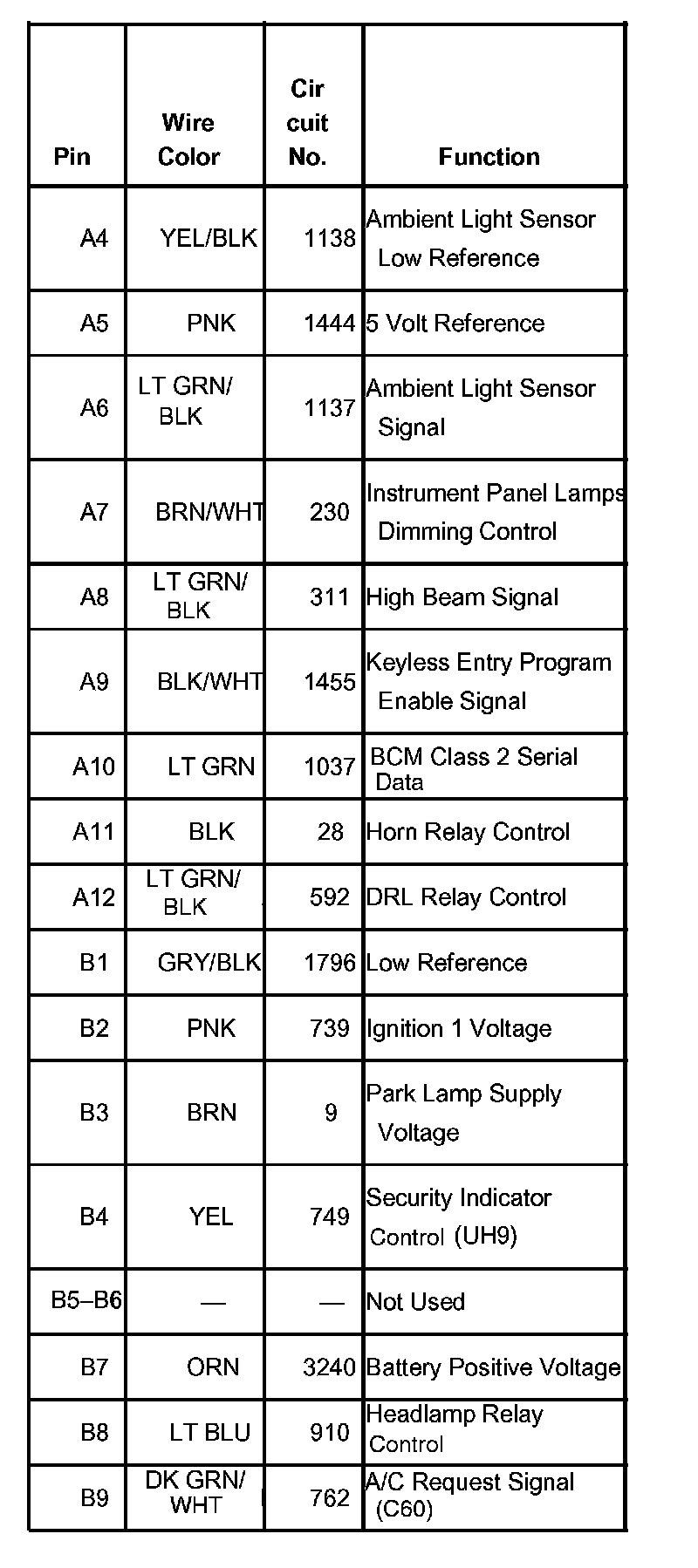

Body Control Module-C1 Part 2:

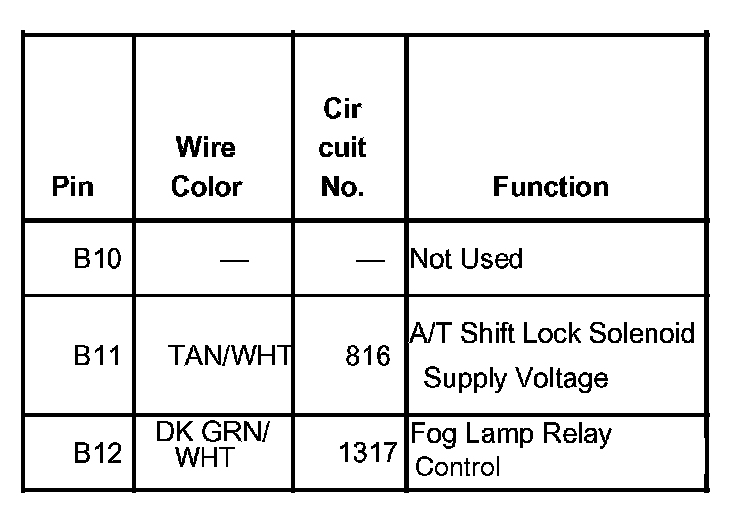

Body Control Module-C1 Part 3:
