Transfer Case

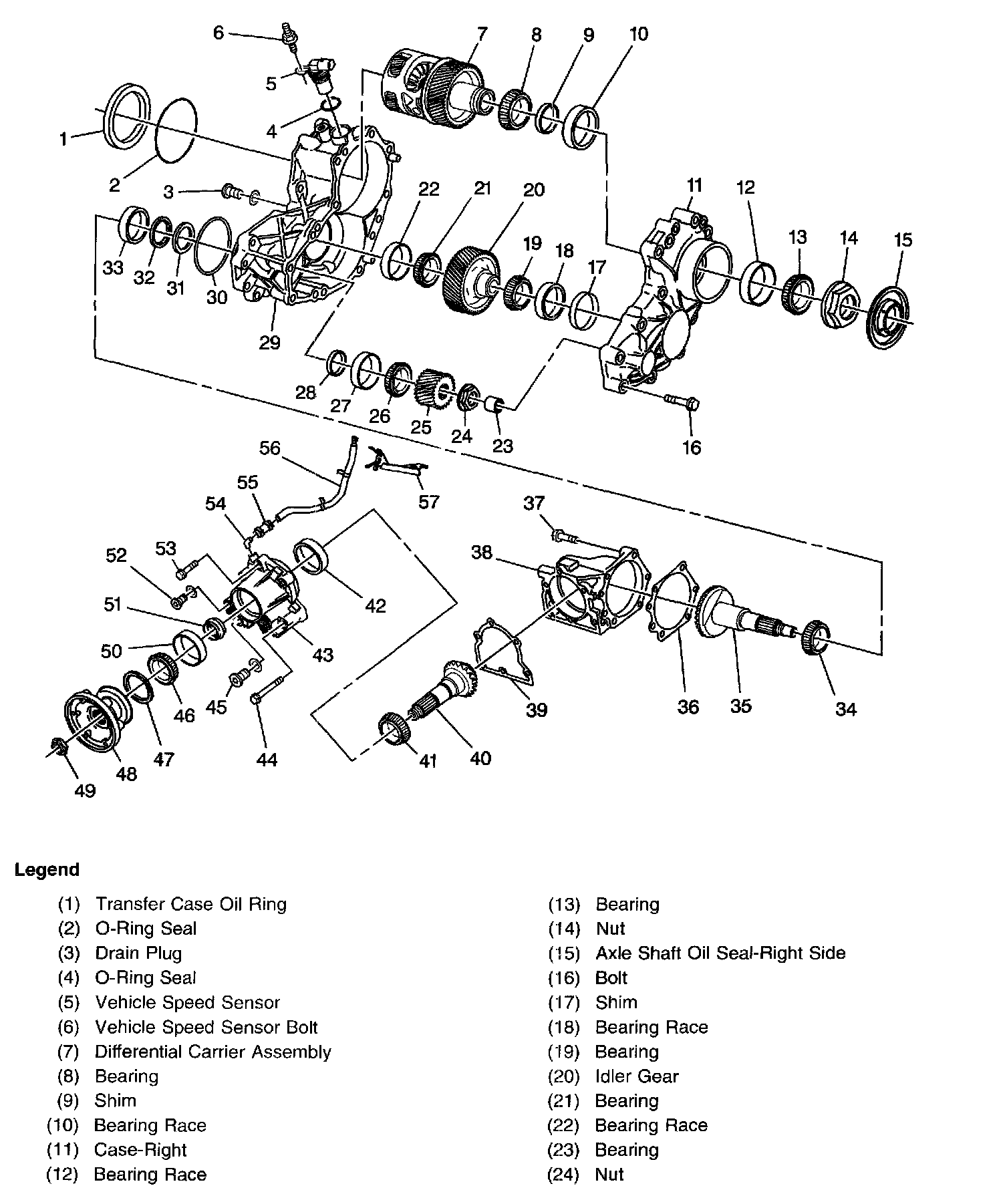

Transfer Case Disassembled View





Part 1 of 2

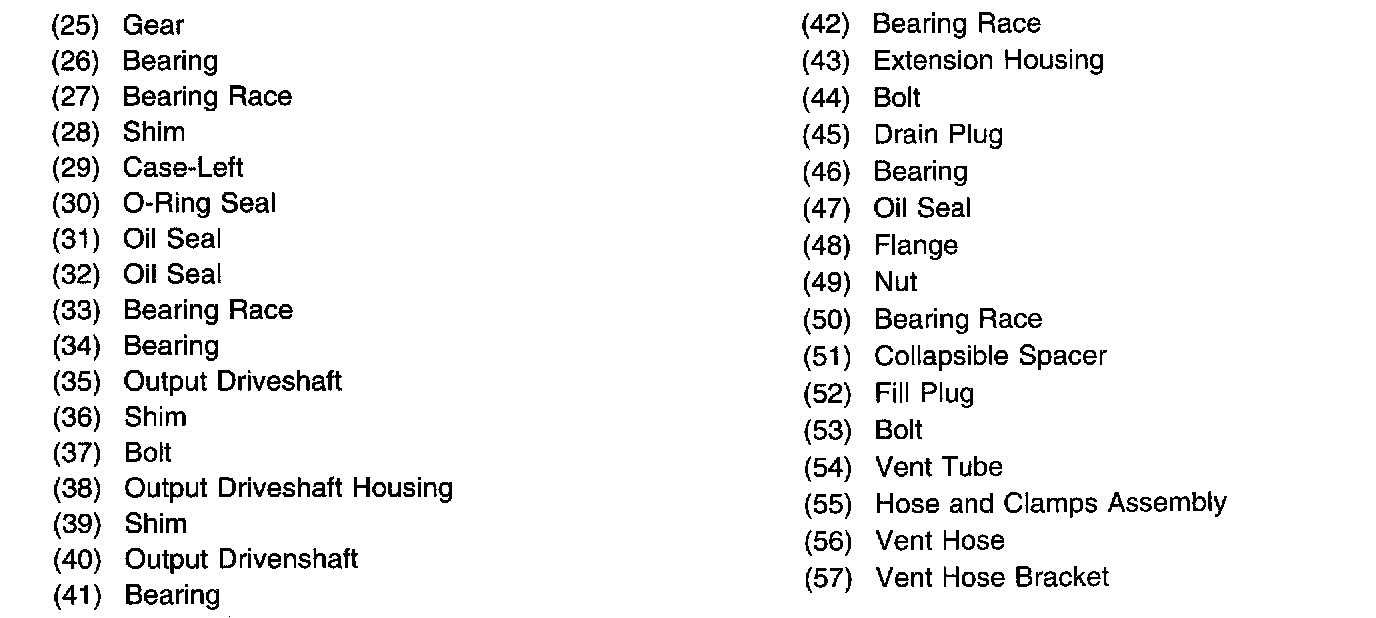

Part 2 of 2

Transfer Case Assembly

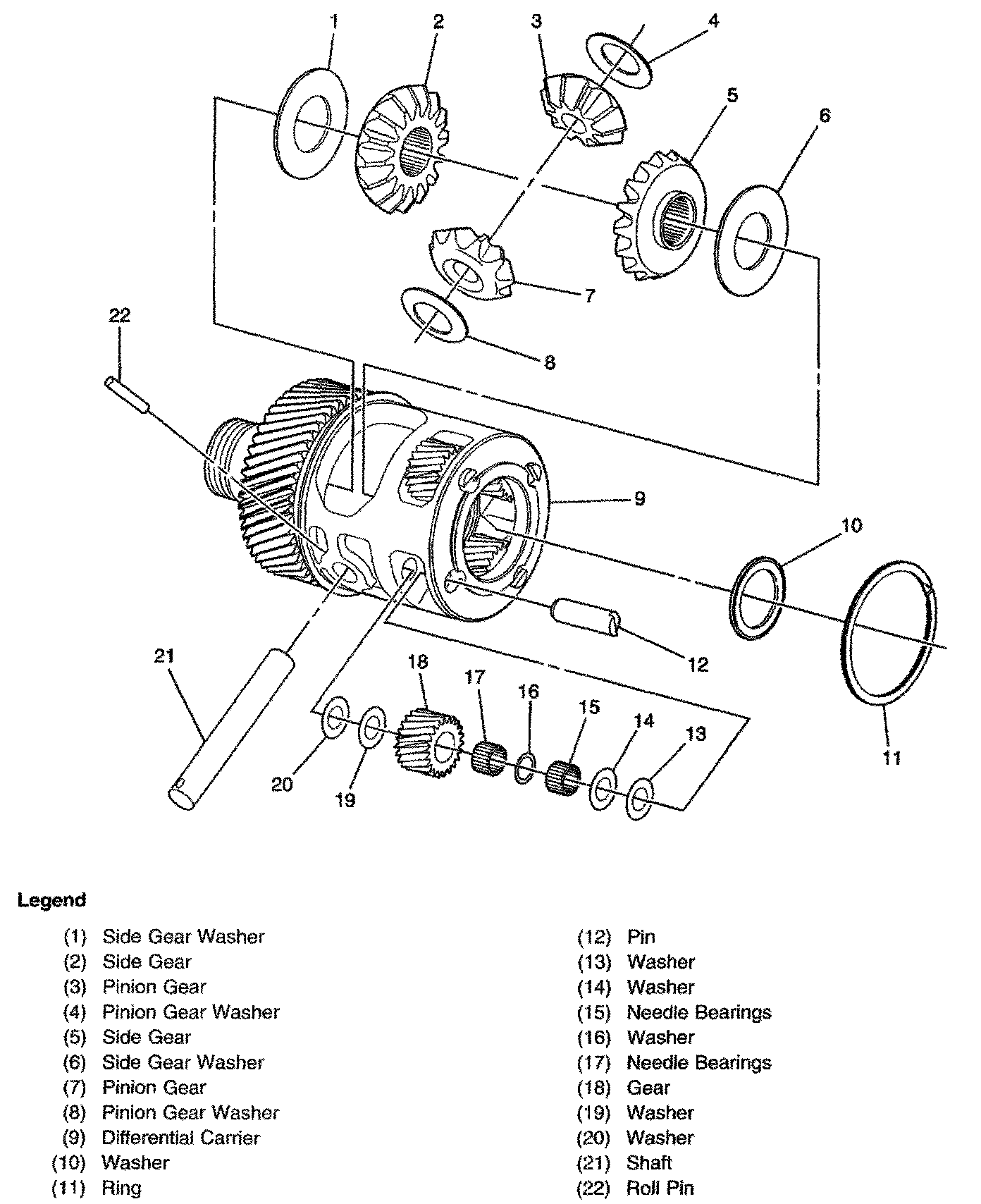

Carrier Assembly
