Home >> Pontiac >> 2003 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

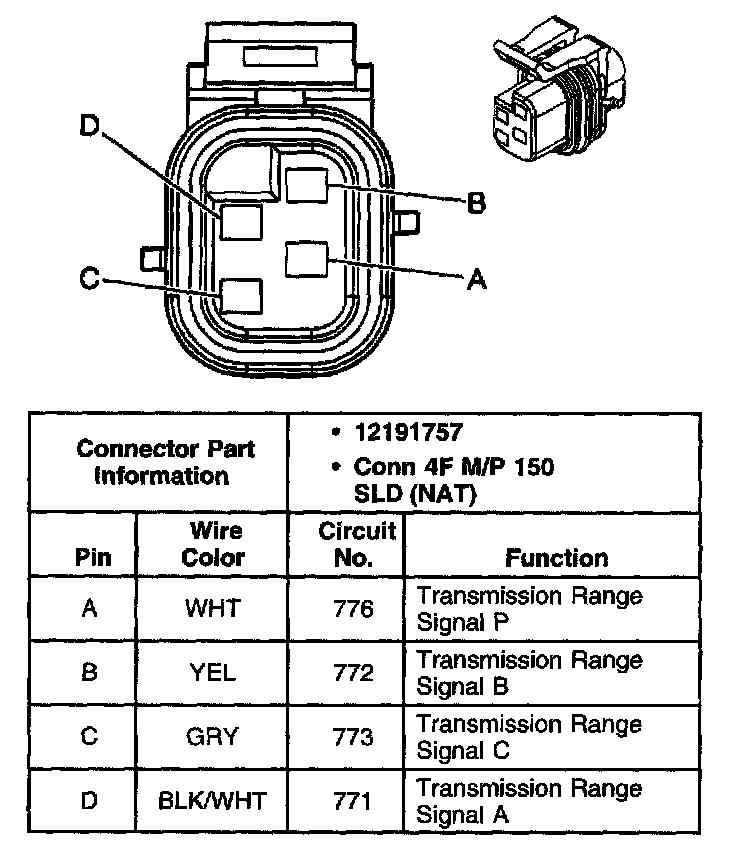

Park/Neutral Position (PNP) Switch C1:

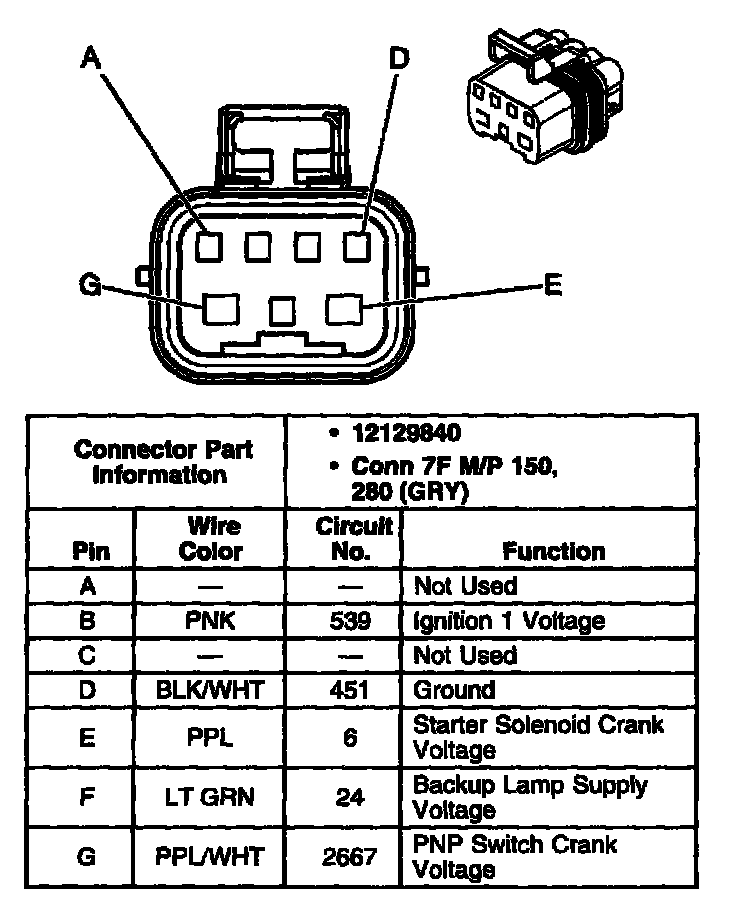

Park/Neutral Position Switch C2:
