Scan Tool Output Controls

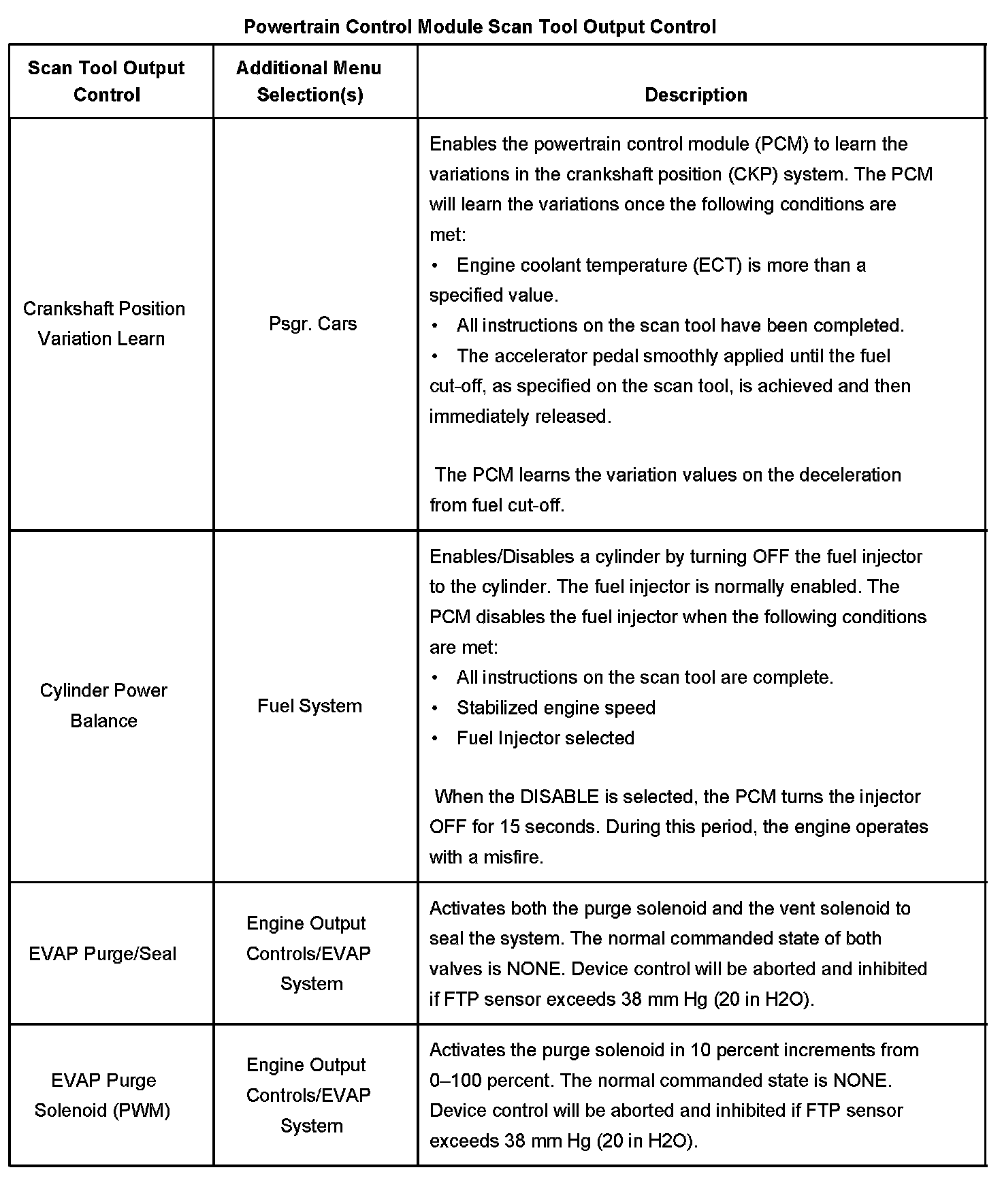

Powertrain Control Module Scan Tool Output Control Part 1:

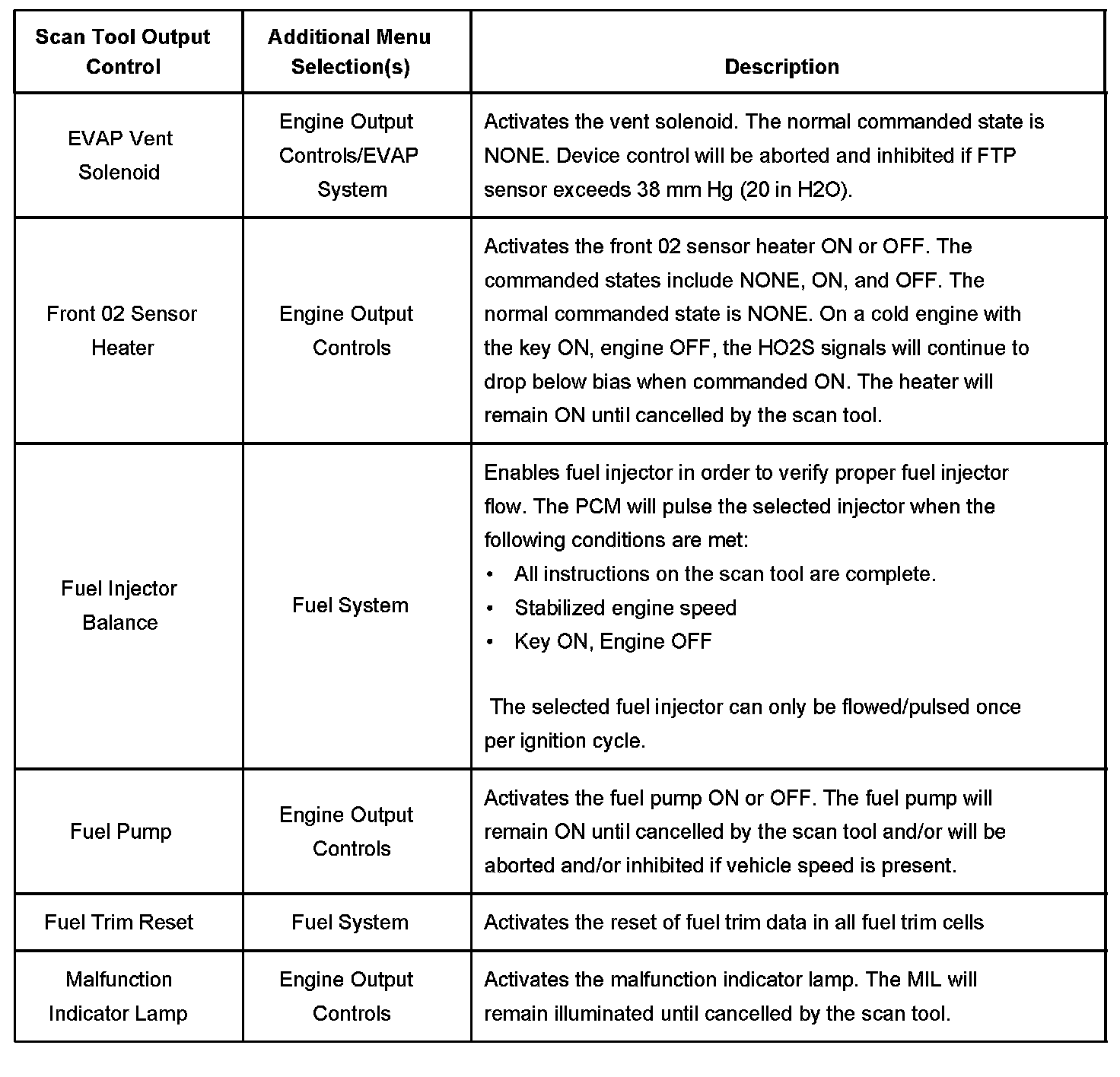

Powertrain Control Module Scan Tool Output Control Part 2:

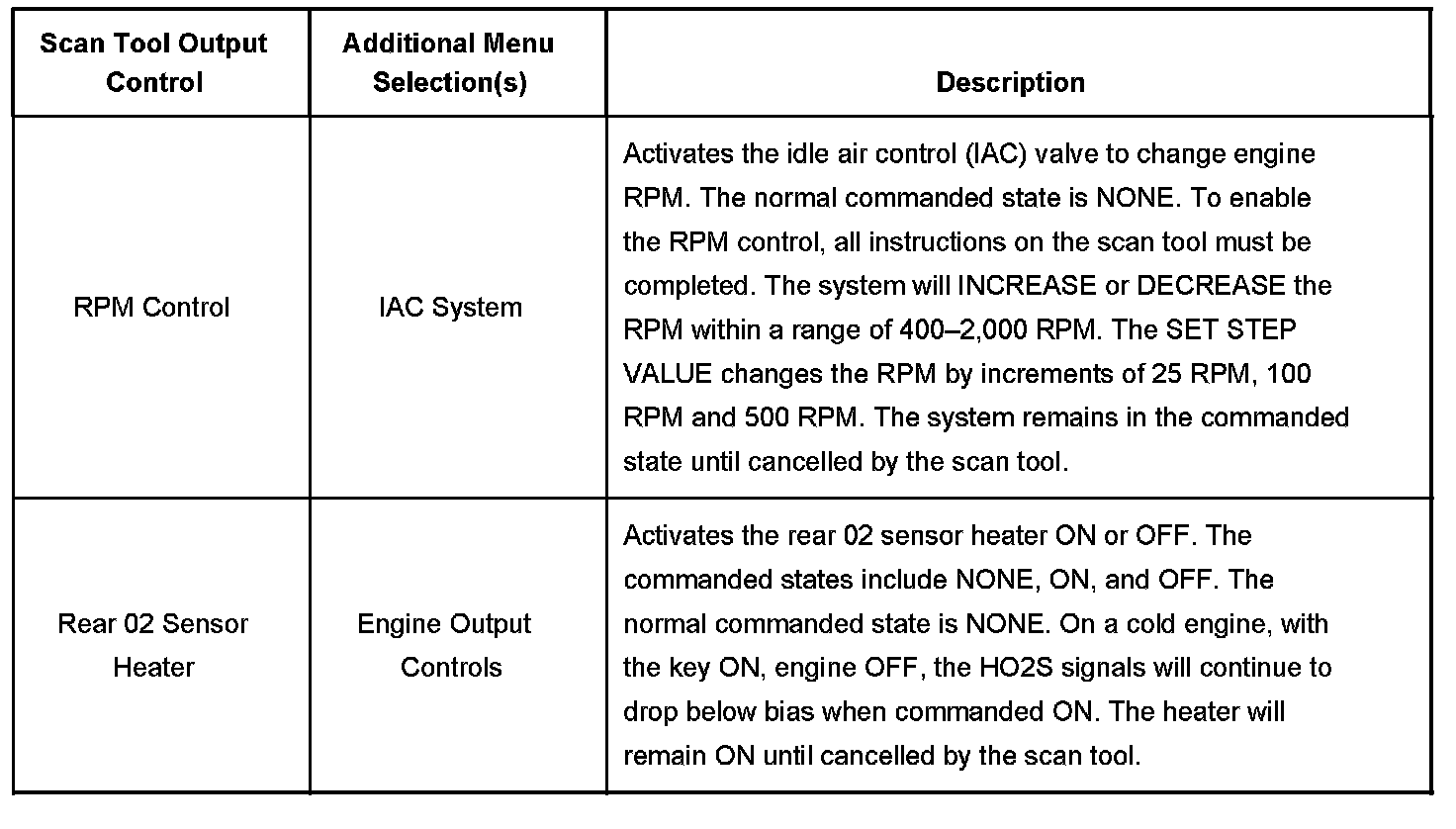

Powertrain Control Module Scan Tool Output Control Part 3:
