Timing Chain and Components

Timing Chain and Components

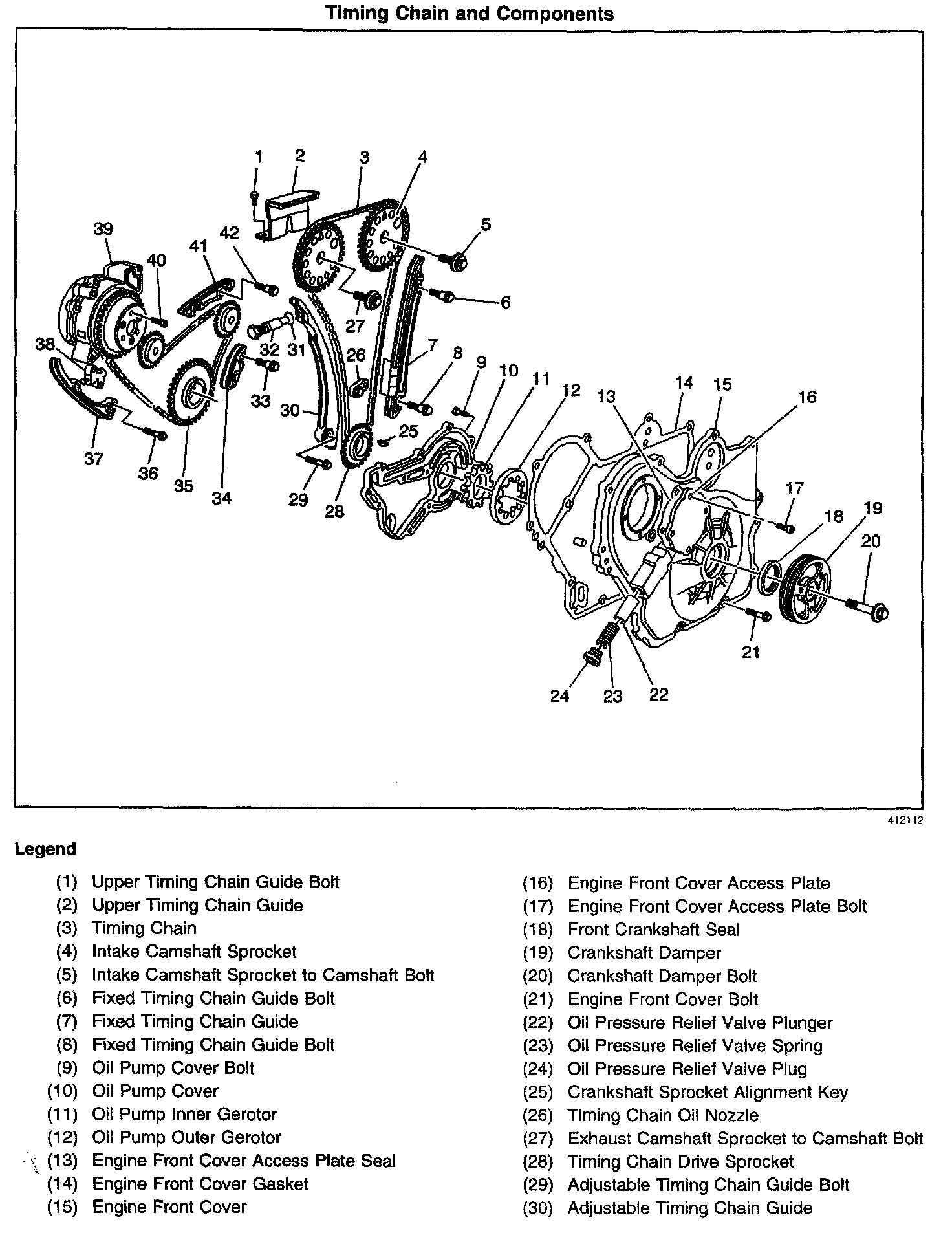

Timing Chain And Components:

Part 1 of 2

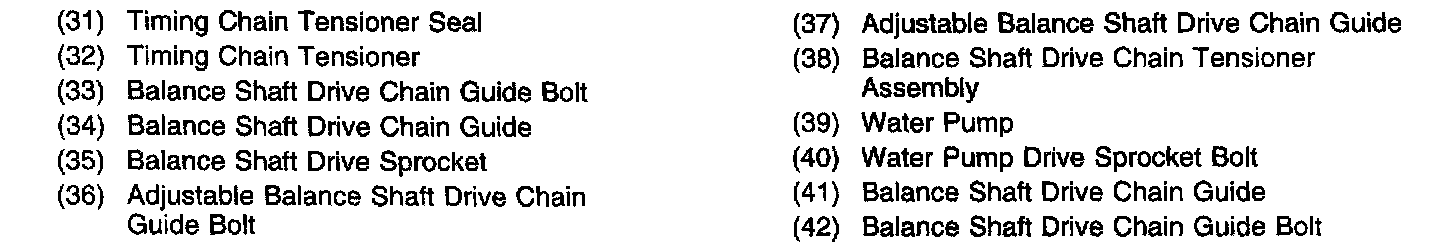

Timing Chain And Components Legend (cont'd):

Part 2 of 2
