Pontiac
>>
2003
>>
Sunfire L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

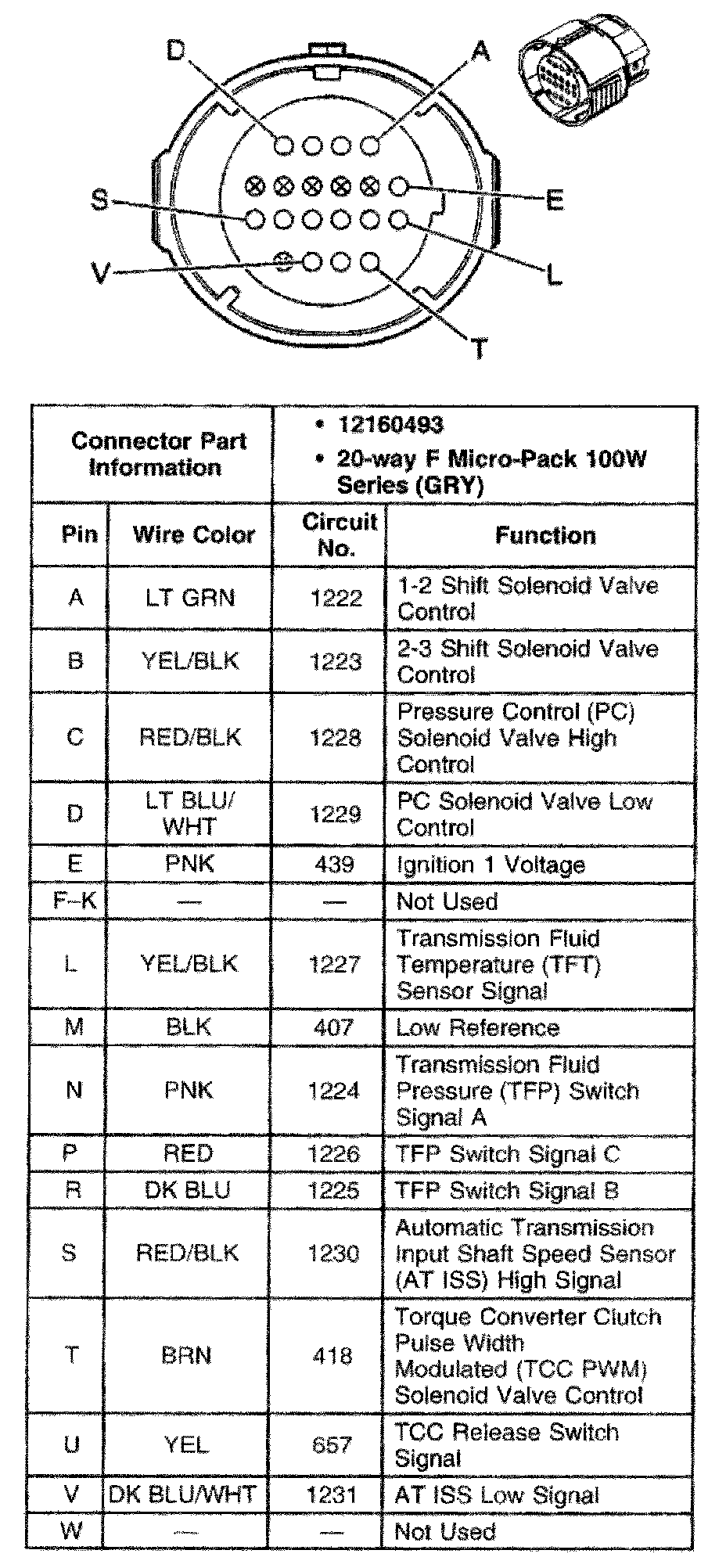

Automatic Transmission Inline 20-Way Connector End View (Engine Side):

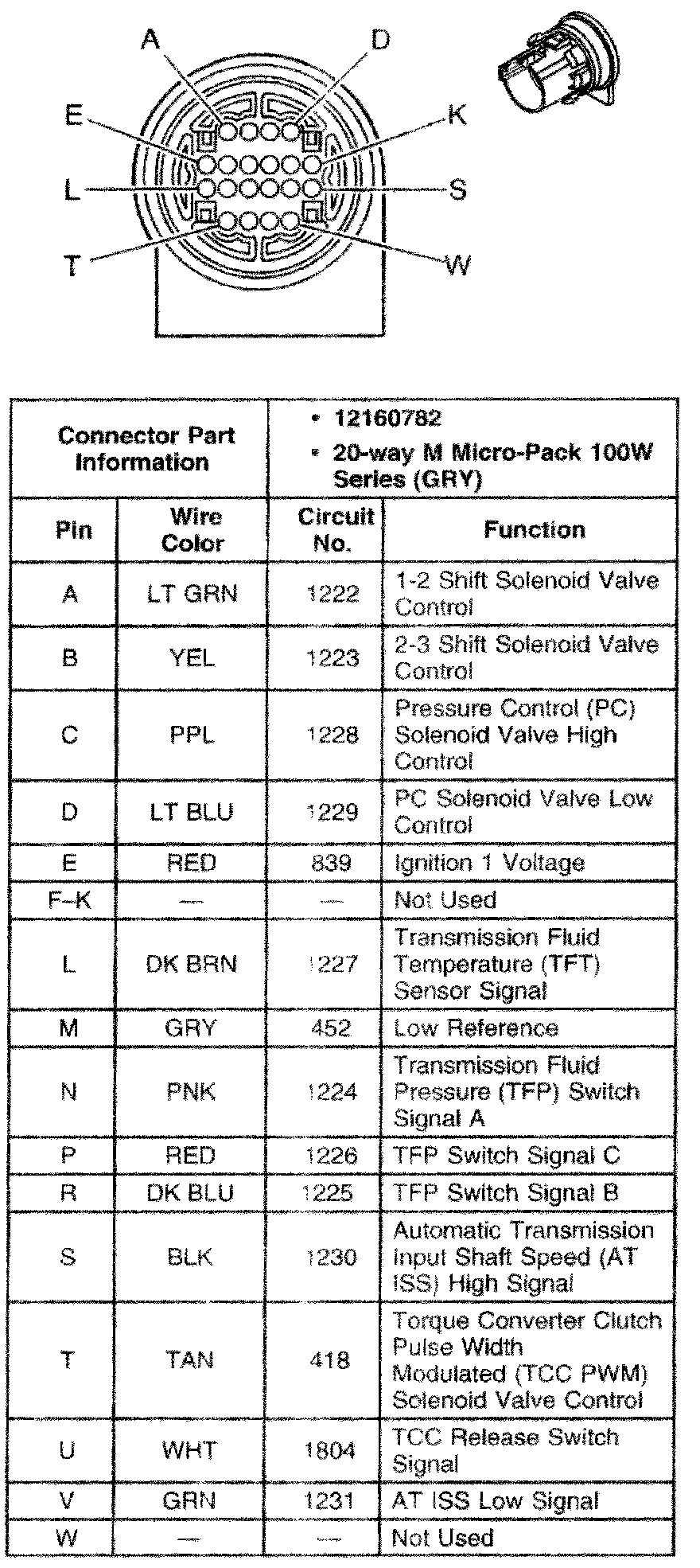

Automatic Transmission Inline 20-Way Connector End View (Transmission Side):
