Home >> Pontiac >> 2003 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Systems >> Body Control Module (BCM) C2

Body Control Module (BCM) C2

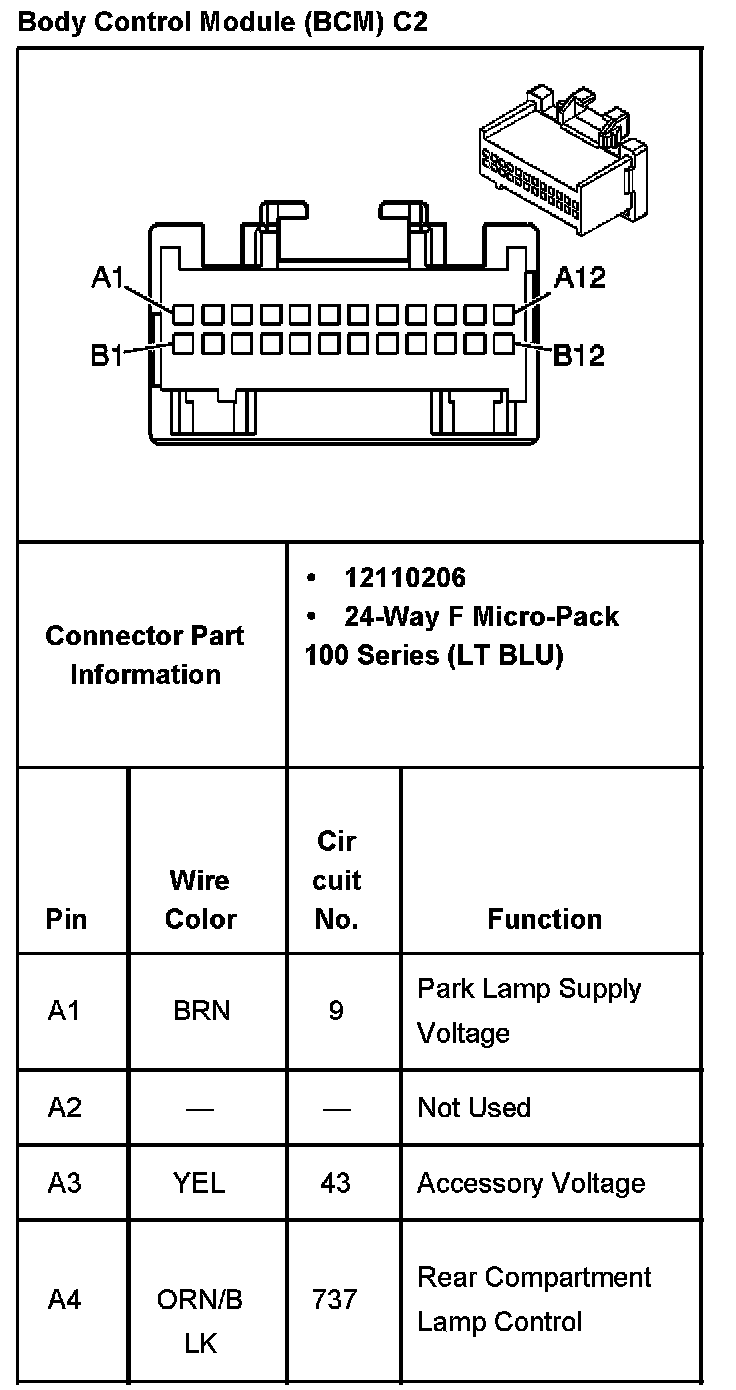

Body Control Module (BCM) C2 Part 1:

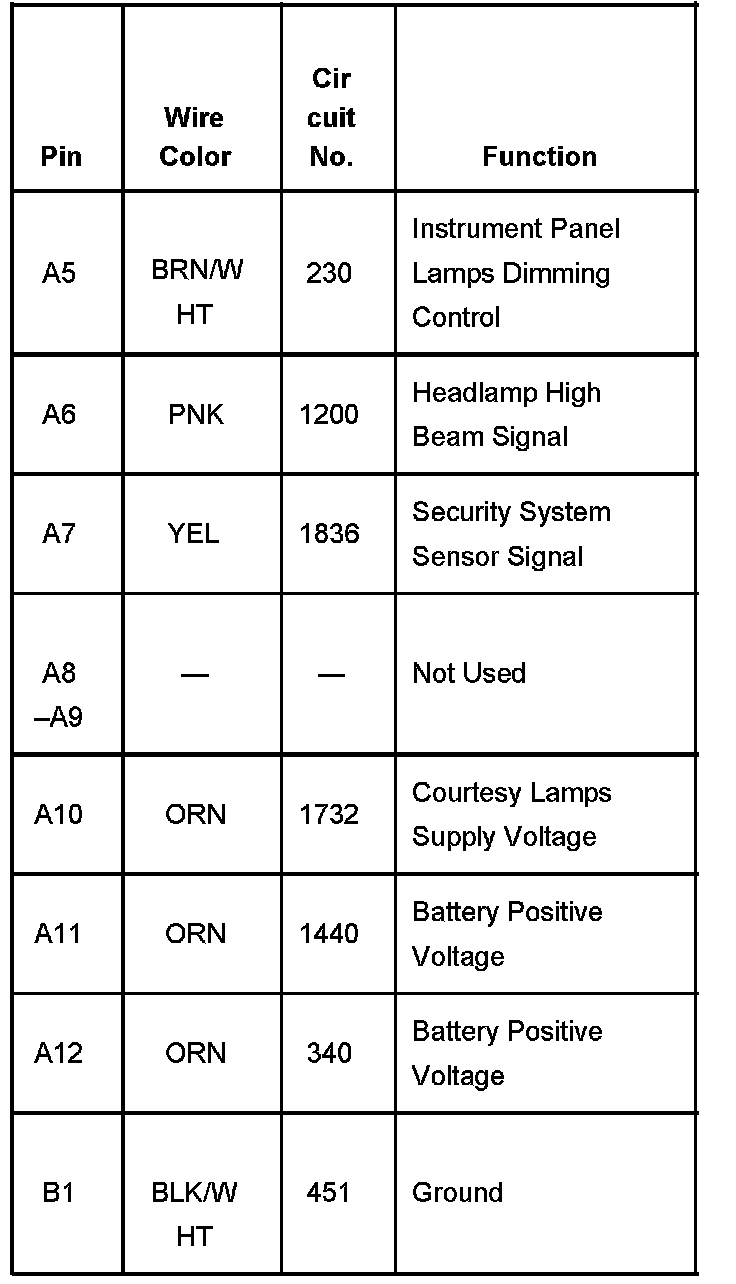

Body Control Module (BCM) C2 Part 2:

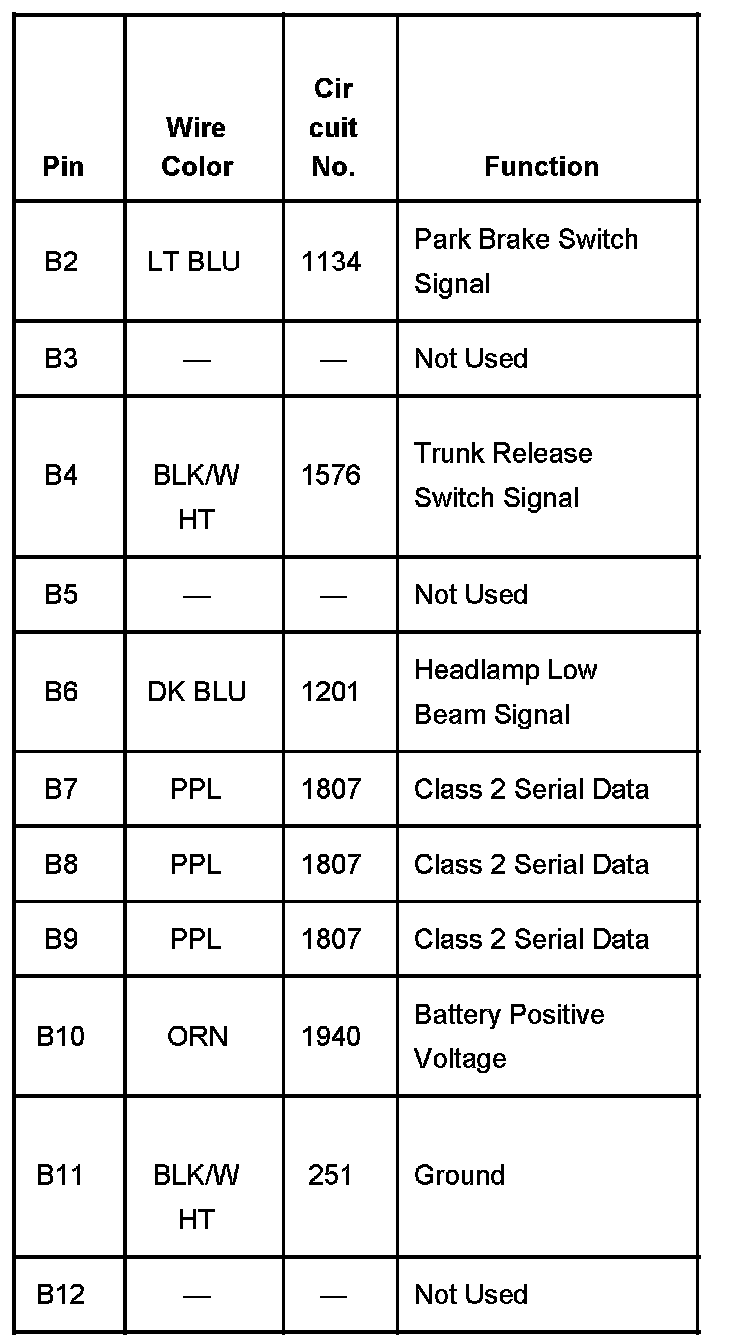

Body Control Module (BCM) C2 Part 3:
