Air Bag Control Module

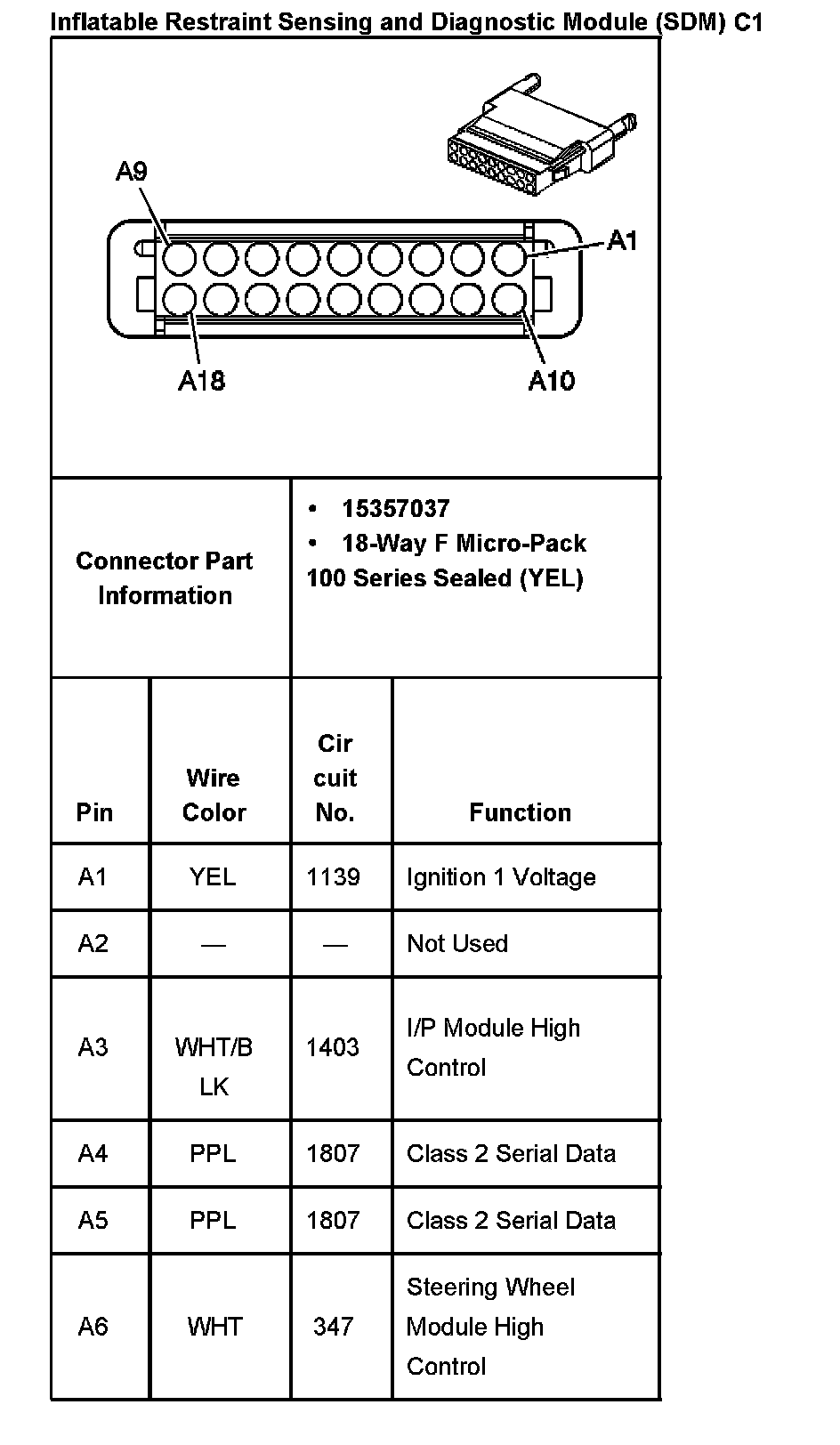

Inflatable Restraint Sensing And Diagnostic Module (SDM) C1 Part 1:

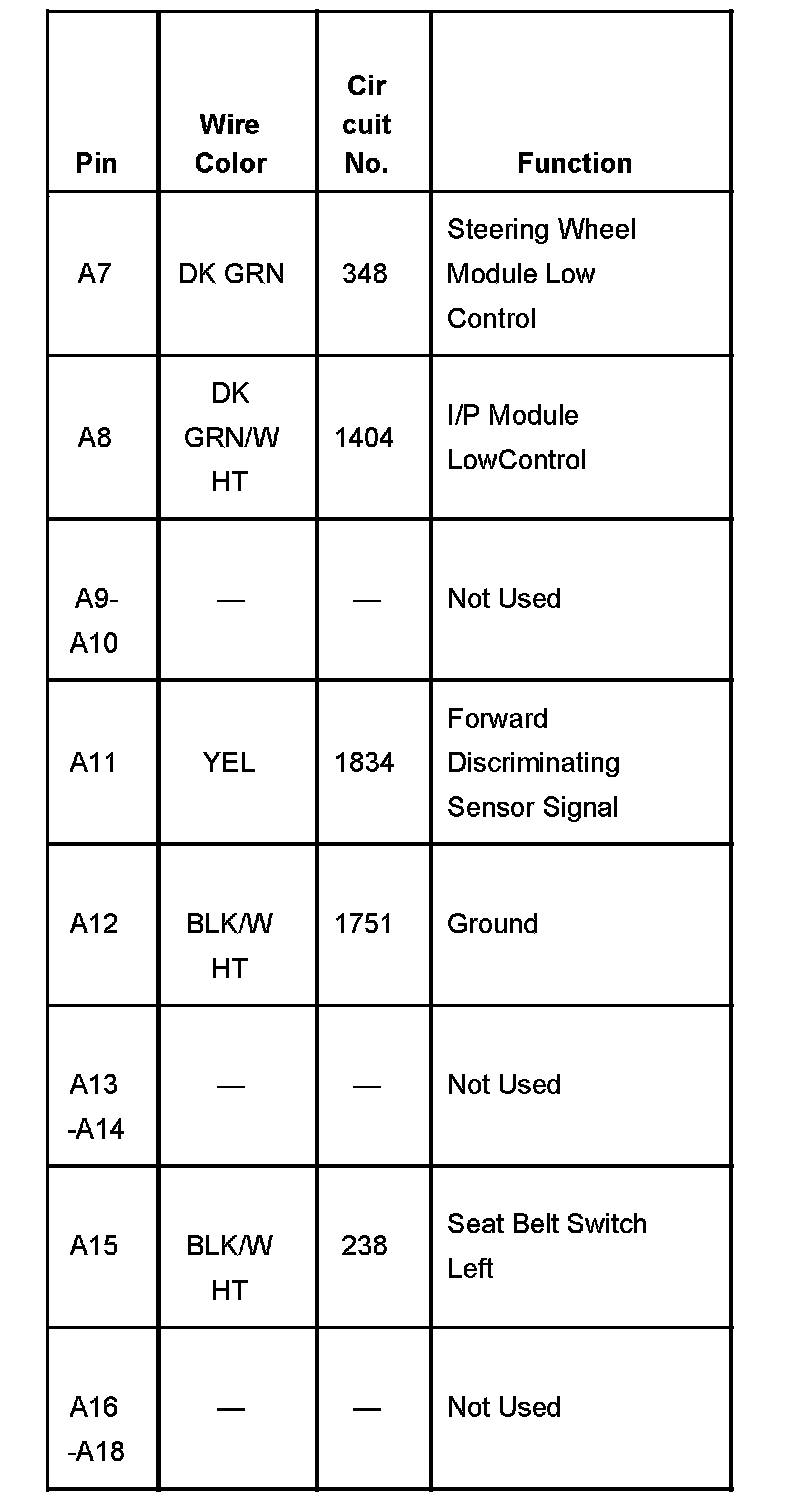

Inflatable Restraint Sensing And Diagnostic Module (SDM) C1 Part 2:

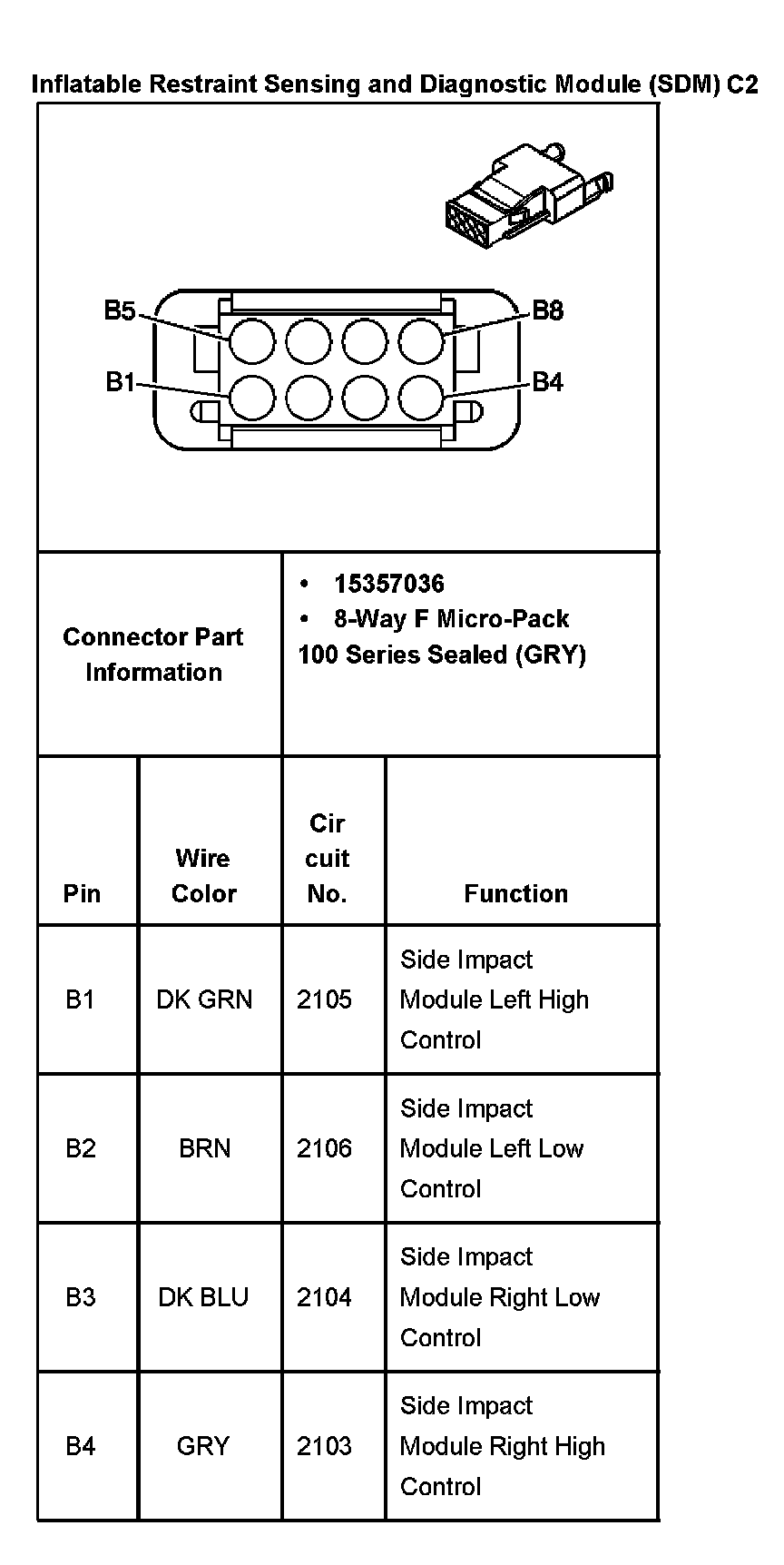

Inflatable Restraint Sensing And Diagnostic Module (SDM) C2 Part 1:

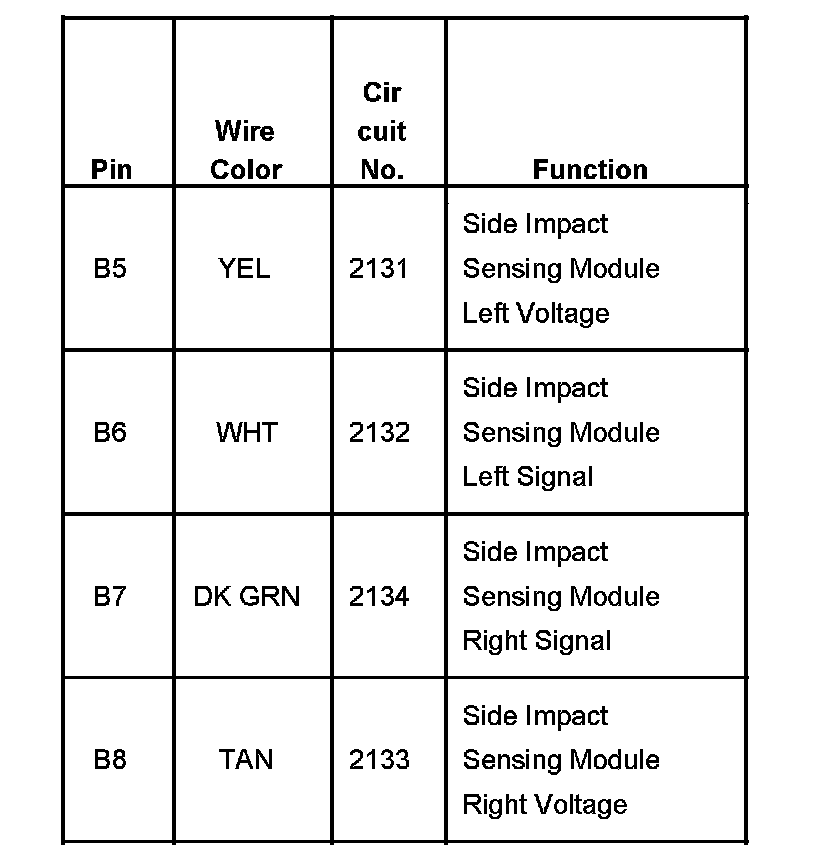

Inflatable Restraint Sensing And Diagnostic Module (SDM) C2 Part 2:
