Home >> Pontiac >> 2003 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C3

Body Control Module (BCM) C3

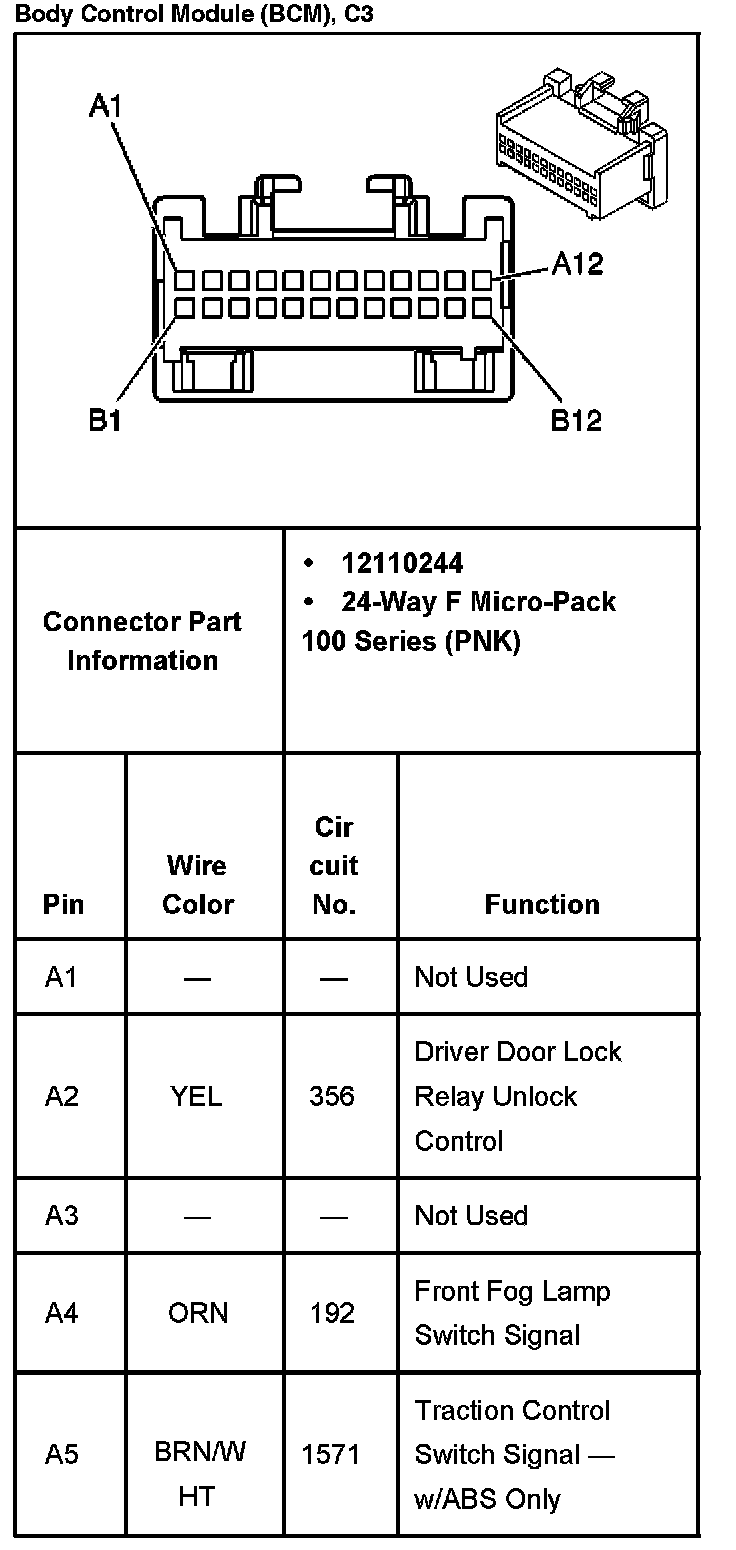

Body Control Module (BCM), C3 Part 1:

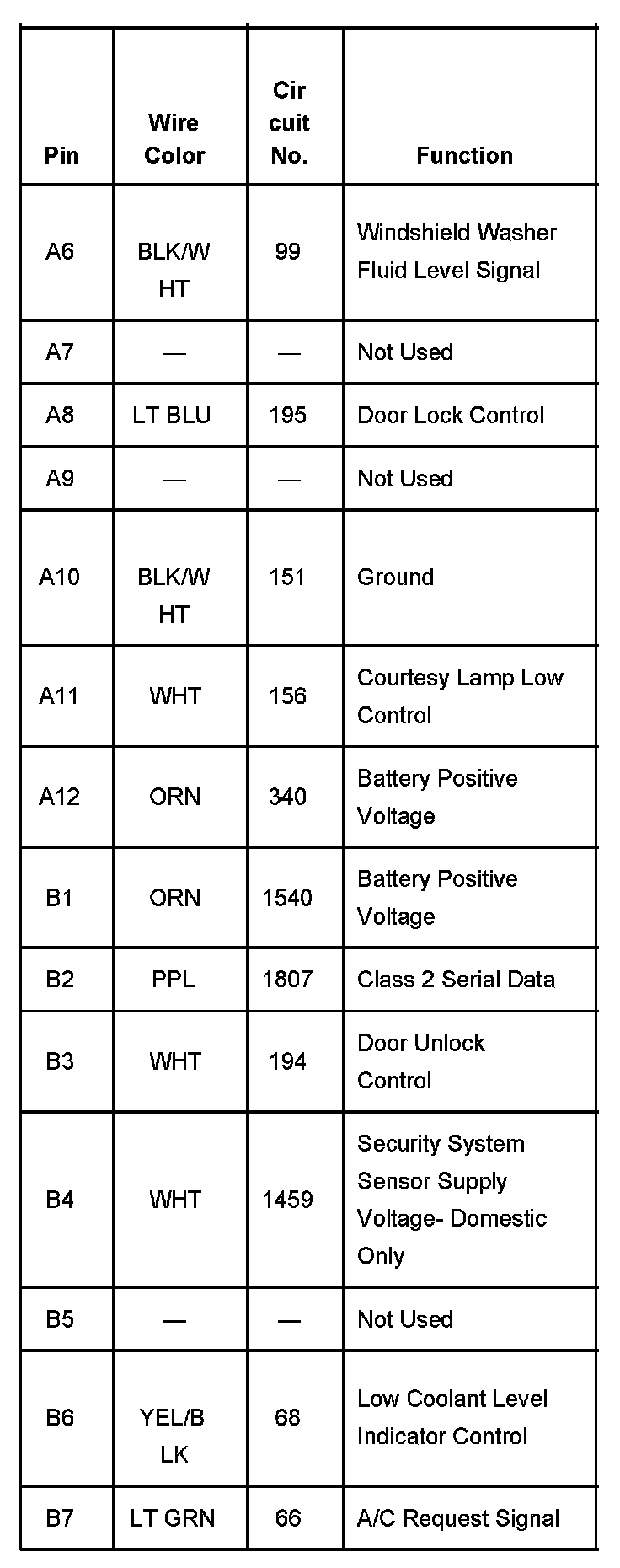

Body Control Module (BCM), C3 Part 2:

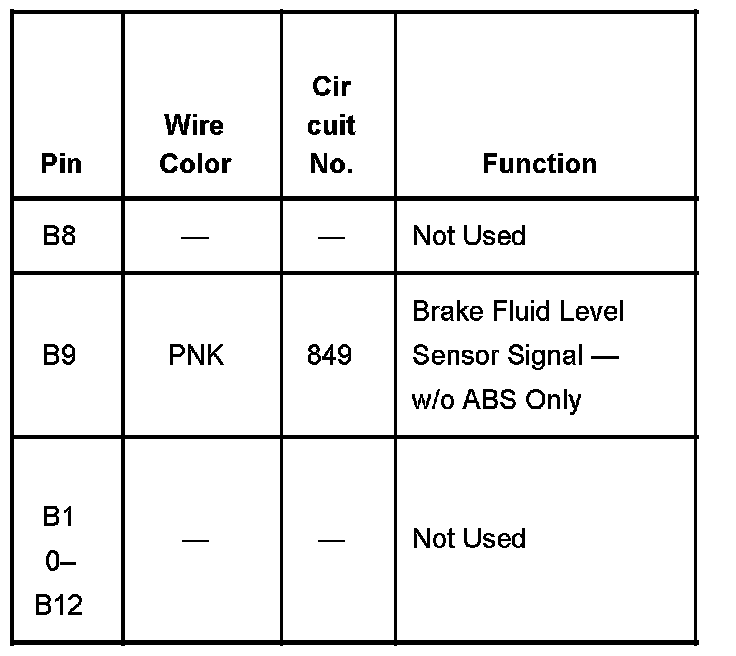

Body Control Module (BCM), C3 Part 3:
