Fastener Tightening Specifications

The cylinder head torque specification in this article has been updated with information from the GM Service Information website

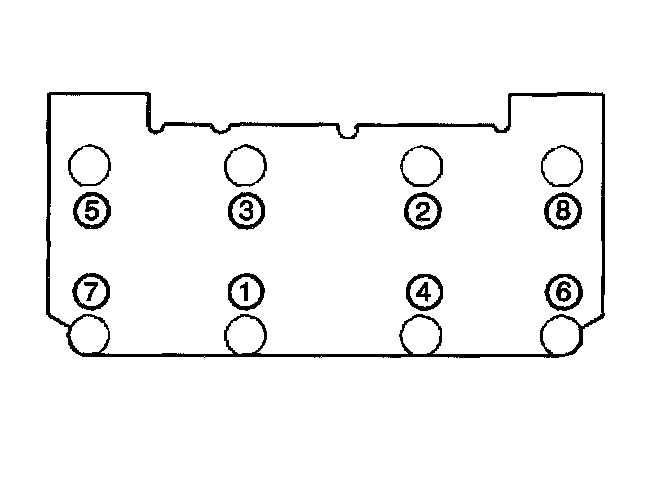

- Tighten the cylinder head bolts in sequence to 60 Nm (44 lb ft).
- Turn the bolts an additional 95 degrees using the J 36660-A.
