Transmission Position Sensor/Switch: Diagrams

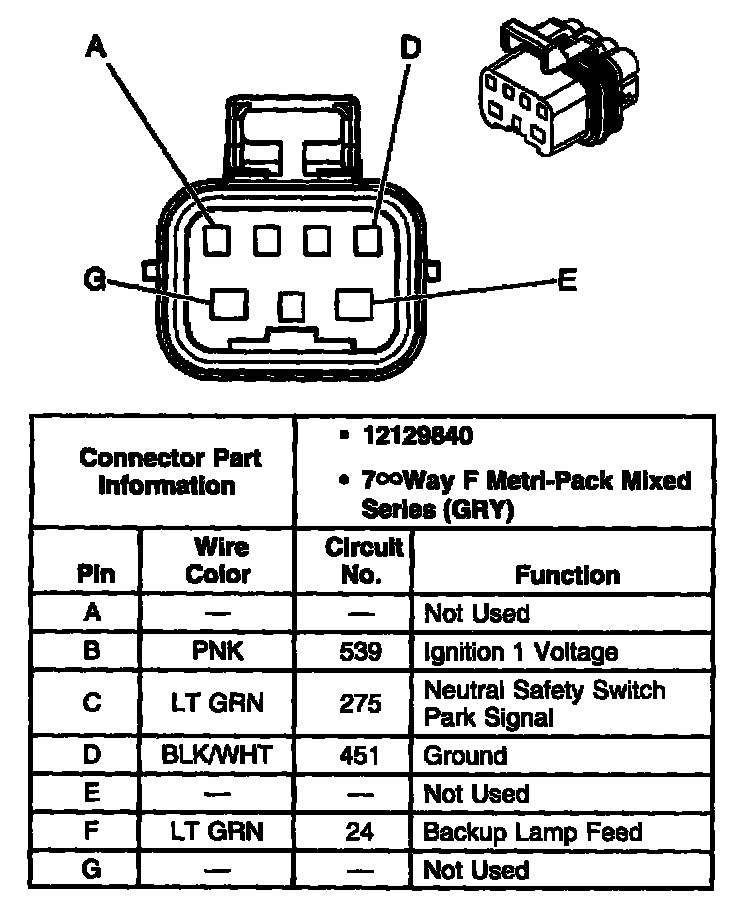

Transmission Range Switch C1 Connector, Wiring Harness Side:
