Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

Oil Pressure Sensor: Locations

Locations View:



Locations View:

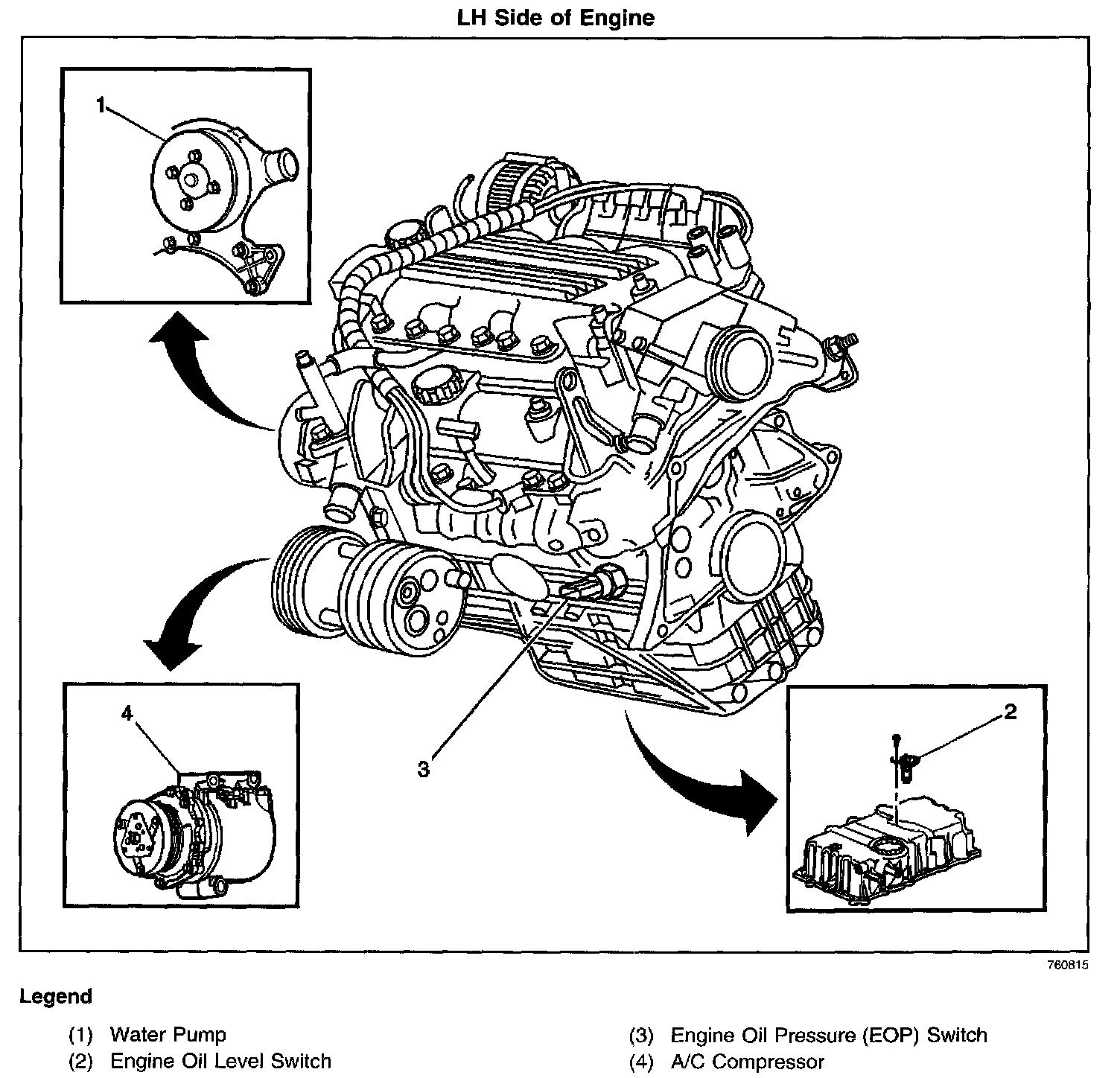

LH Side Of Engine:

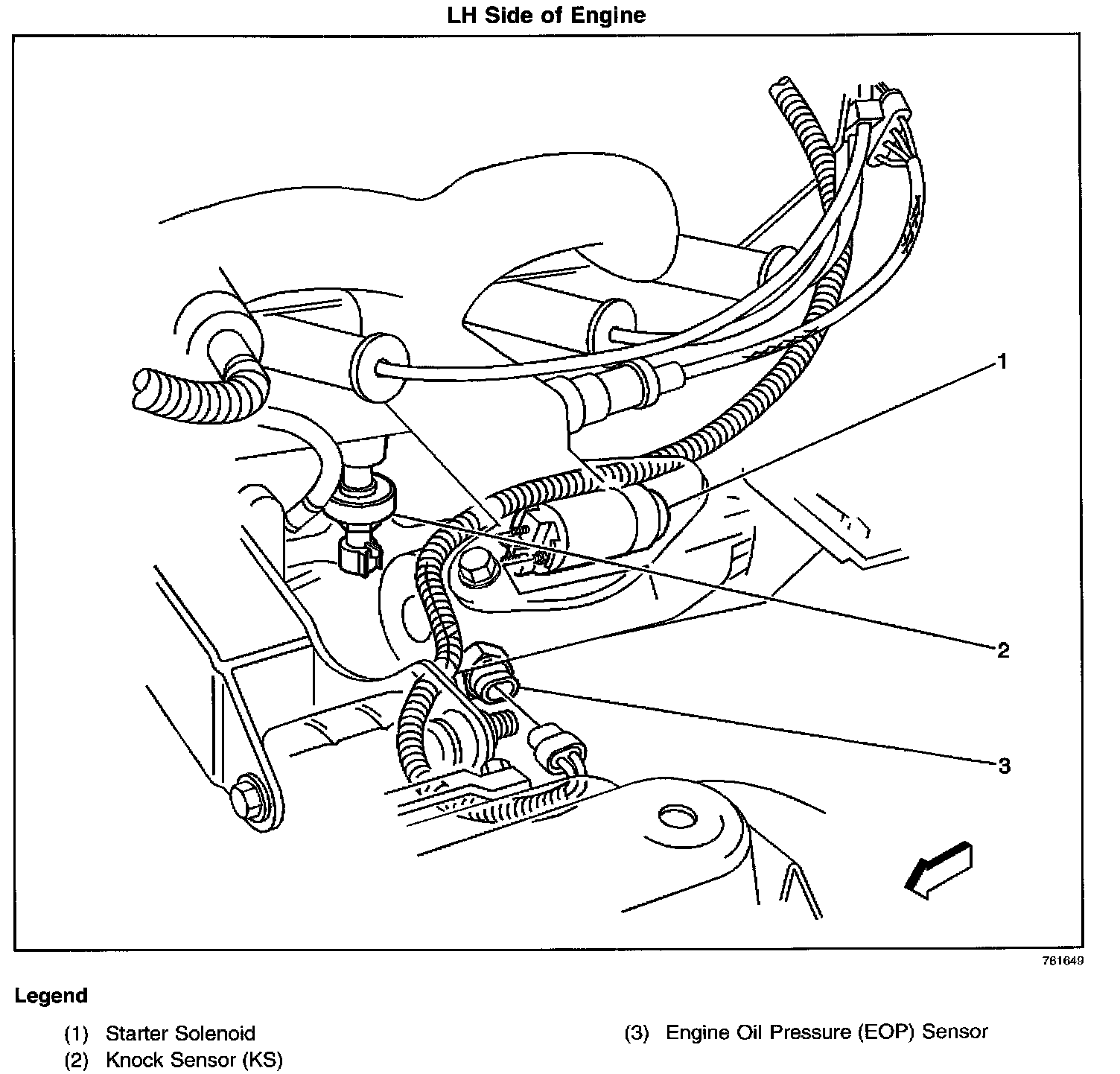

LH Side Of Engine:

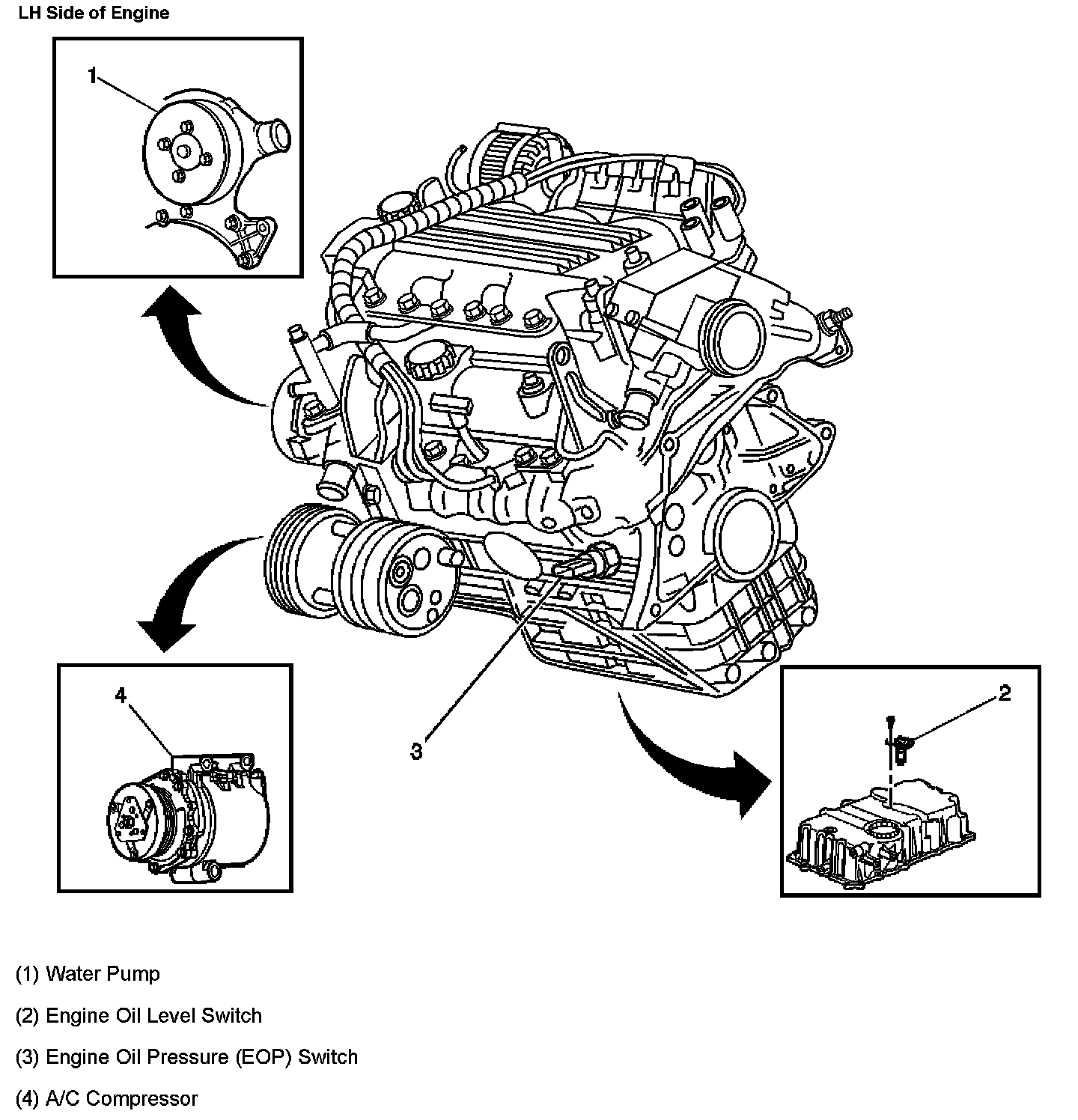

LH Side Of Engine:
