Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

SP205 - SP409:

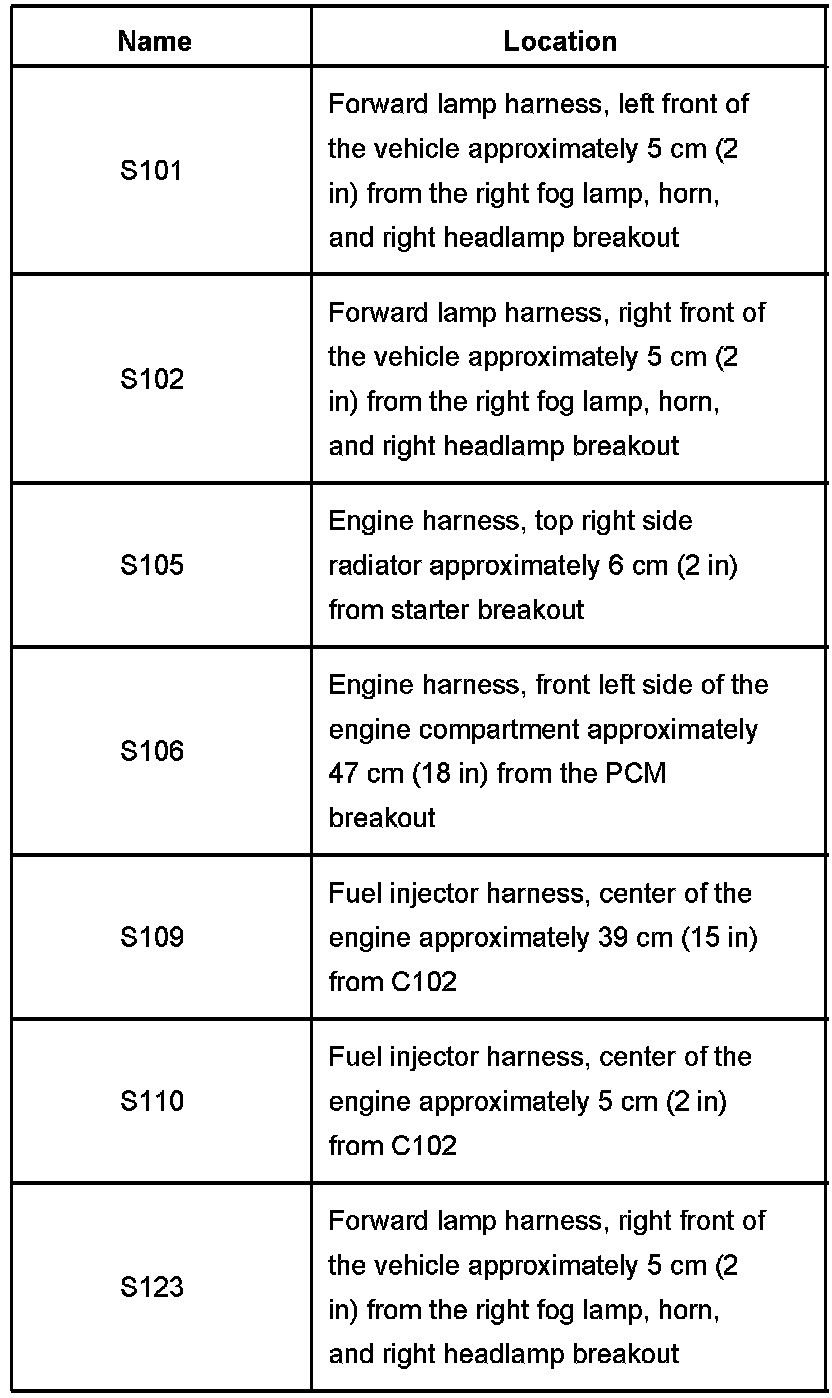

S101 - S123:

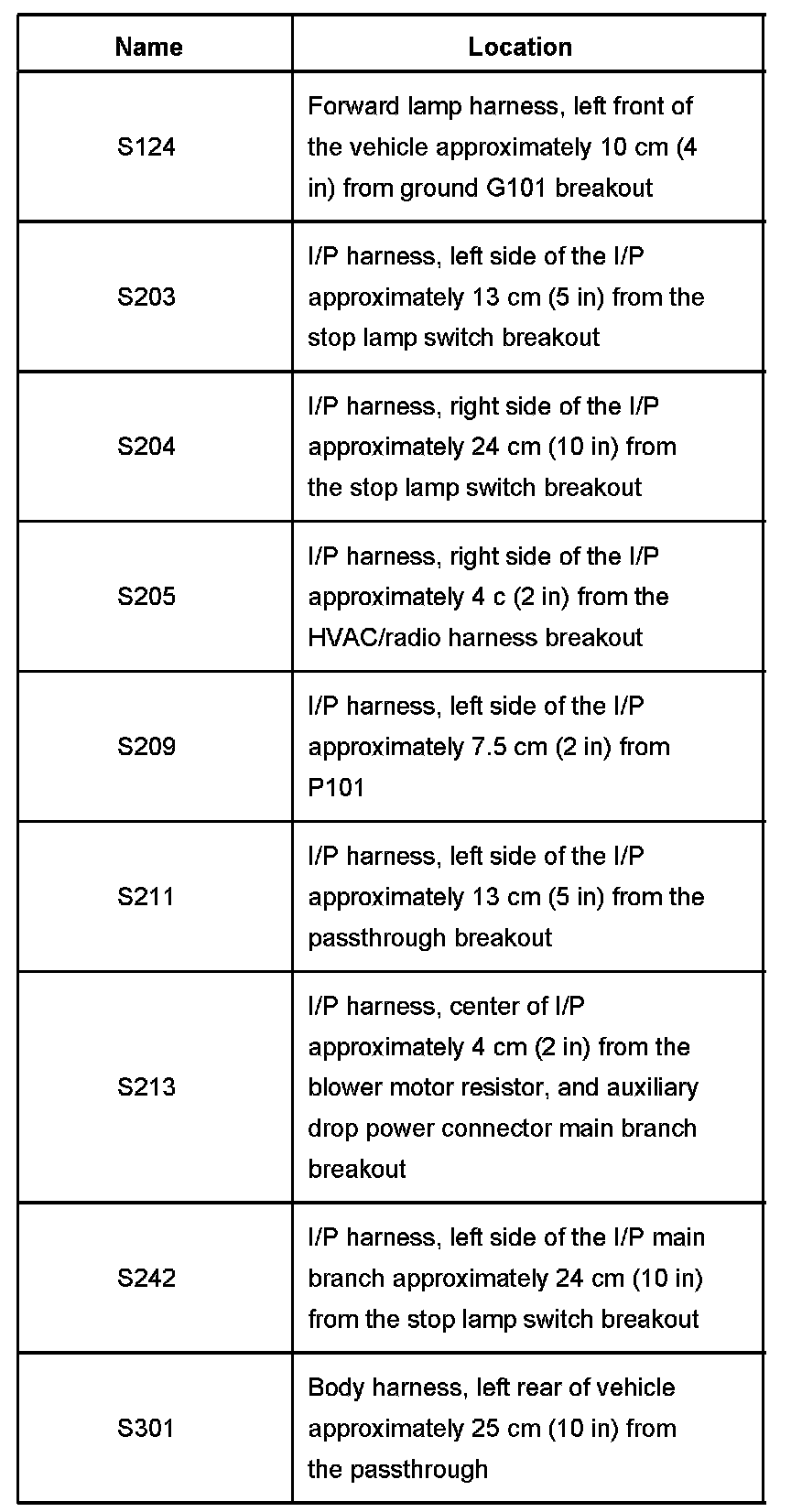

S124 - S301:

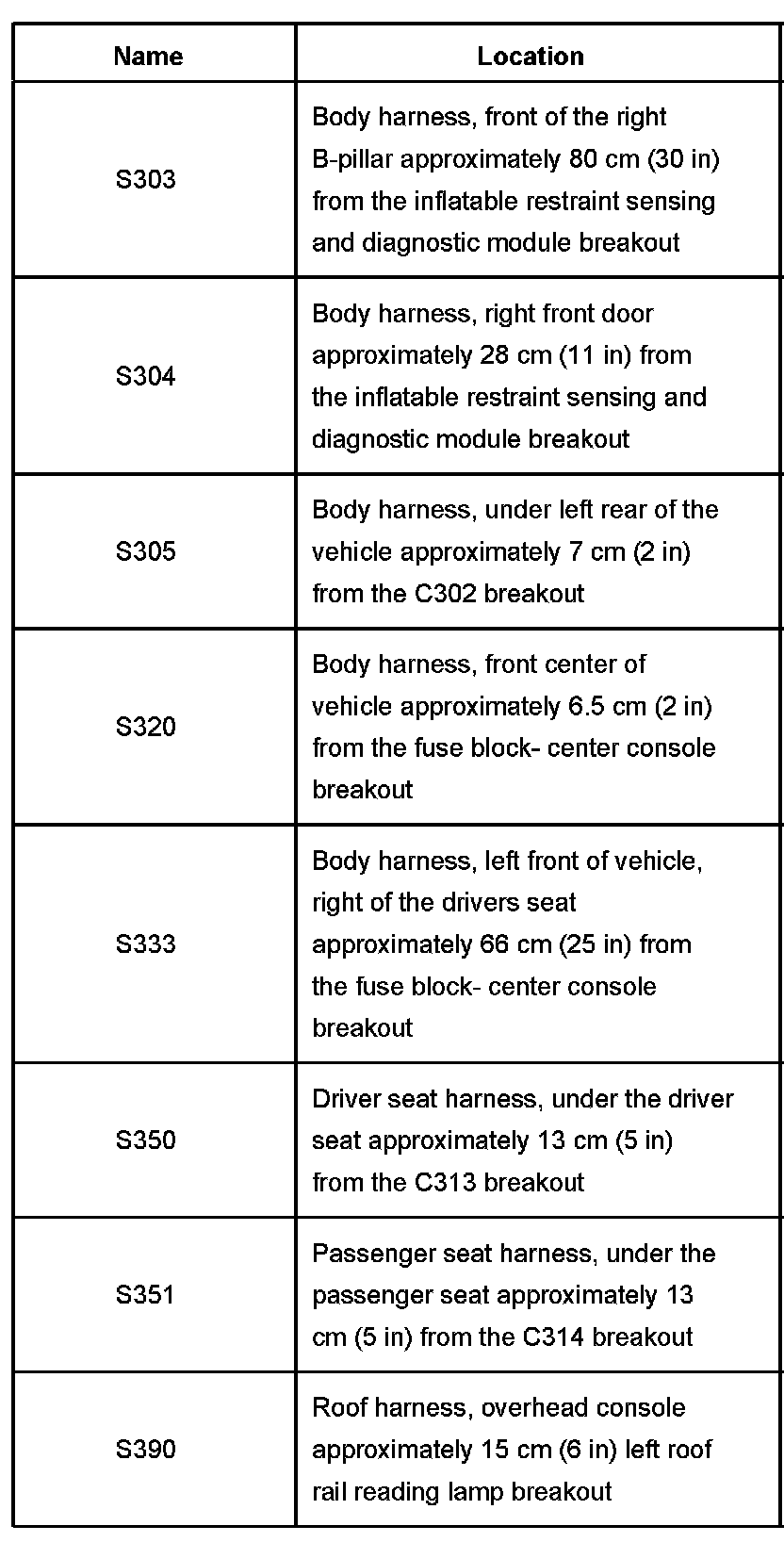

S303 - S390:

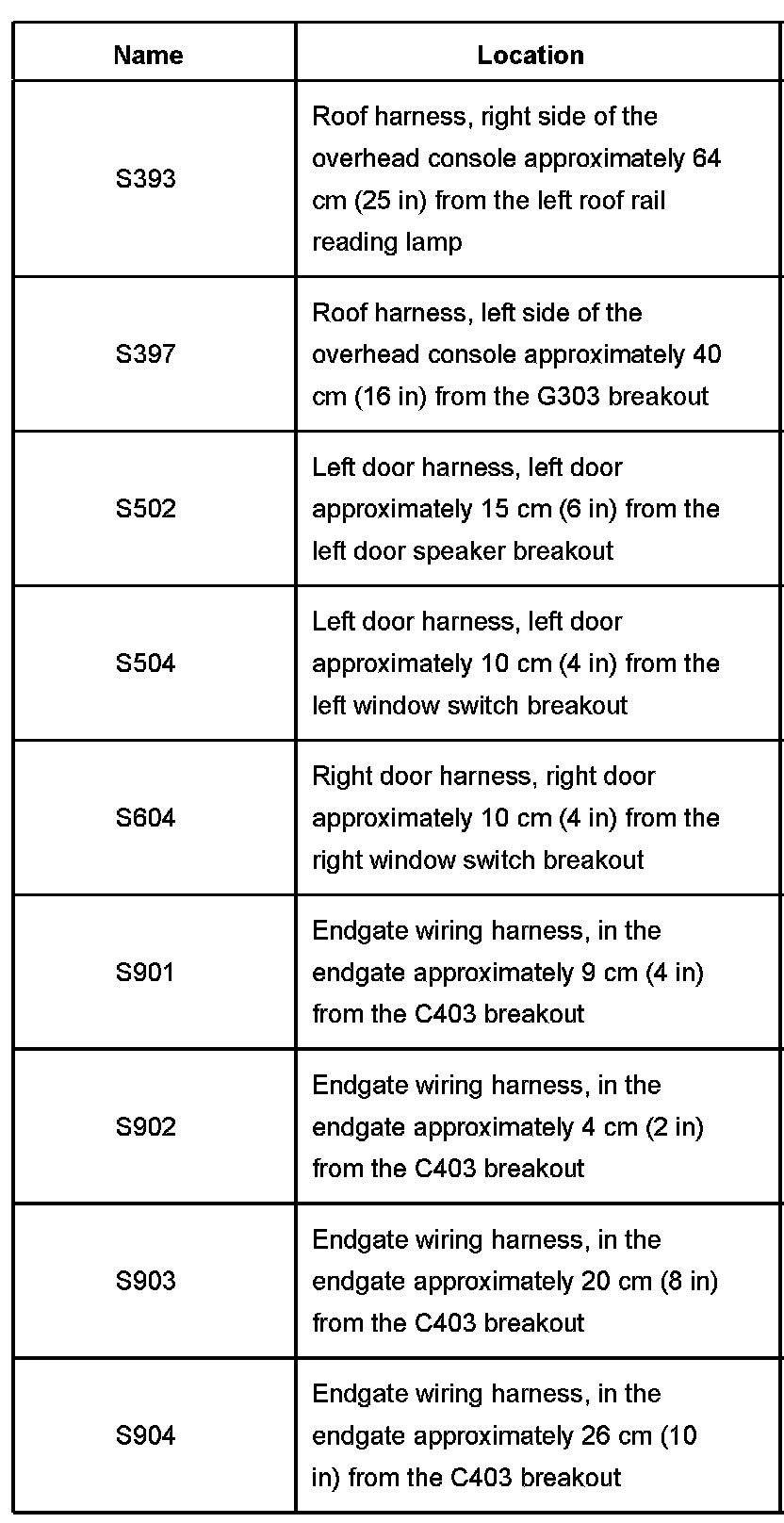

S393 - S904:

S905 - S907:
