Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Components

Internal Components

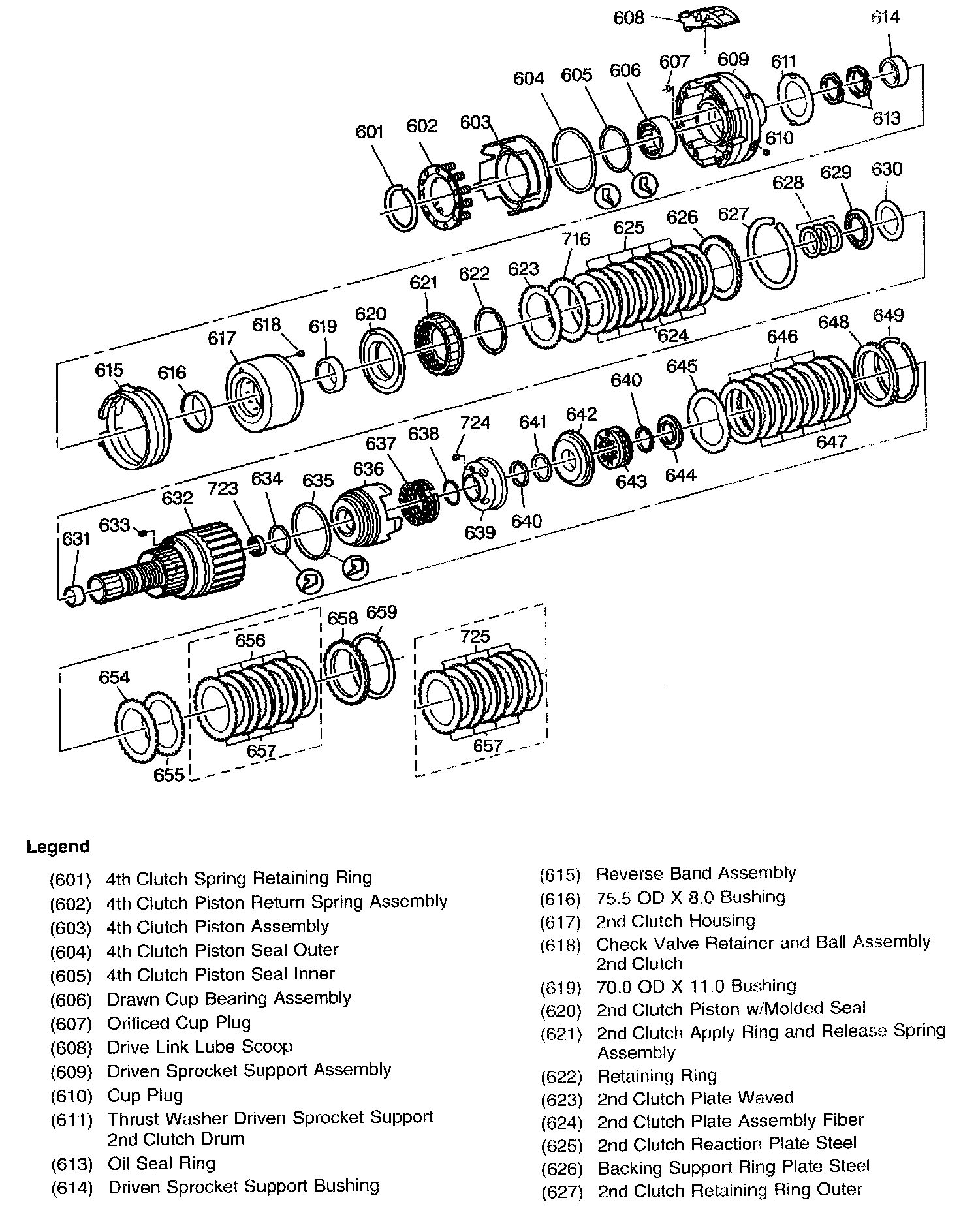

Internal Components Part 1 Of 4:

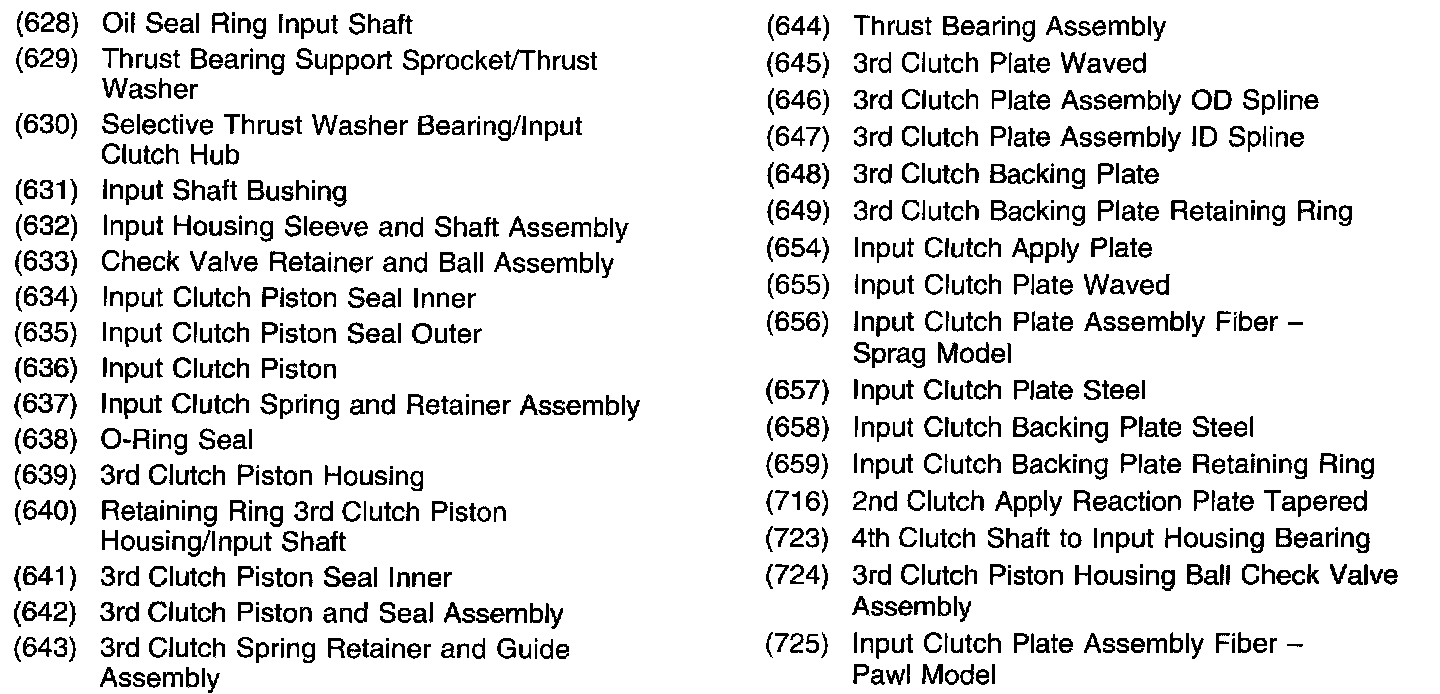

Internal Components Part 2 Of 4:

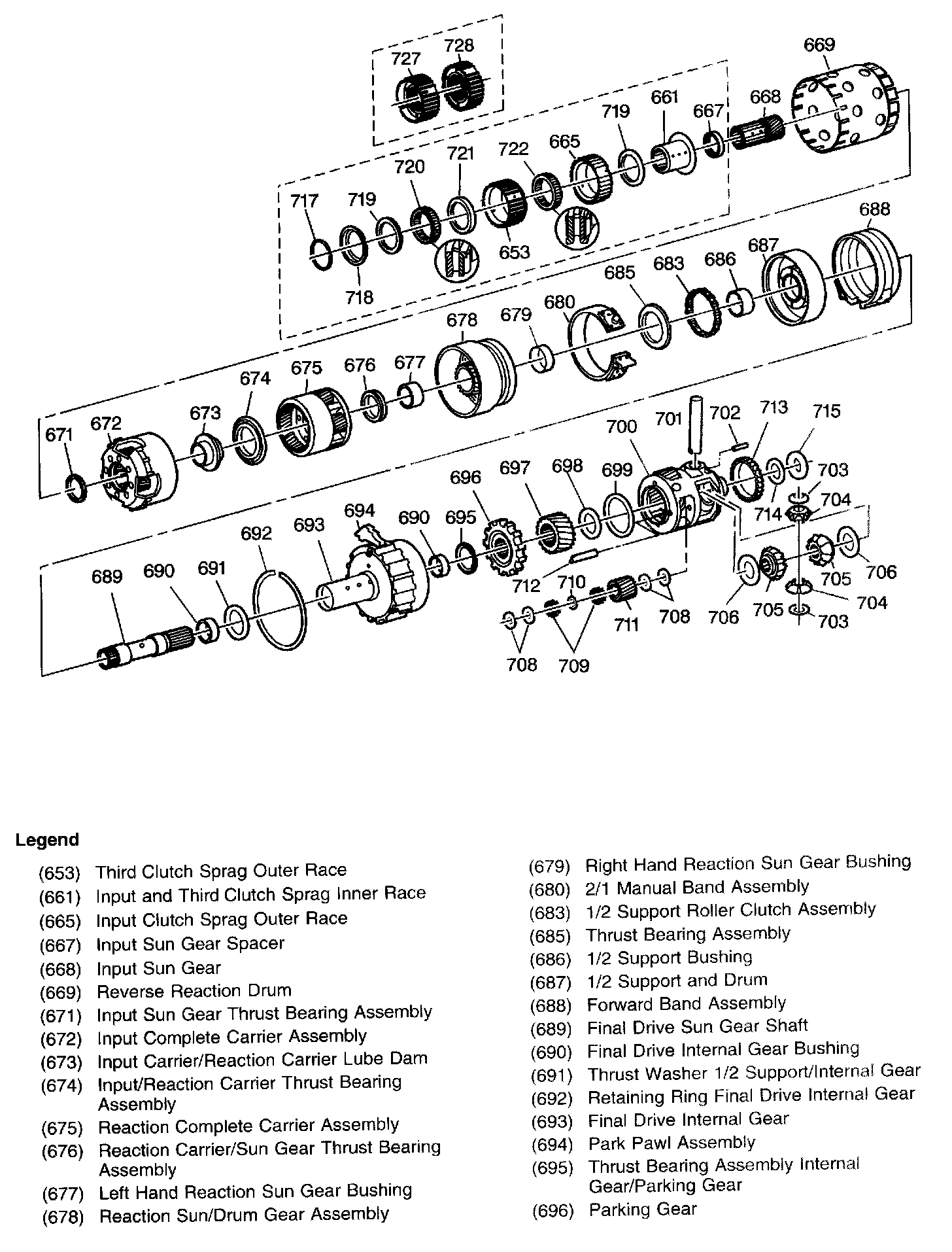

Internal Components Part 3 Of 4:

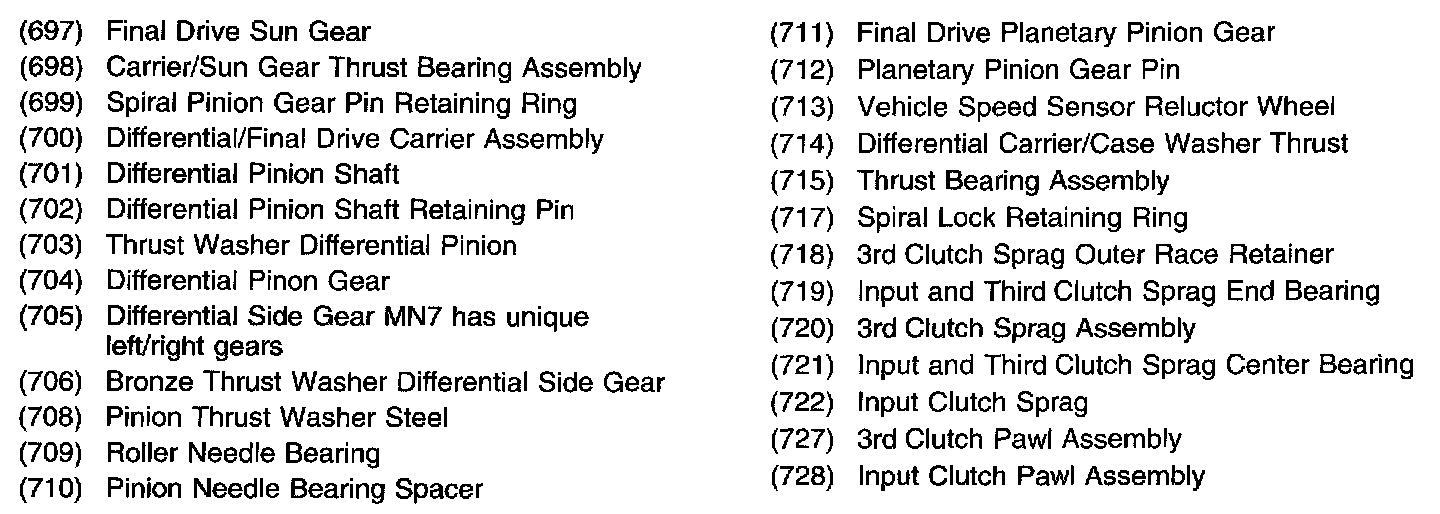

Internal Components Part 4 Of 4:
