Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) Connector C1

Powertrain Control Module (PCM) Connector C1

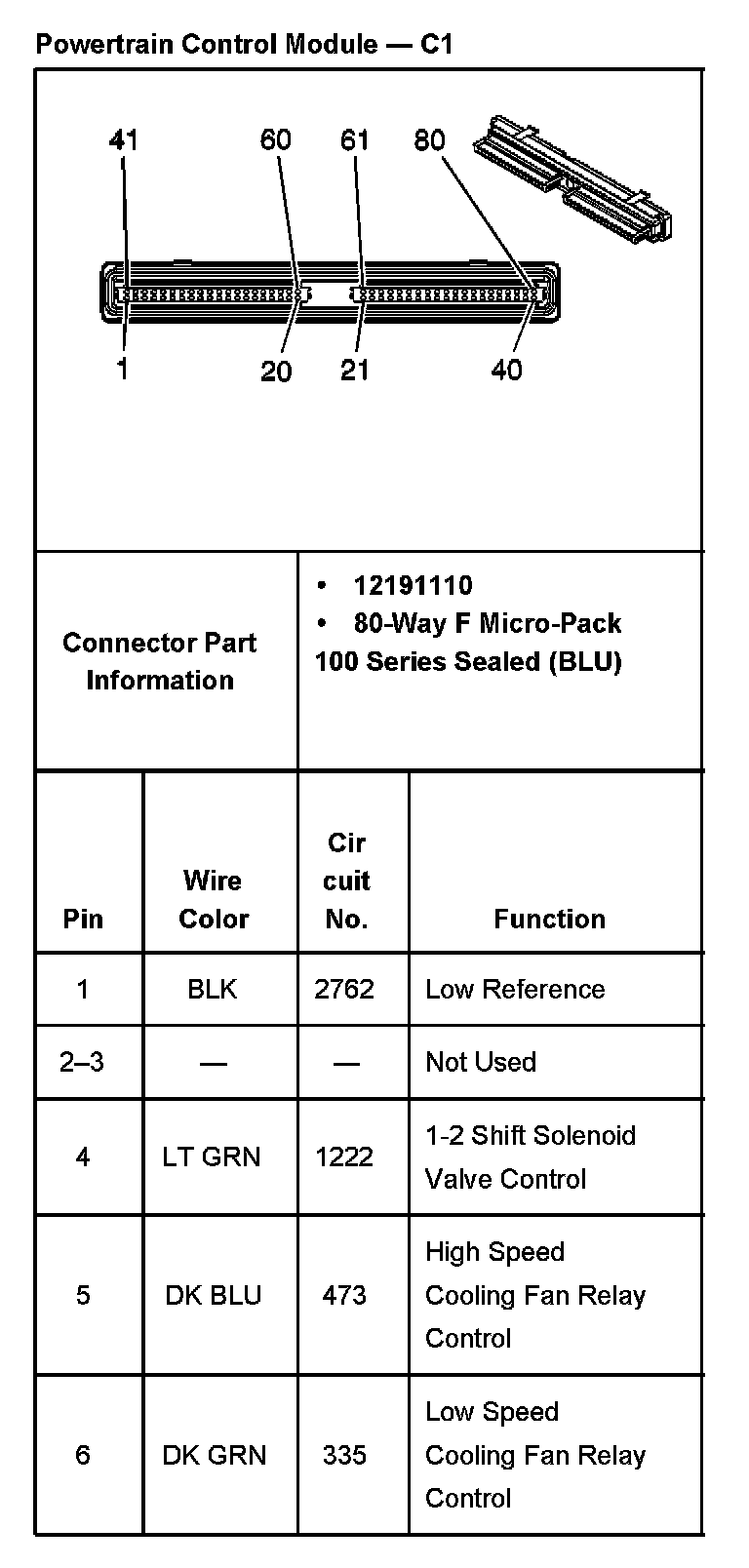

Powertrain Control Module - C1 Part 1:

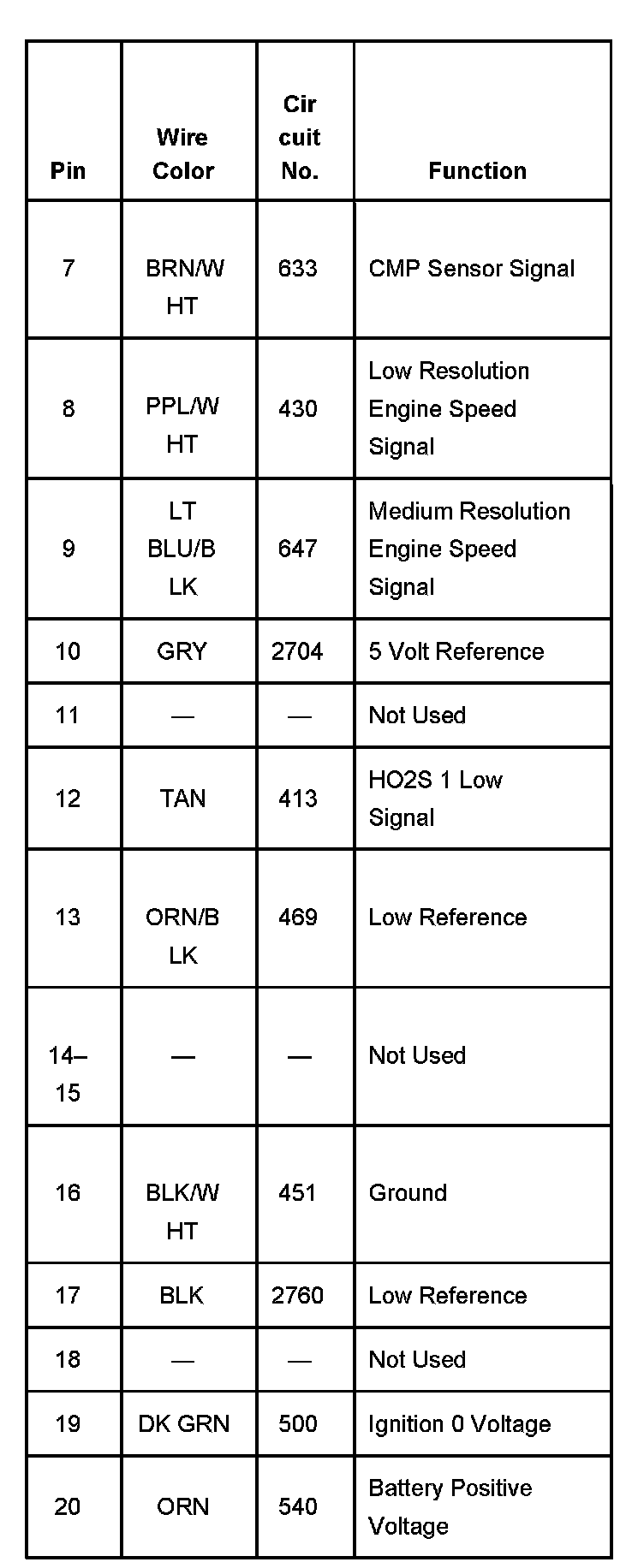

Powertrain Control Module - C1 Part 2:

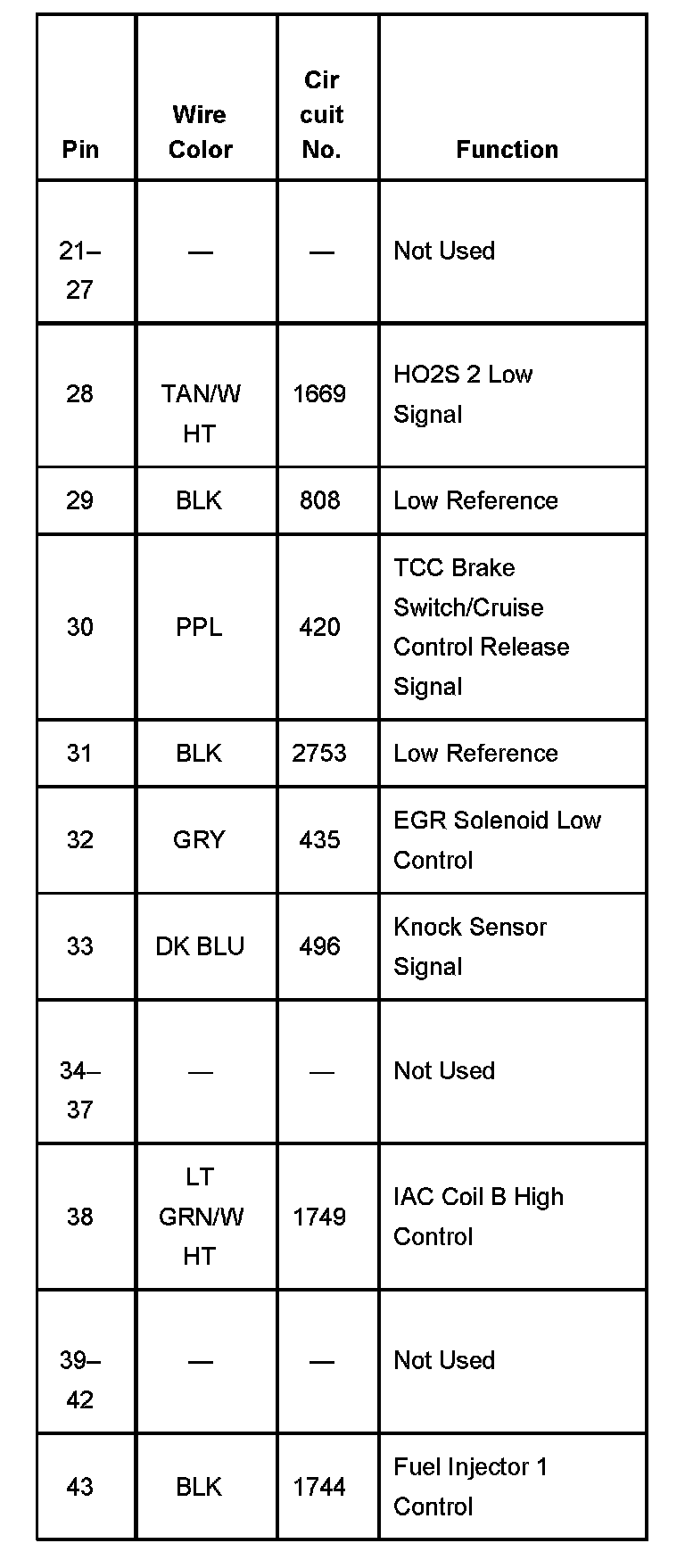

Powertrain Control Module - C1 Part 3:

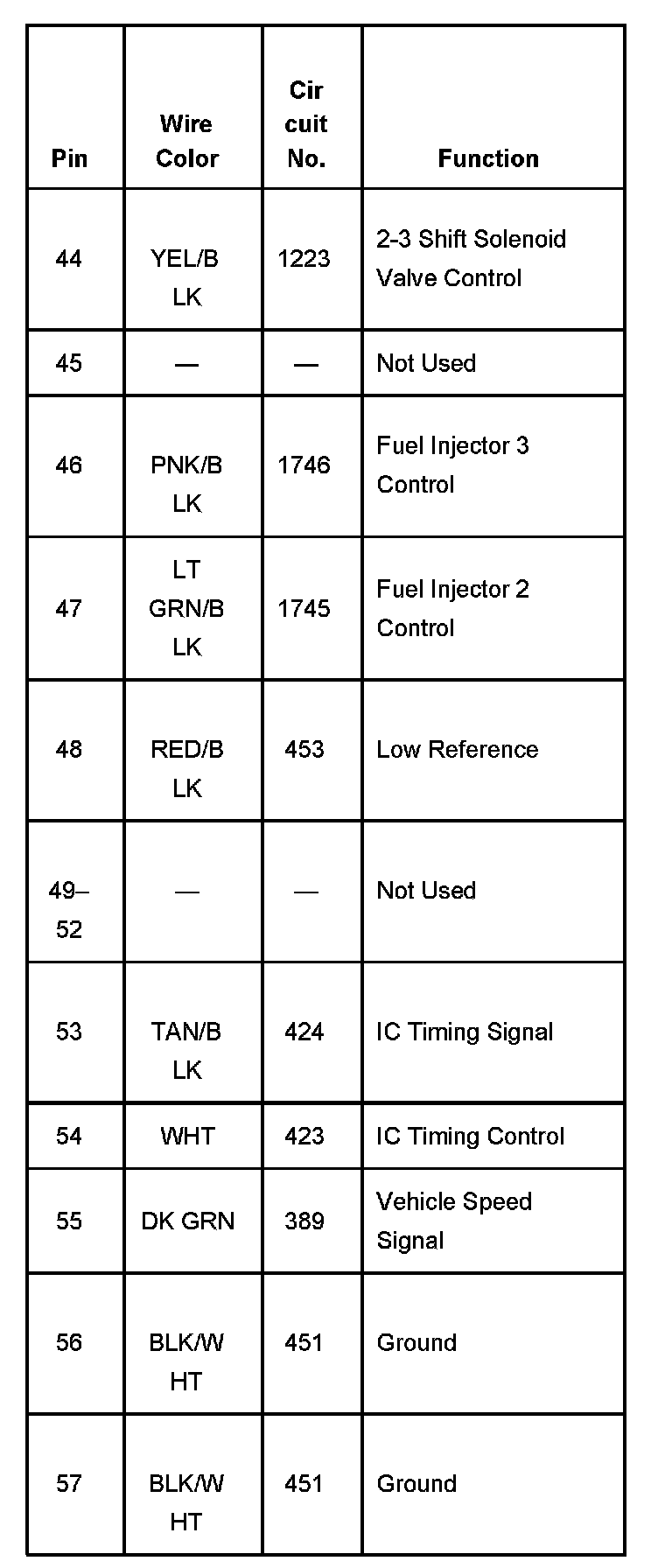

Powertrain Control Module - C1 Part 4:

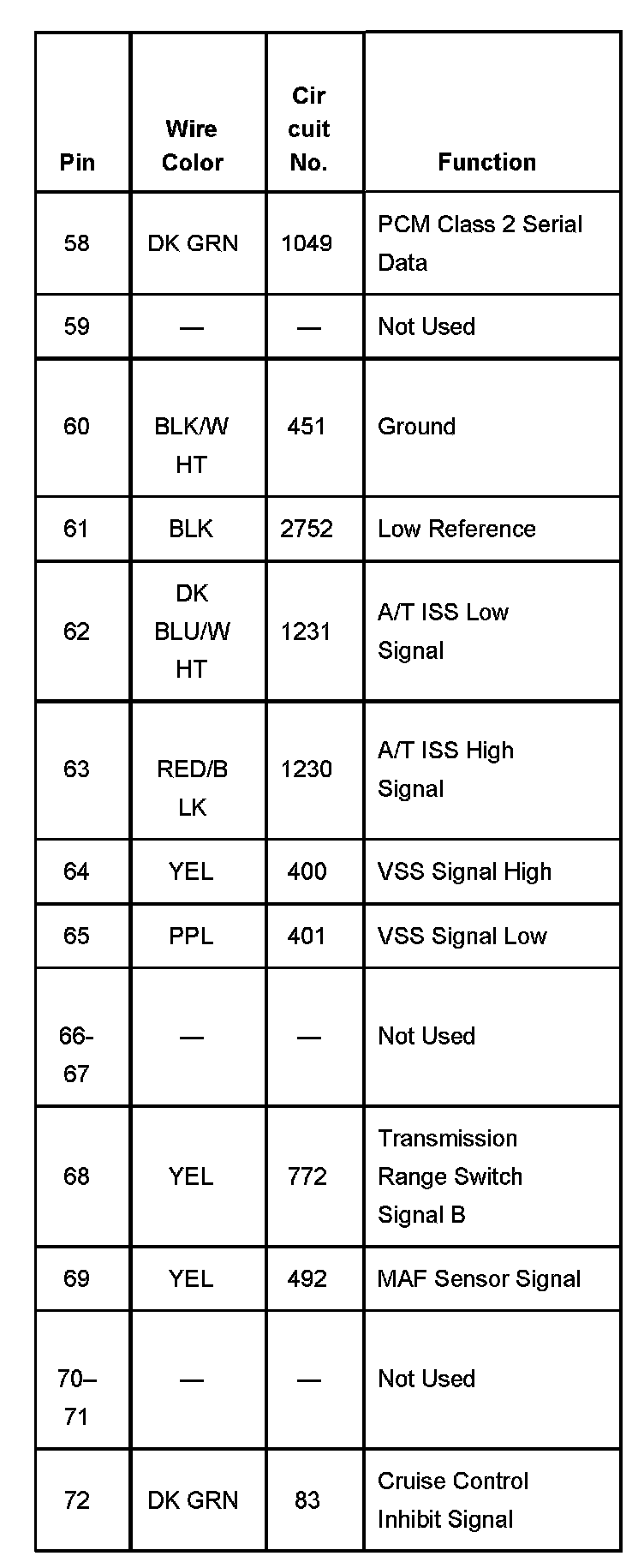

Powertrain Control Module - C1 Part 5:

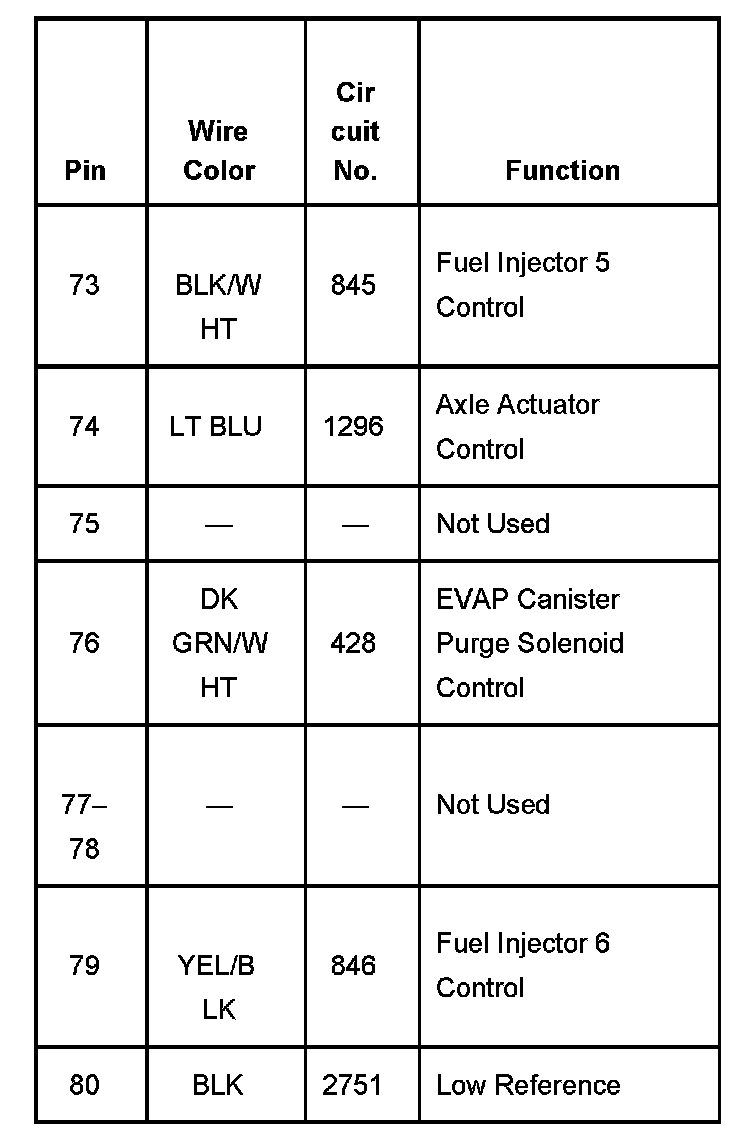

Powertrain Control Module - C1 Part 6:
