Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

Body Control Module (BCM) C1

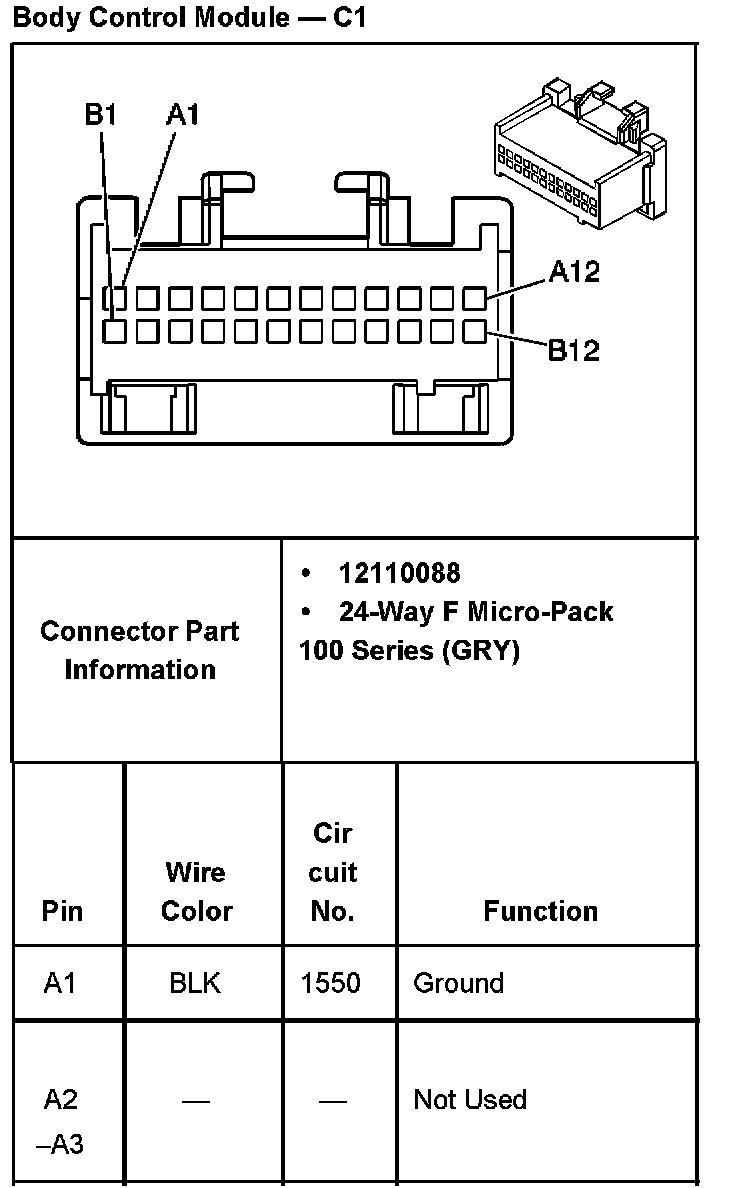

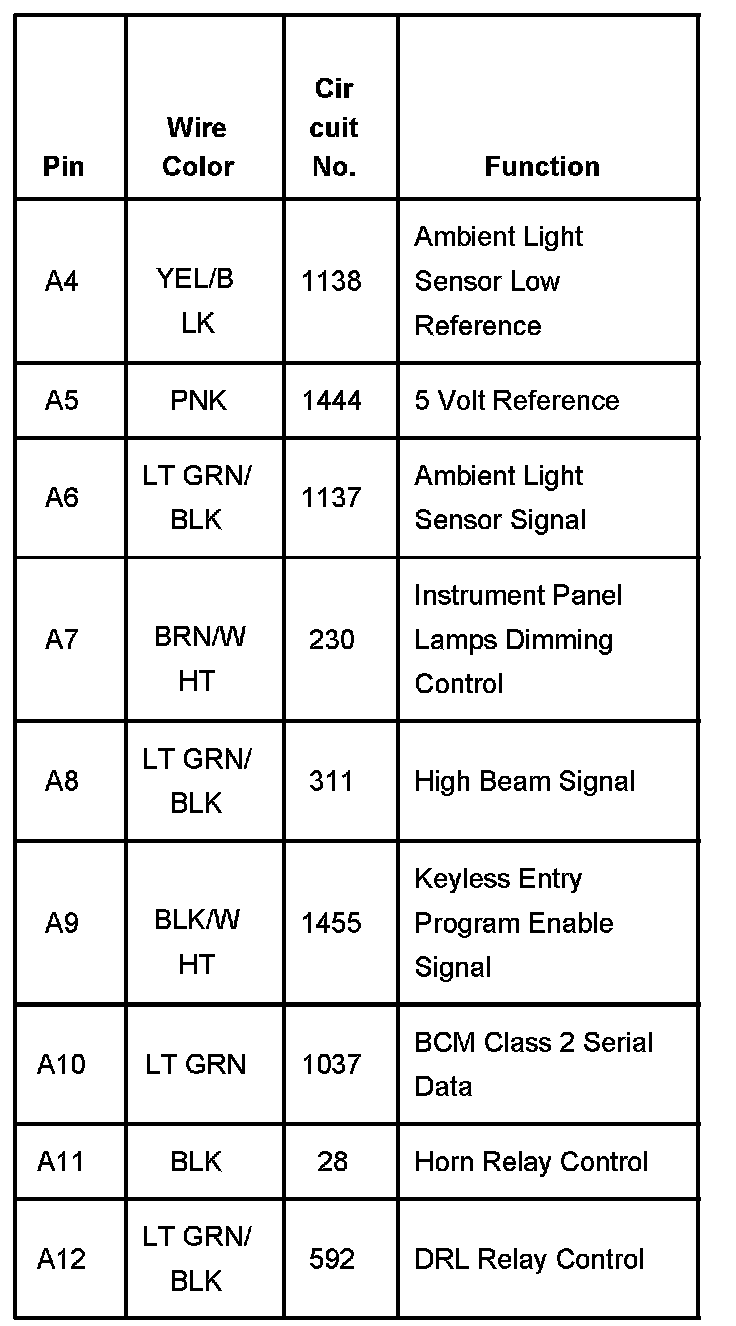

Body Control Module - C1 Part 1:

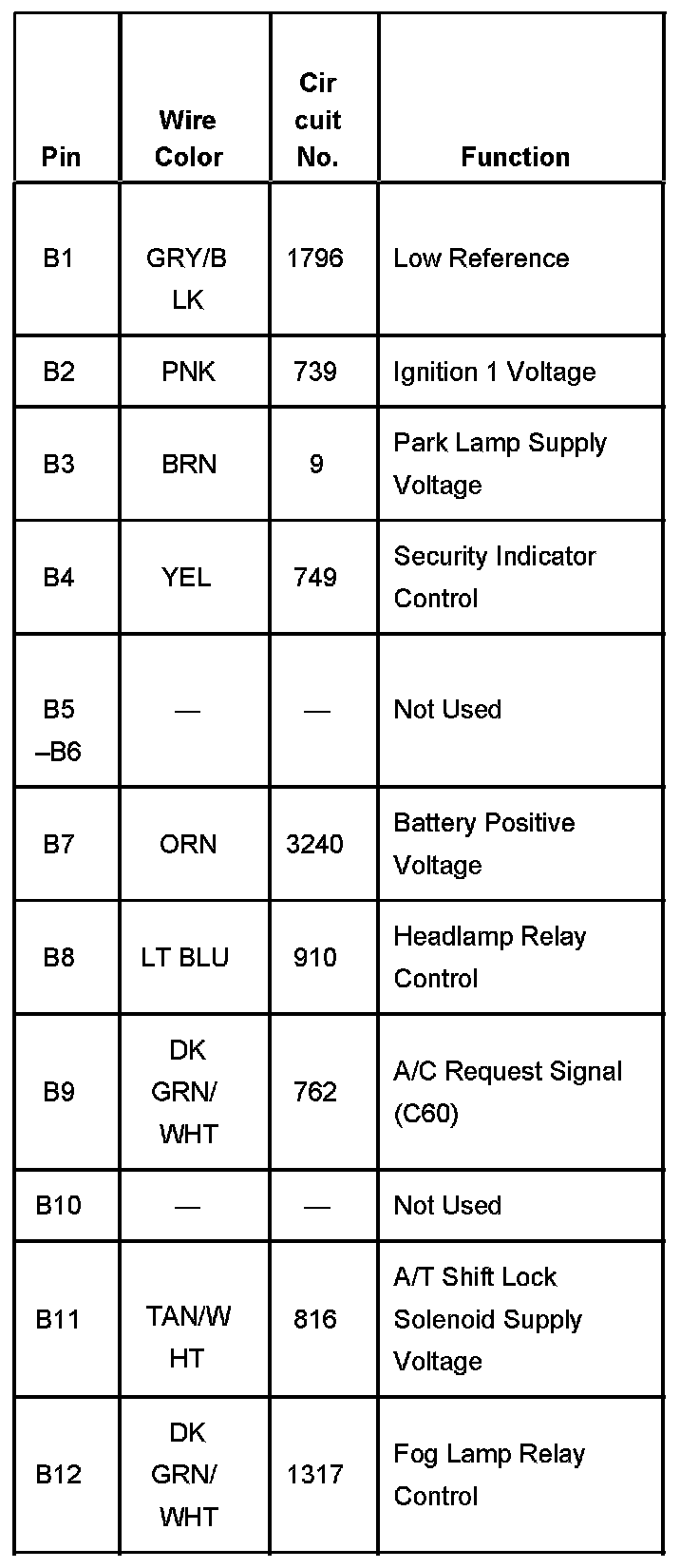

Body Control Module - C1 Part 2:



Body Control Module - C1 Part 3:
