Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams

Keyless Entry Receiver: Diagrams

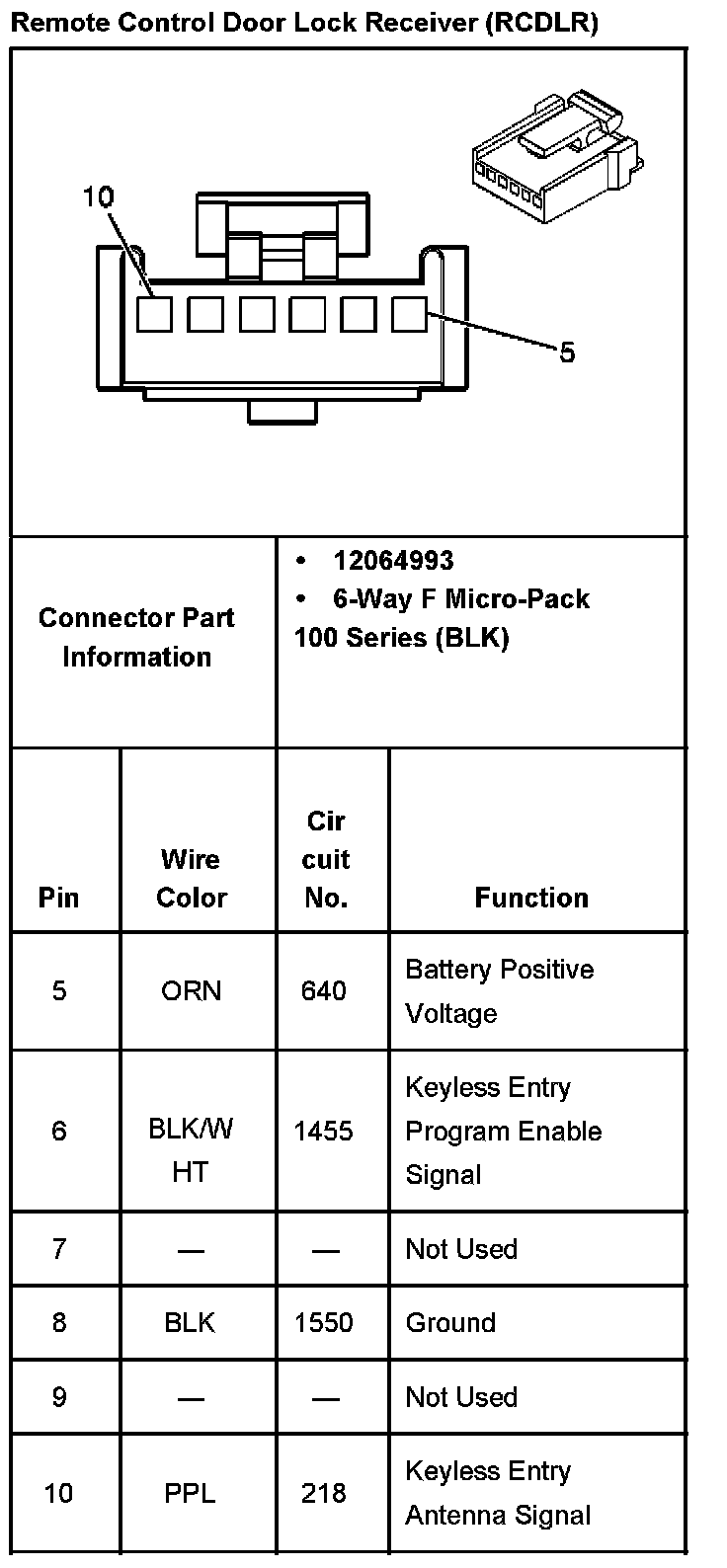

Remote Control Door Lock Receiver (RCDLR):
