Home >> Pontiac >> 2002 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

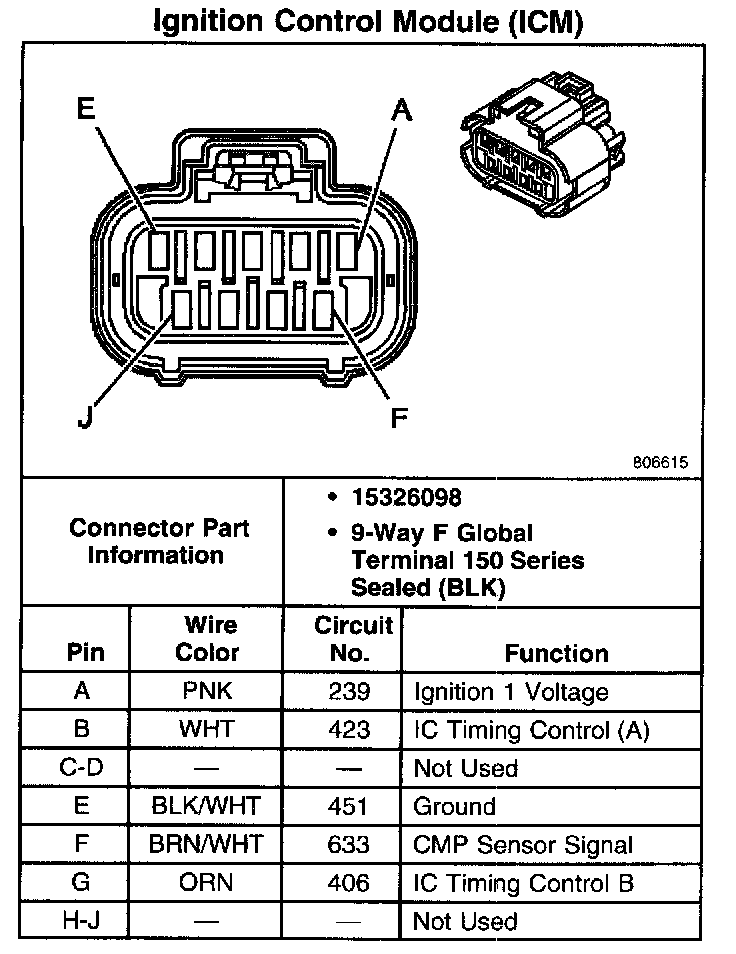

Ignition Control Module (ICM):
