Home >> Pontiac >> 2002 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> DRL

DRL

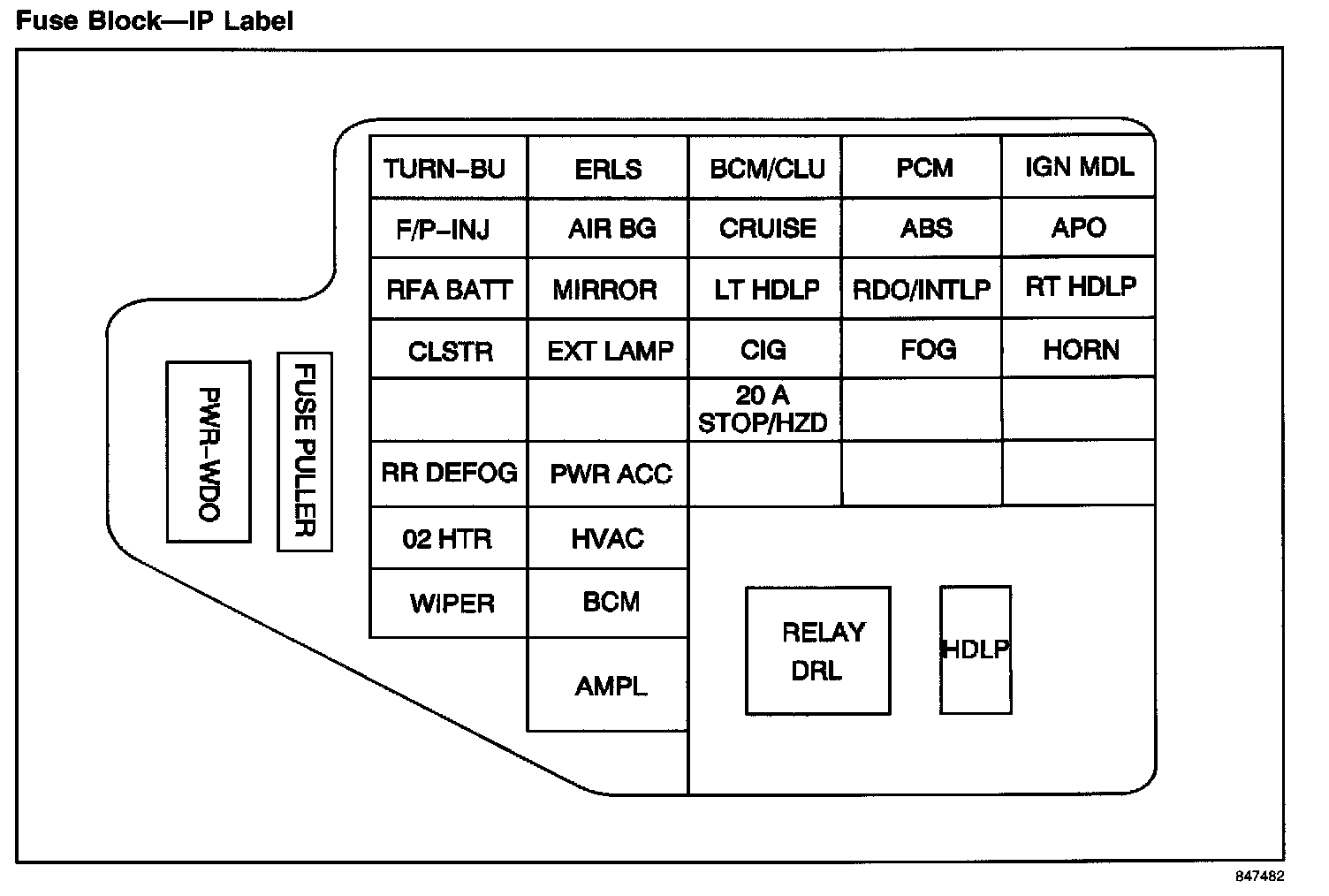

Fuse Block - IP Label:

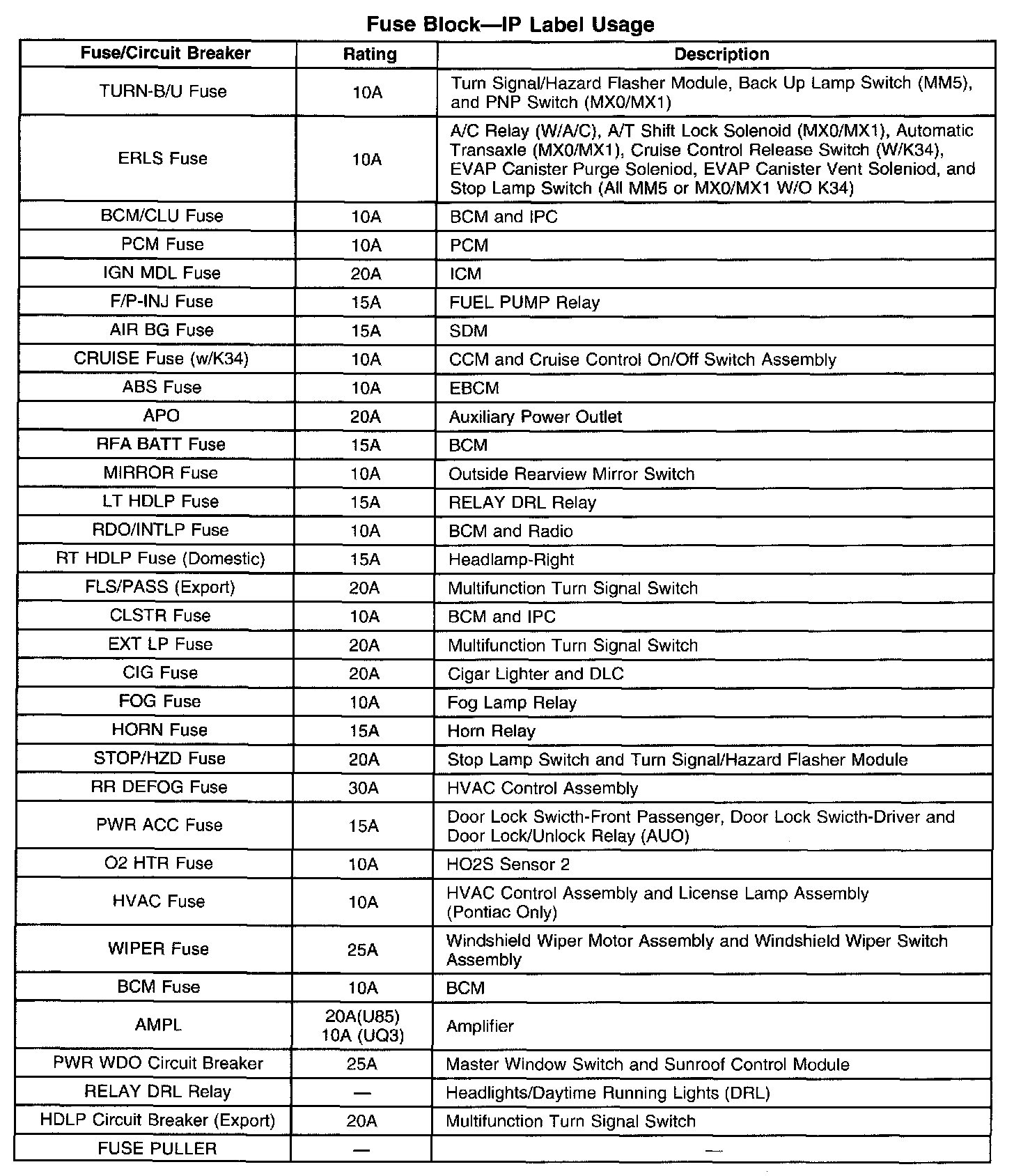

Fuse Block - IP Label Usage:
