System Specifications

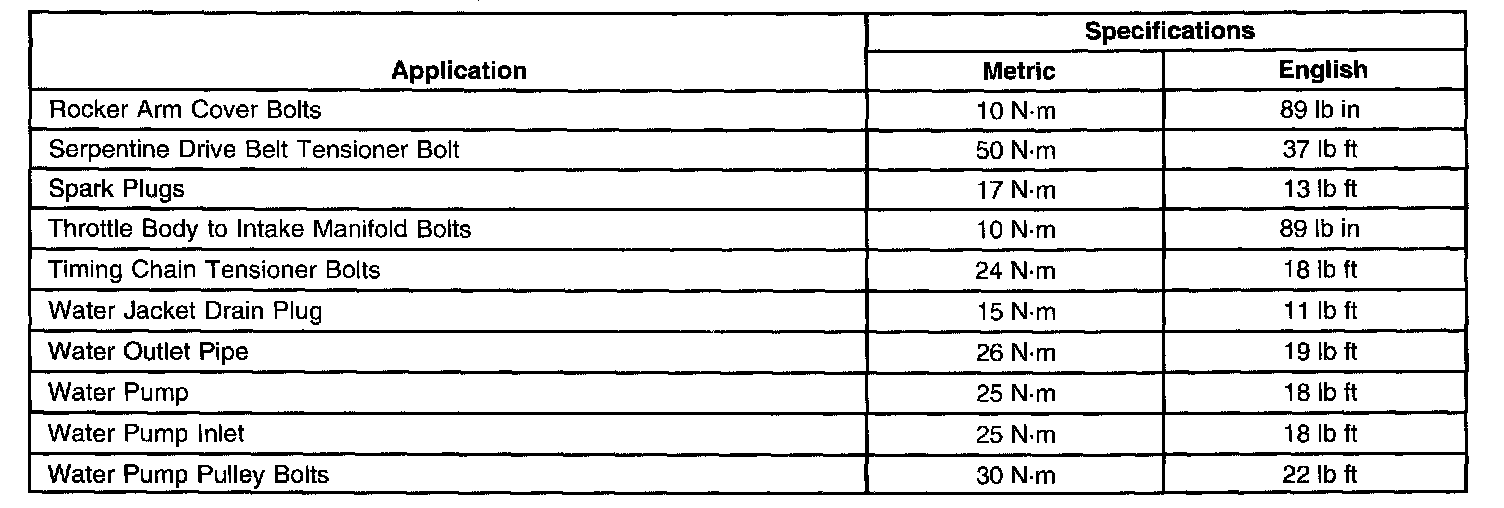

Fastener Tightening Specifications

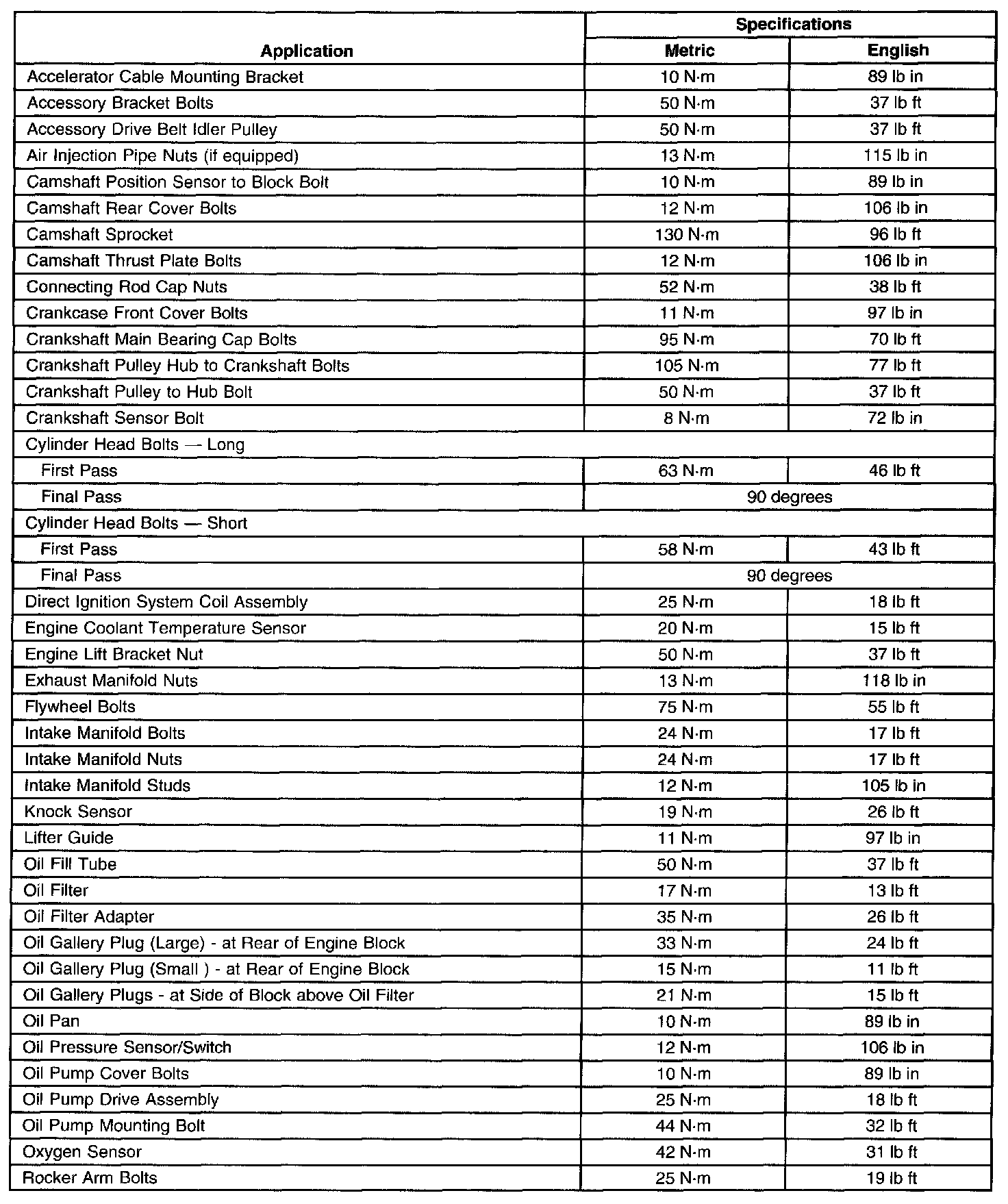

General

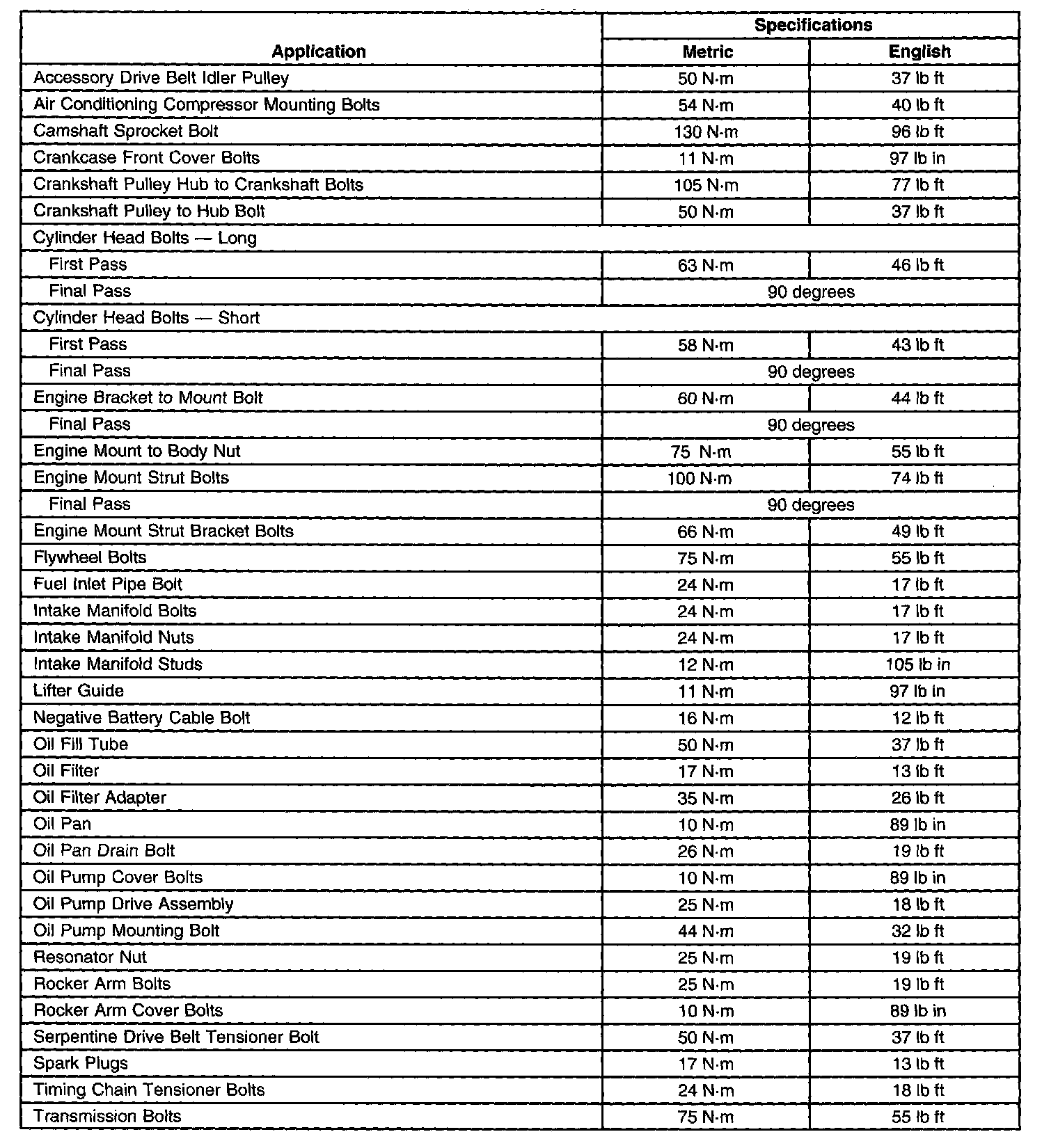

Overhaul

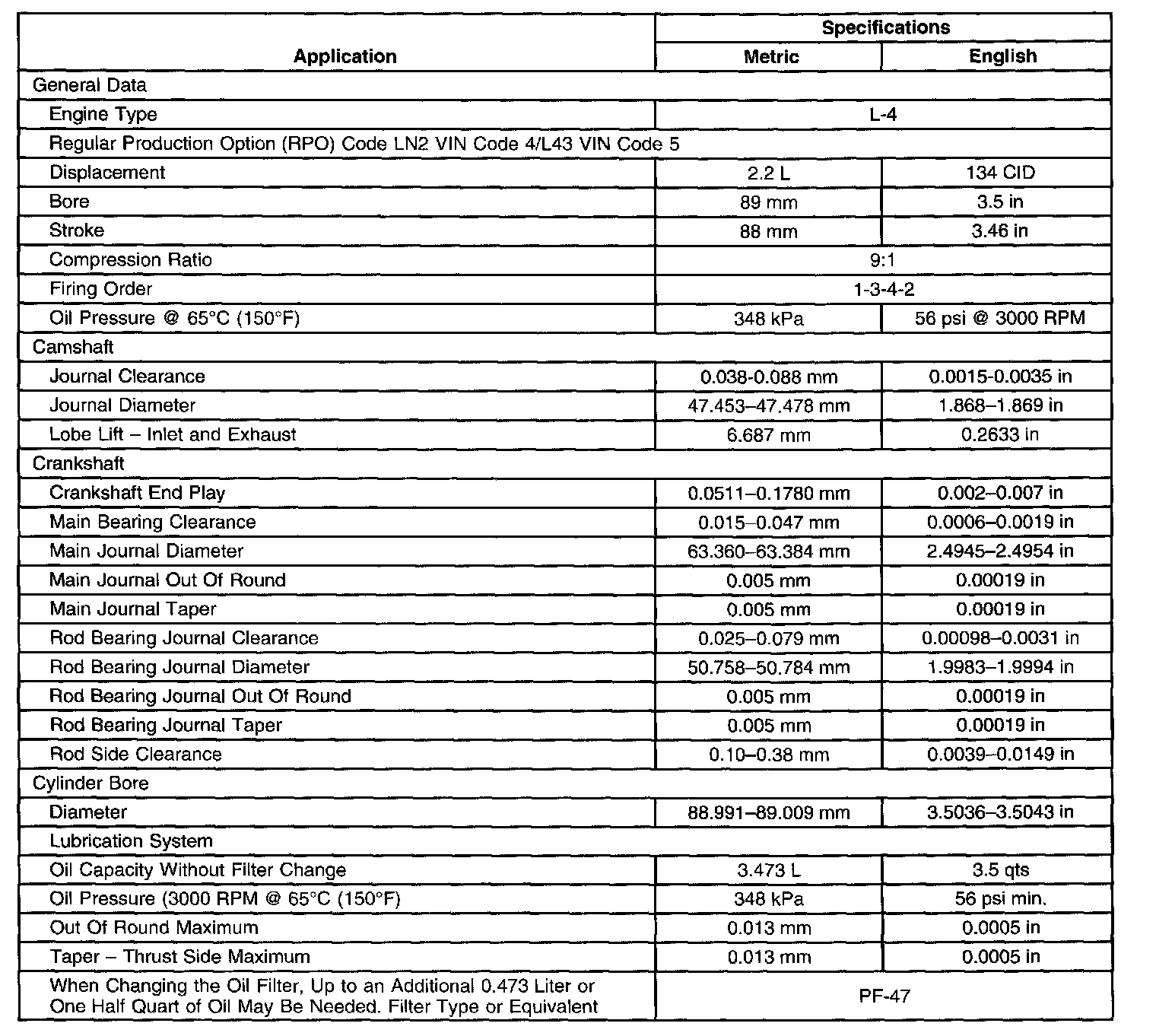

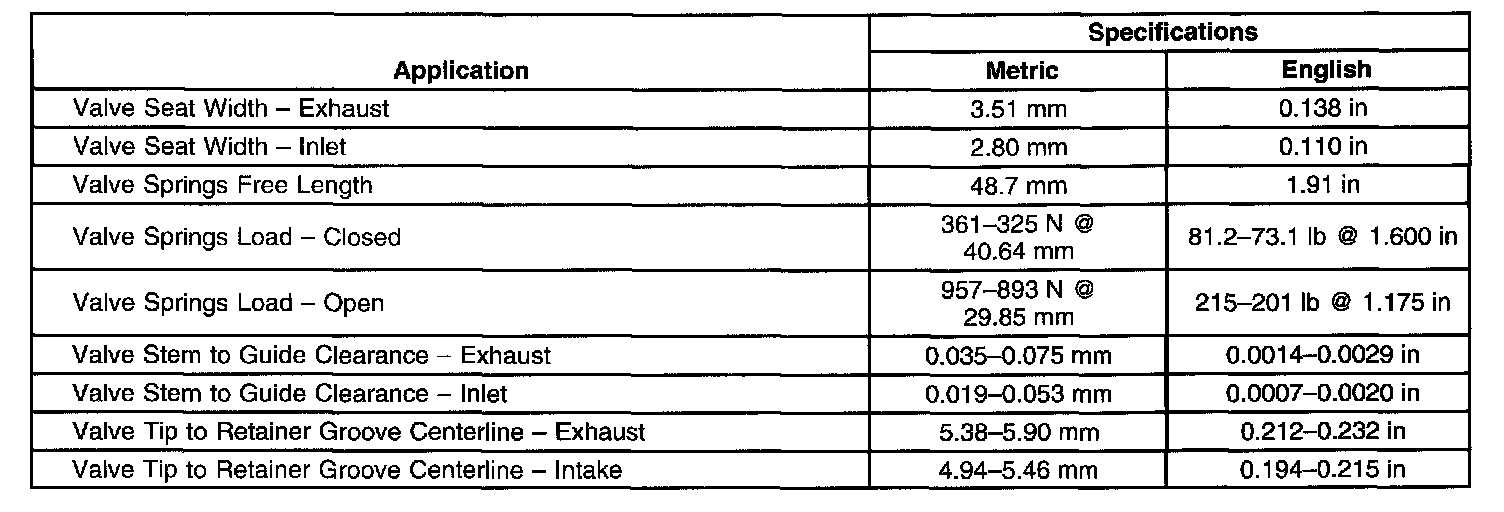

Engine Mechanical Specifications

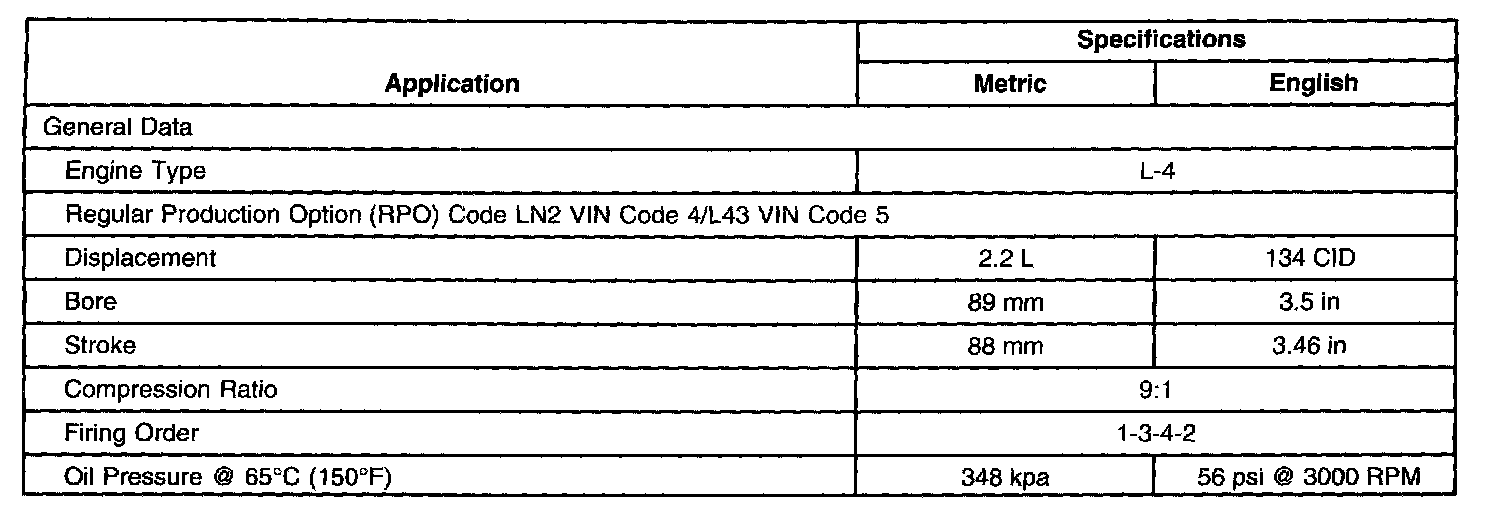

General











Overhaul

Tightening Sequence

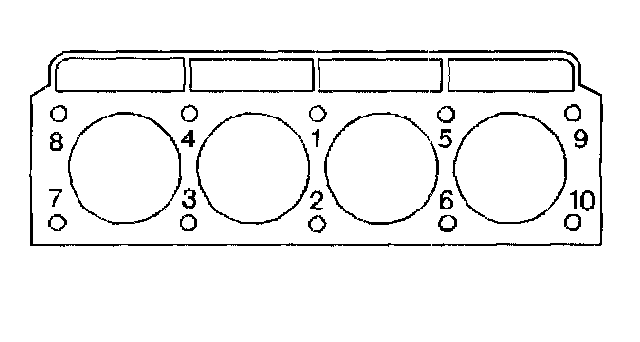

Cylinder Head
Refer to the procedure Service and Repair

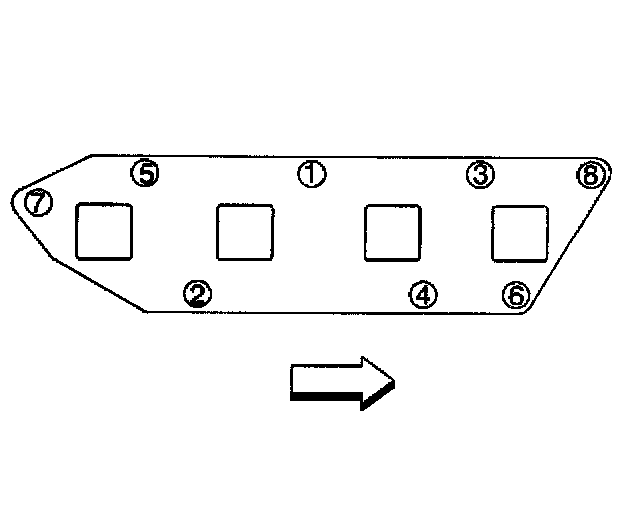

Intake Manifold
