Home >> Pontiac >> 2002 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

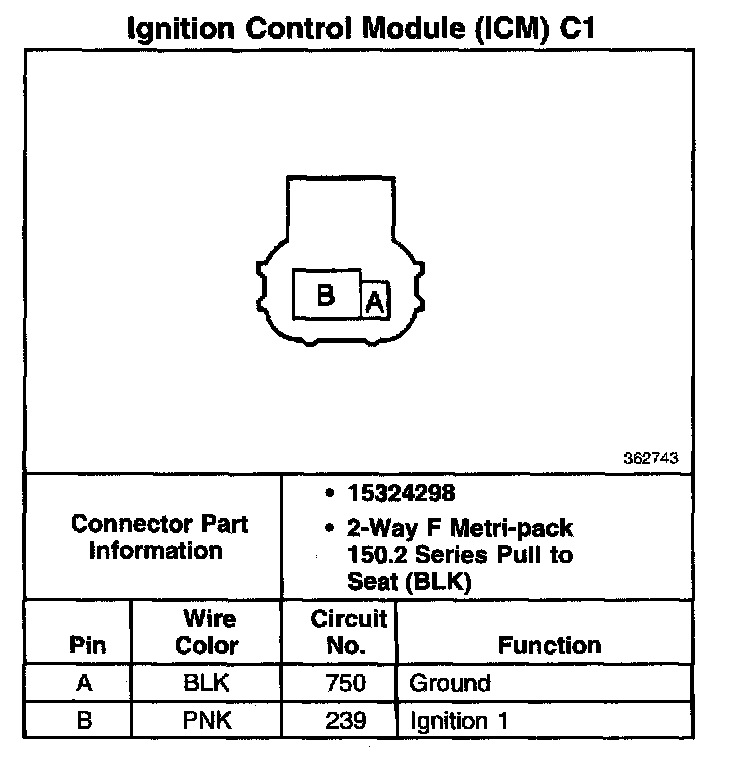

Ignition Control Module (ICM) C1:

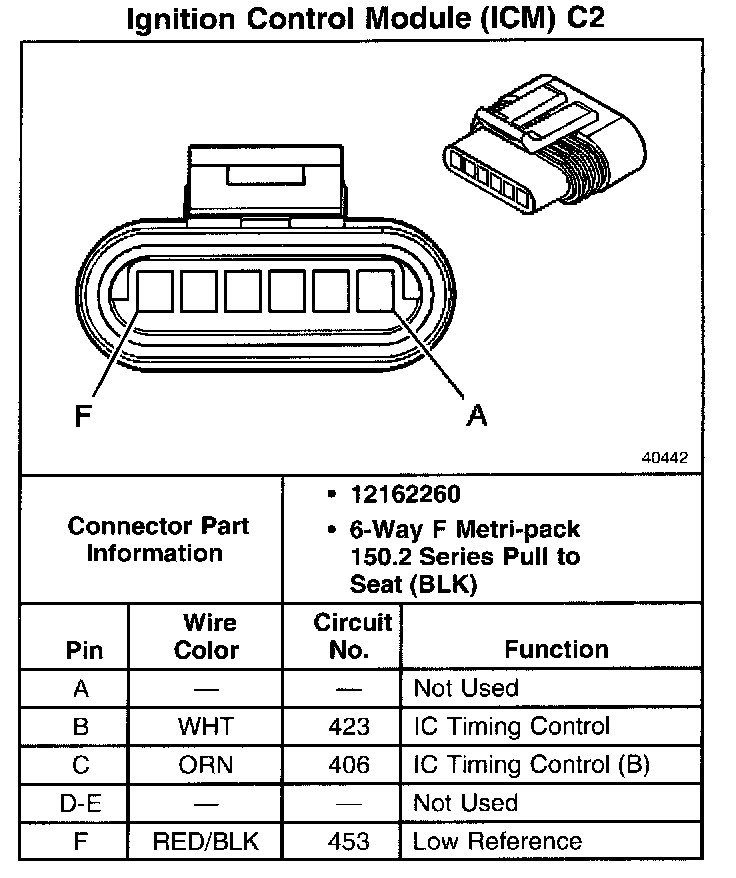

Ignition Control Module (ICM) C2:
