Home >> Pontiac >> 2002 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1

C1

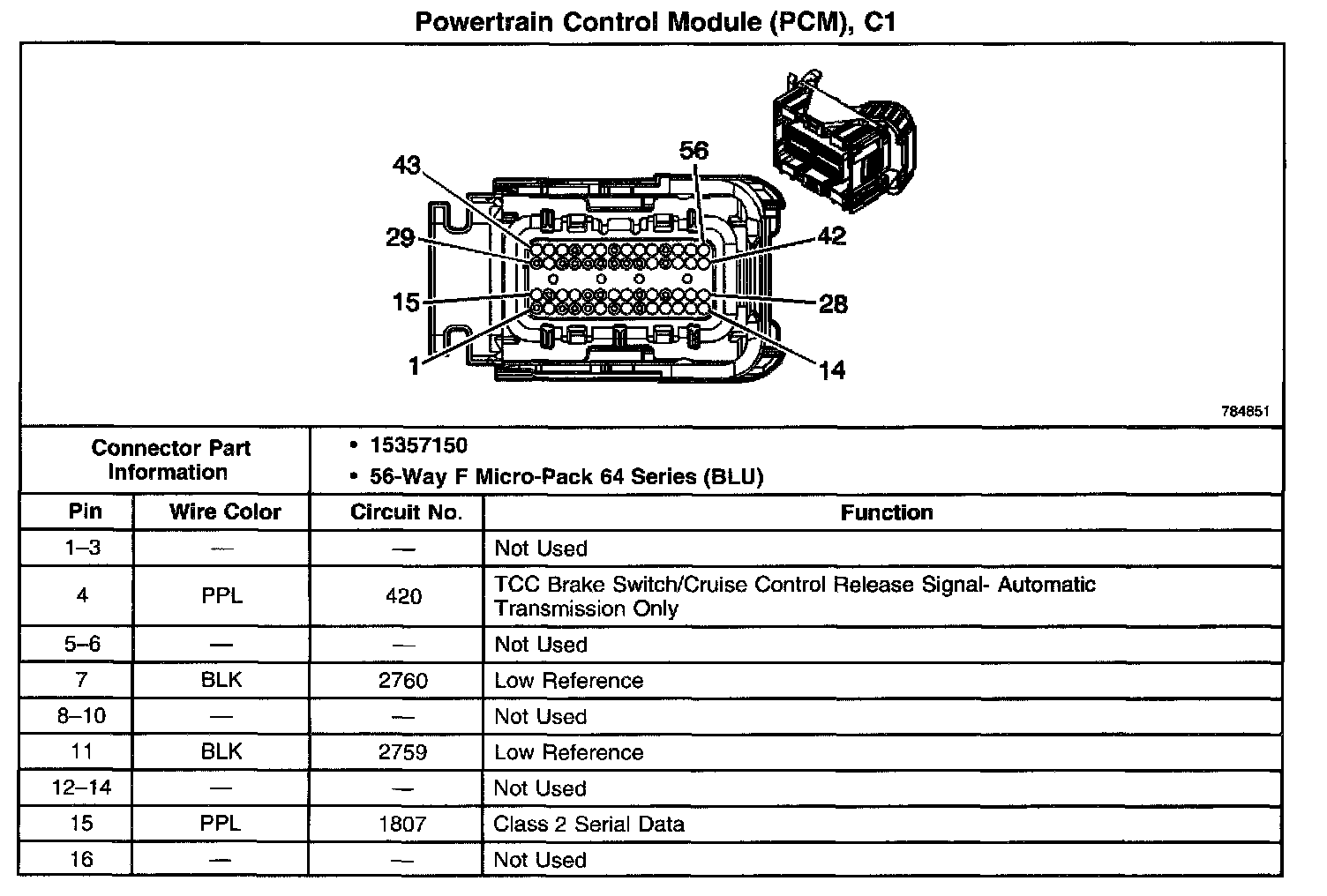

Powertrain Control Module (PCM), C1 Part 1:

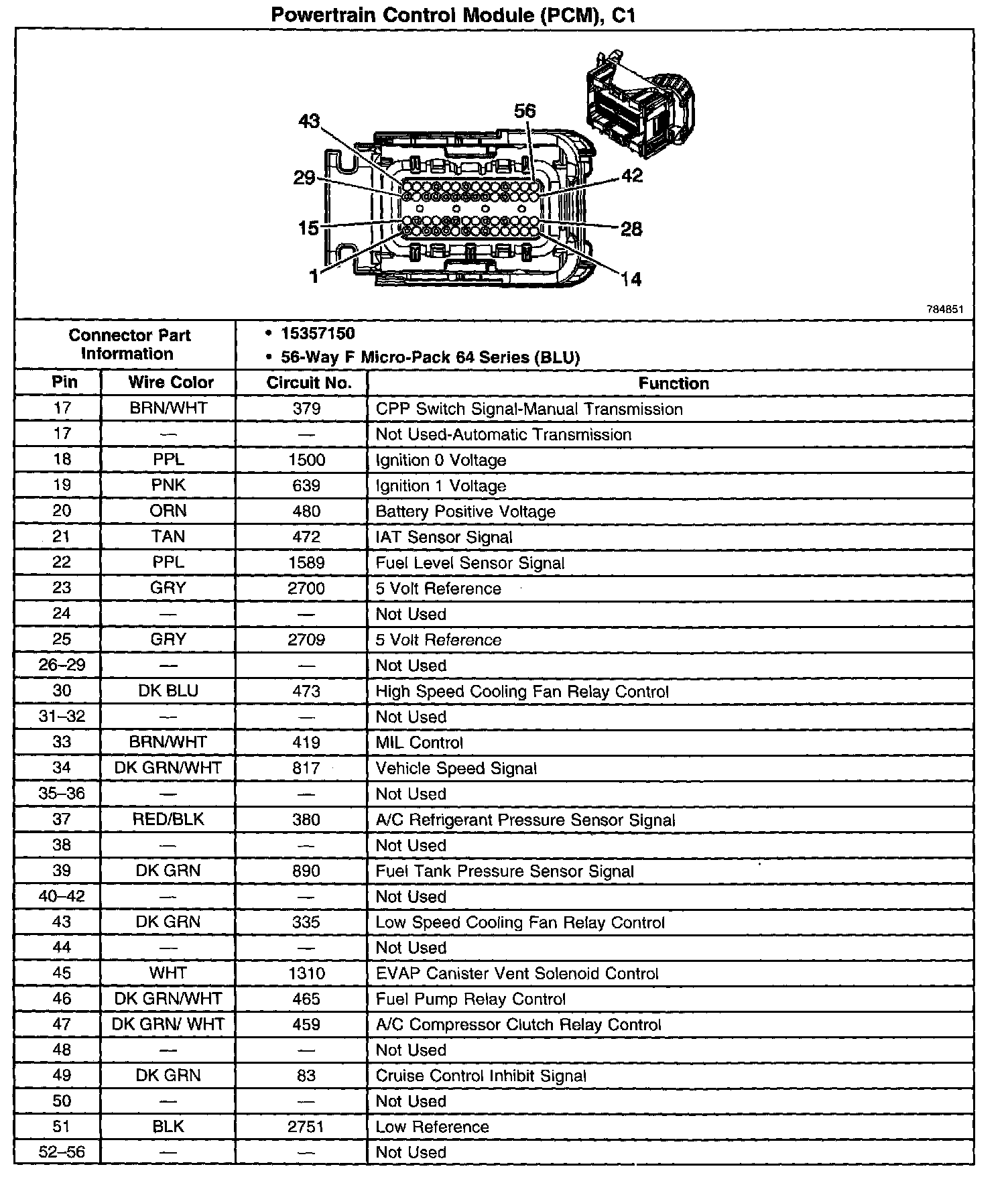

Powertrain Control Module (PCM), C1 Part 2:
