Home >> Pontiac >> 2002 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

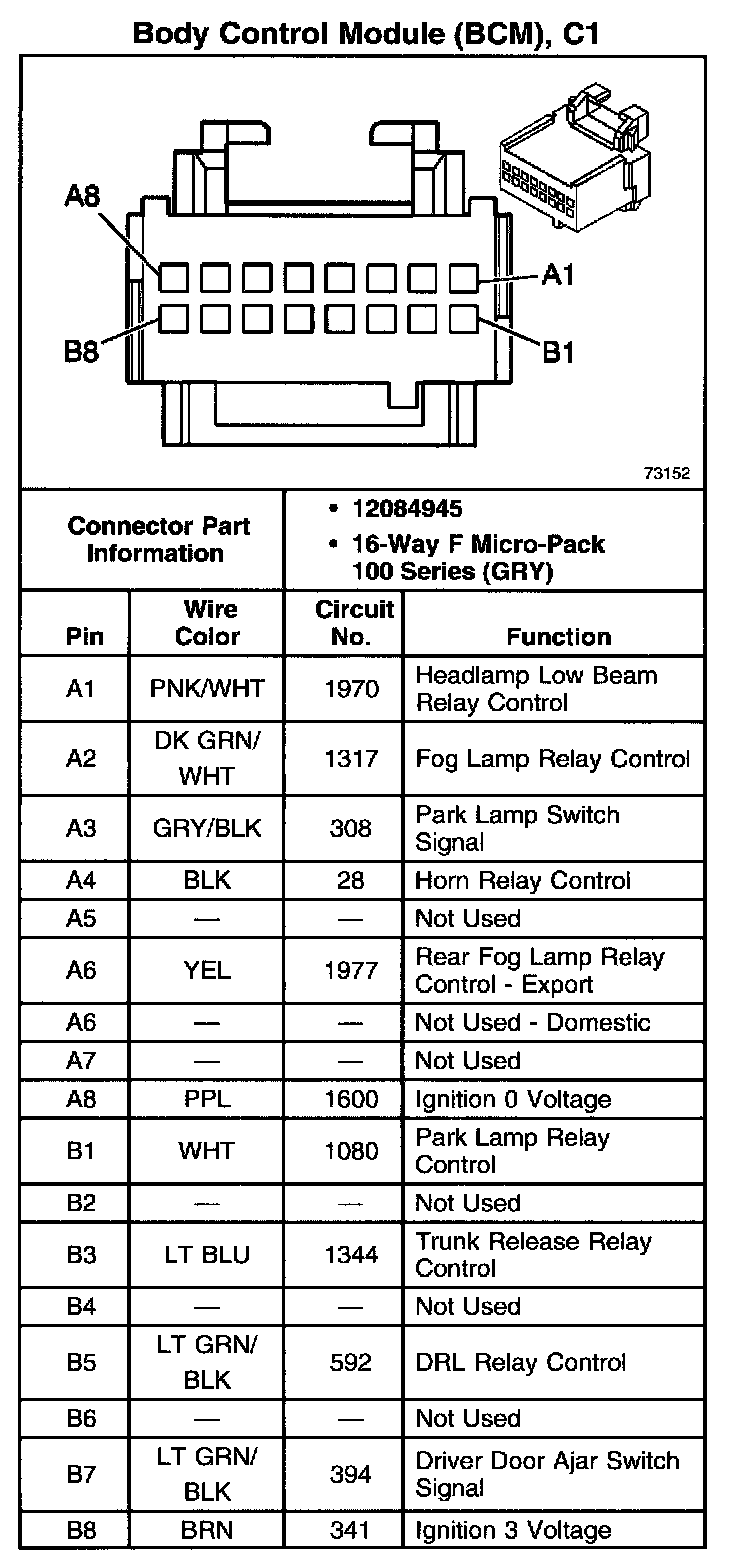

Body Control Module (BCM), C1:

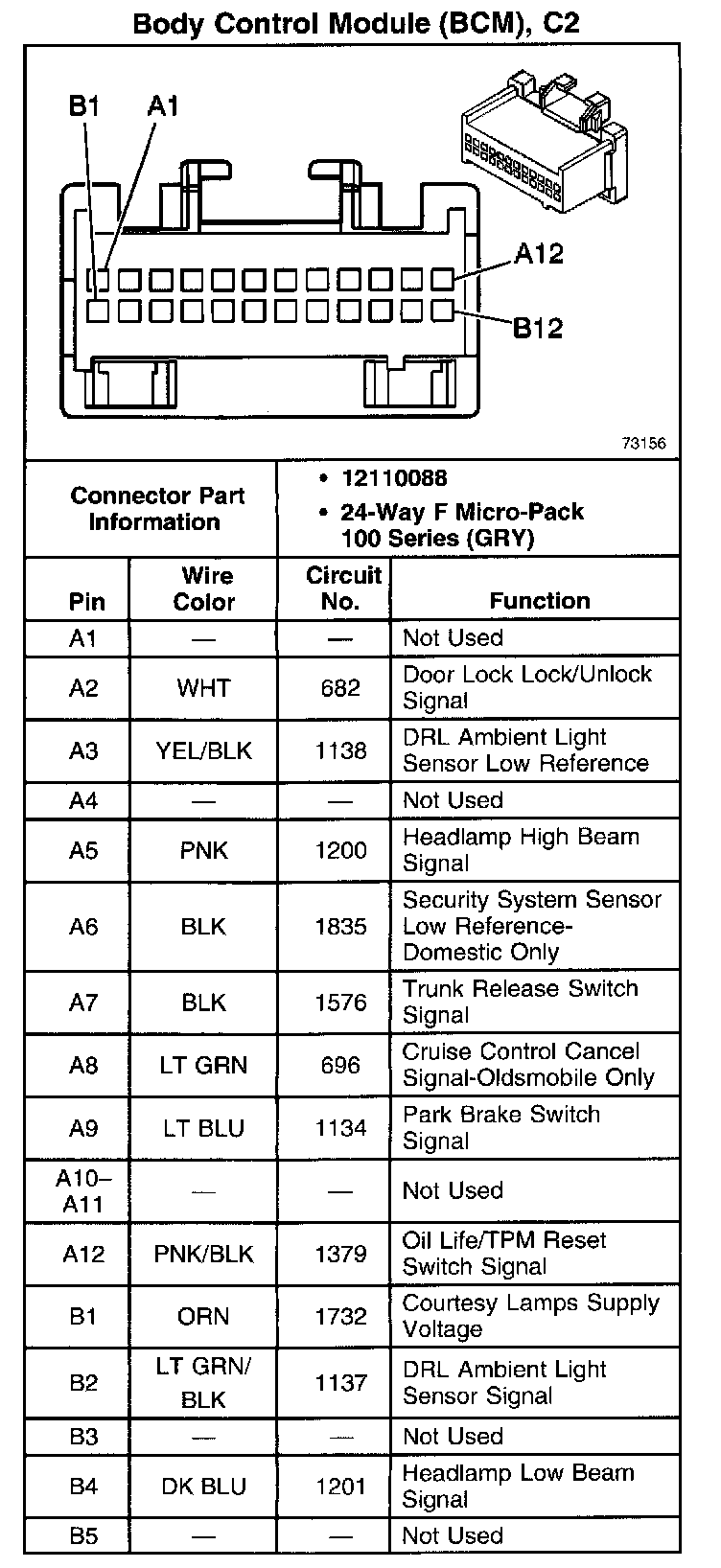

Body Control Module (BCM), C2 Part 1:

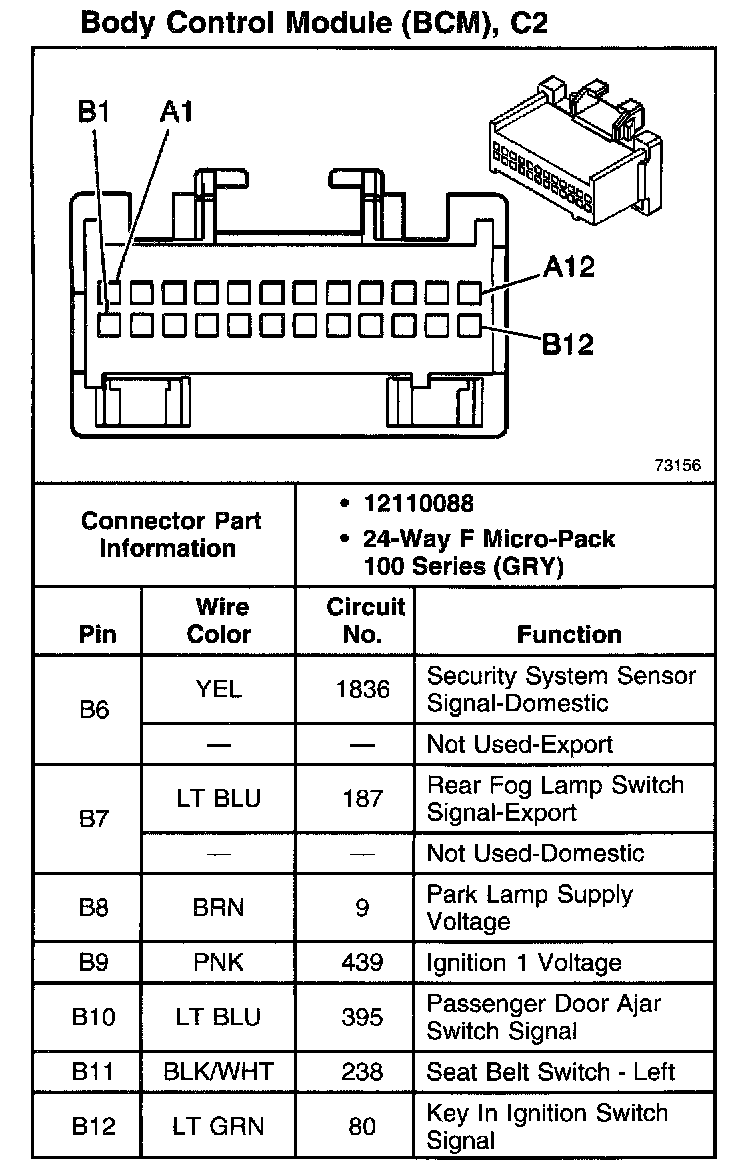

Body Control Module (BCM), C2 Part 2:

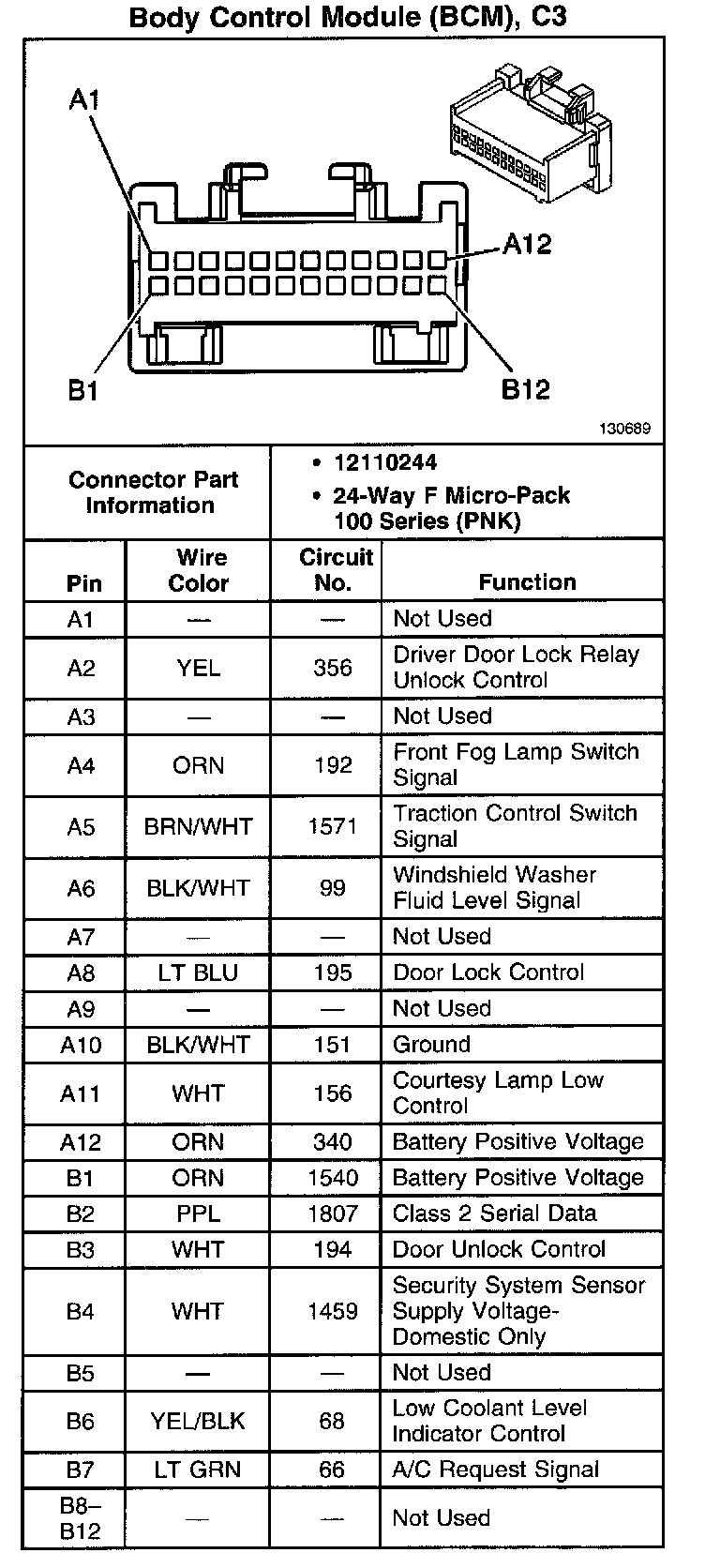

Body Control Module (BCM), C3:
