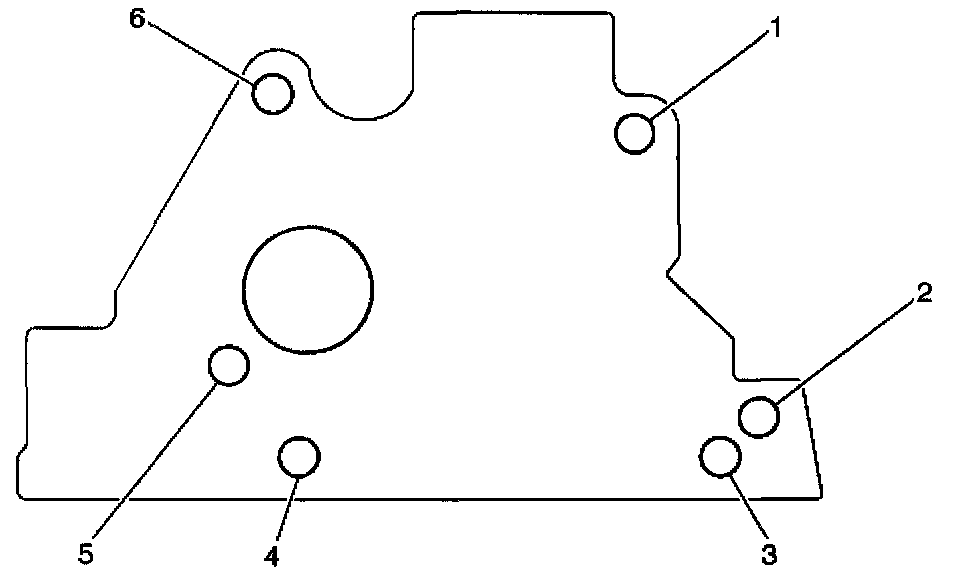

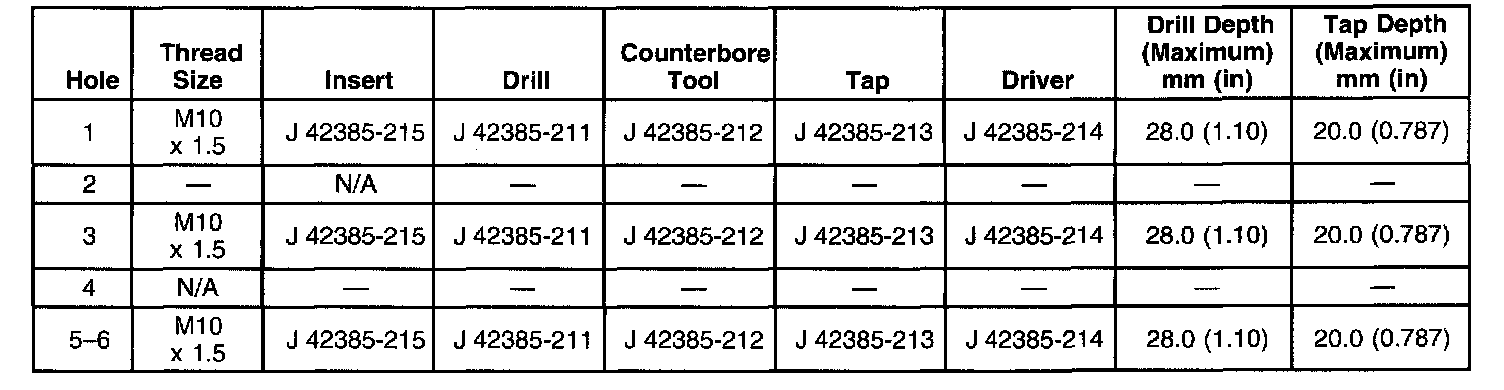

Home >> Pontiac >> 2002 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Cylinder Head-End View
