Home >> Pontiac >> 2002 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

Electronic Brake Control Module (EBCM)

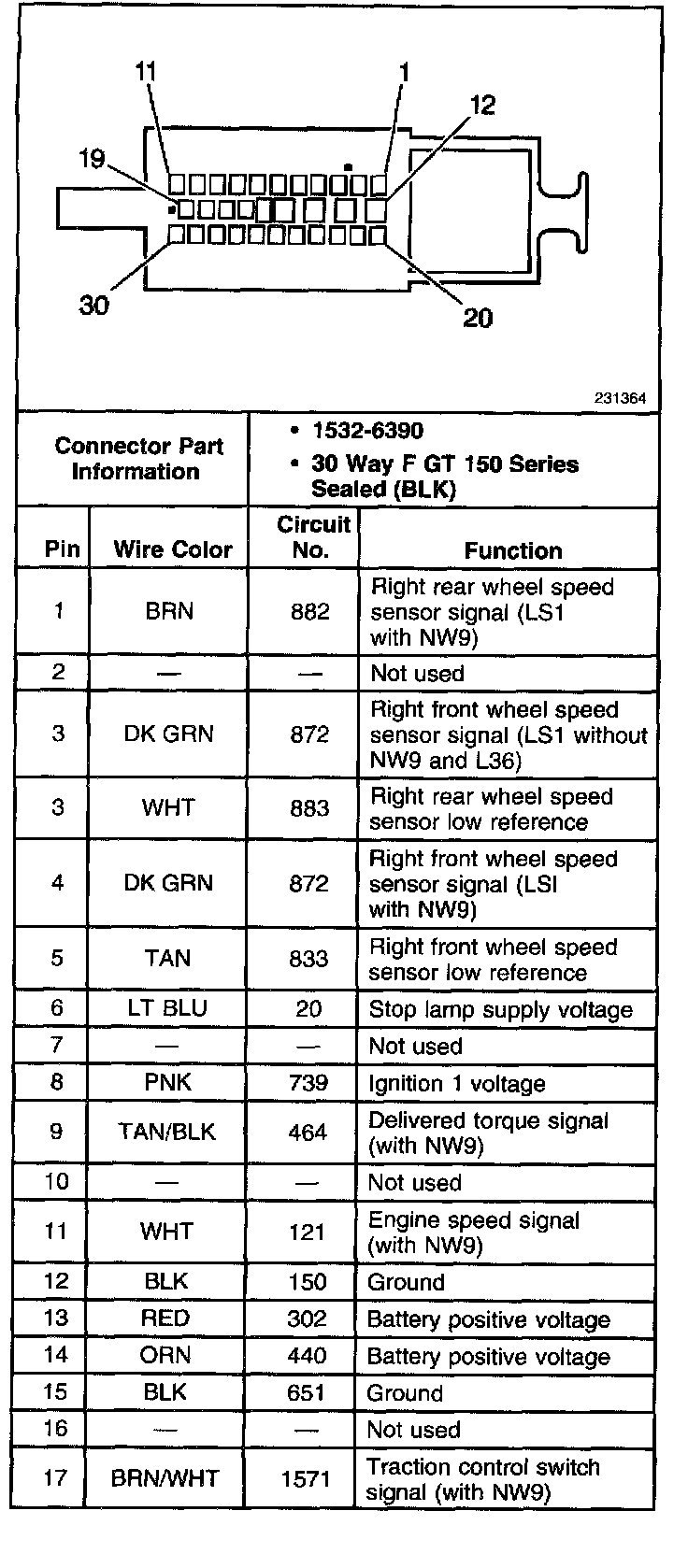

Part 1 of 2

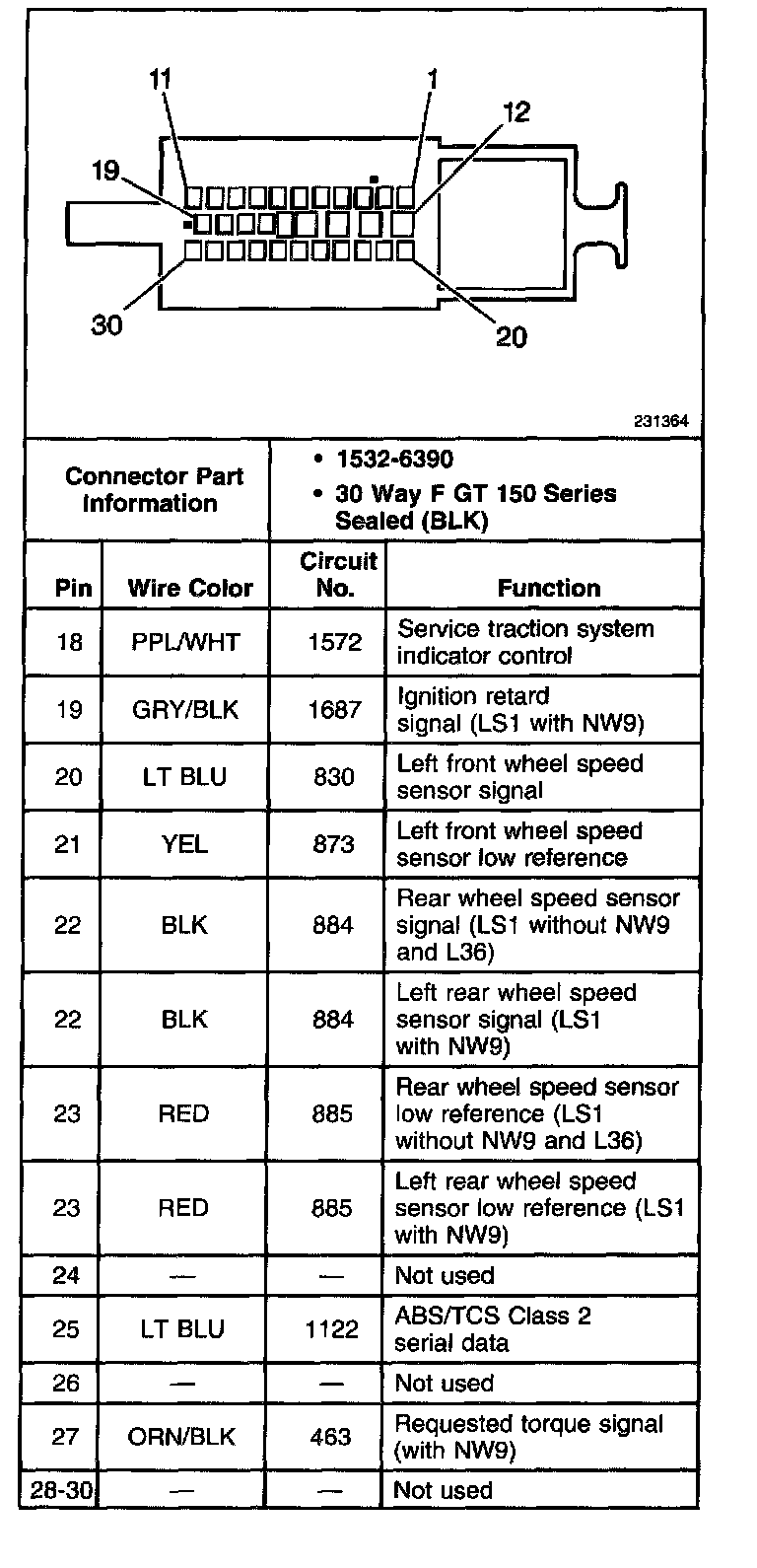

Part 2 of 2
