Home >> Pontiac >> 2002 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

Accelerator and Servo Control Module (ASM)

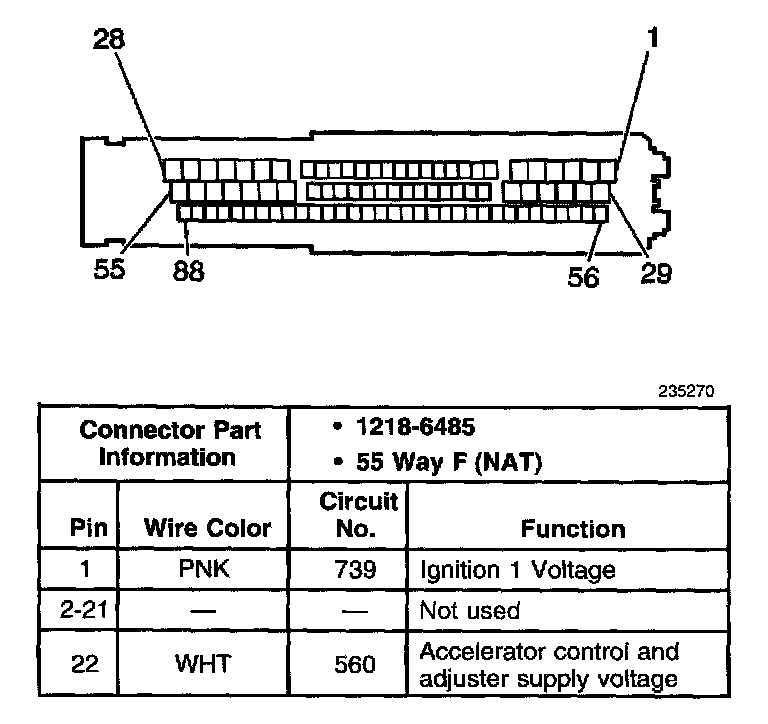

Part 1 of 2

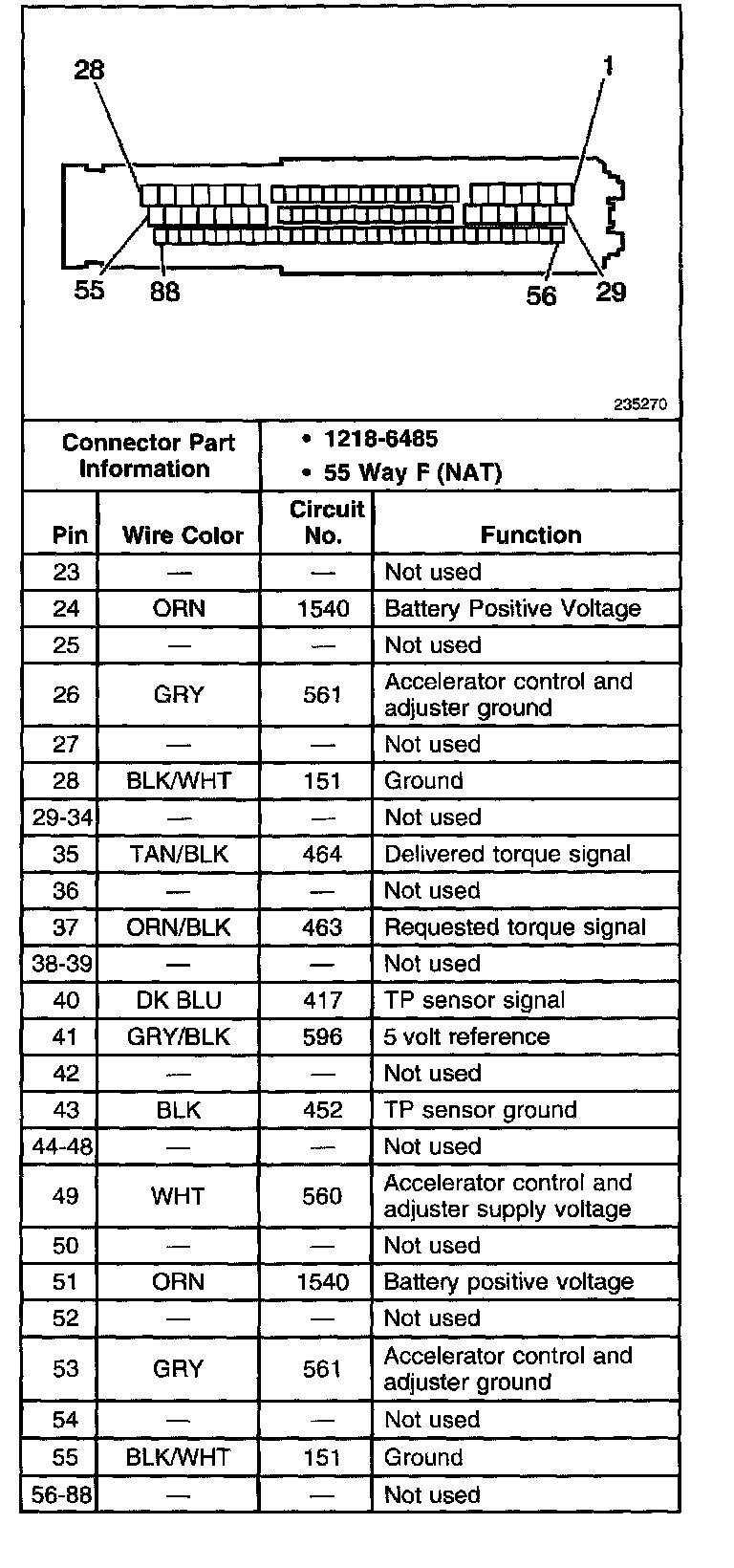

Part 2 of 2
