Engine Control Module
>>
C1
C1

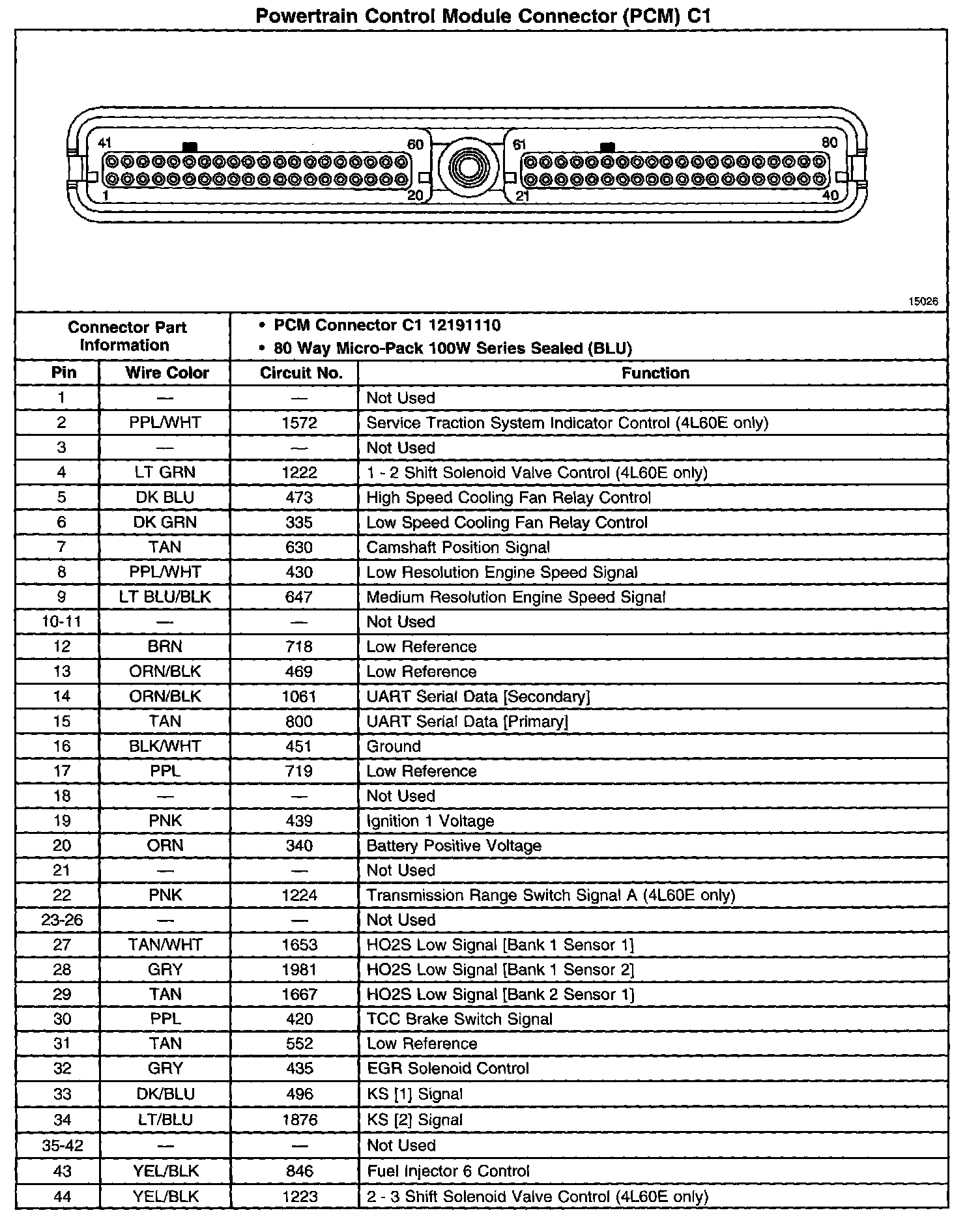

Powertrain Control Module Connector (PCM) C1 Part 1:

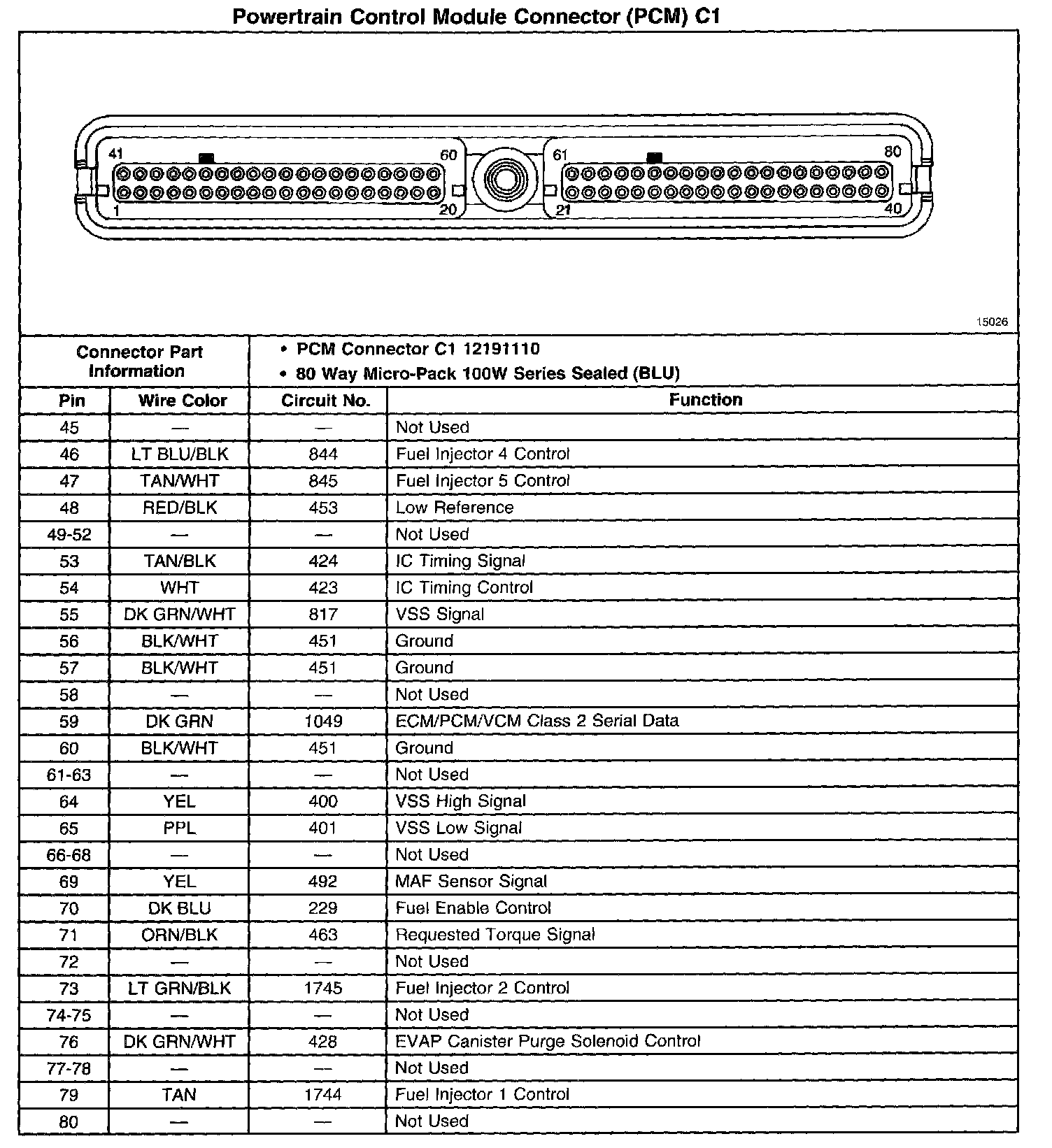

Powertrain Control Module Connector (PCM) C1 Part 2:
