Ignition Relay: Locations

Located in the underhood Fuse/Relay Block

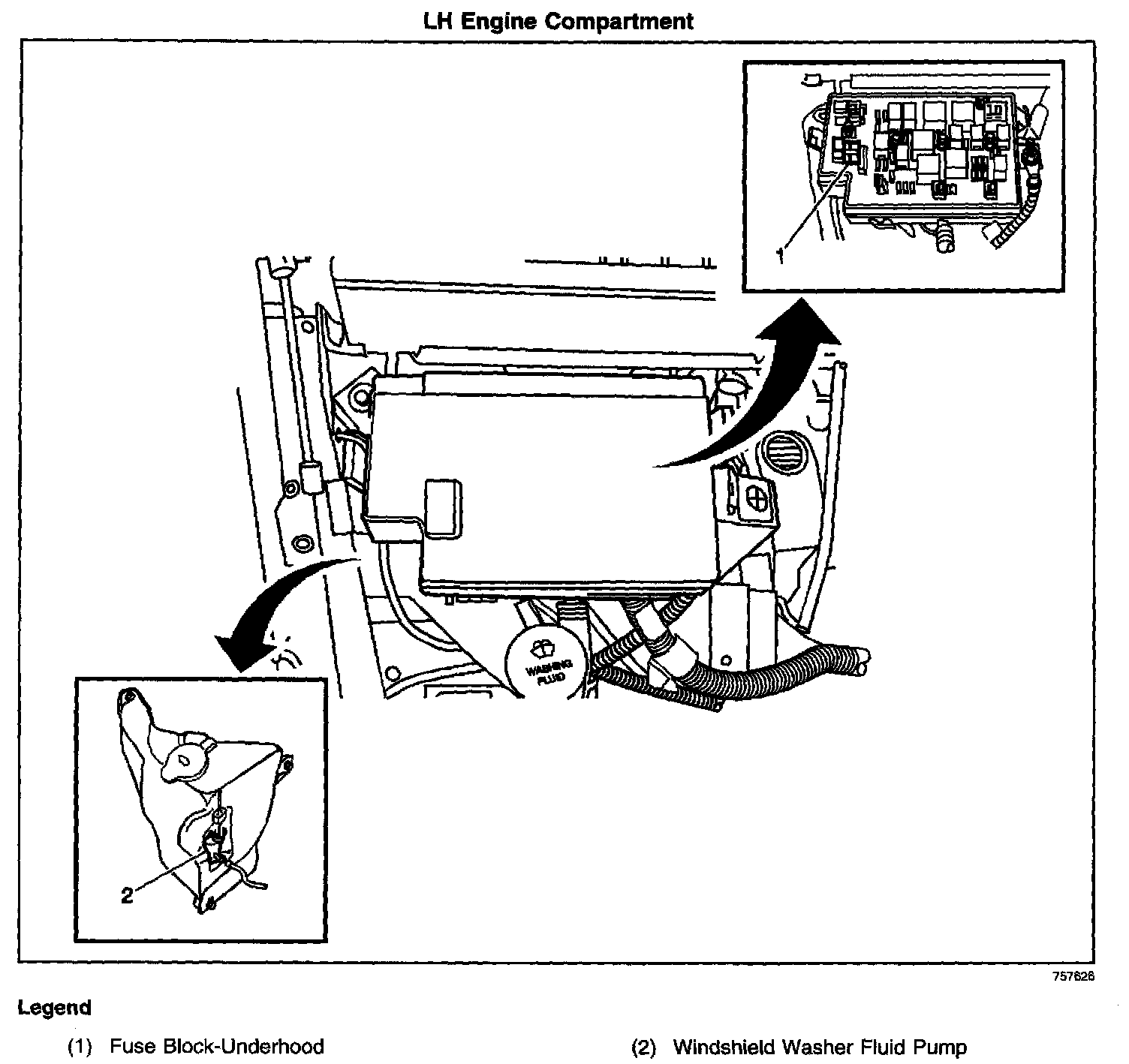

Locations View:

Fuse Block - Underhood Label - Pontiac:

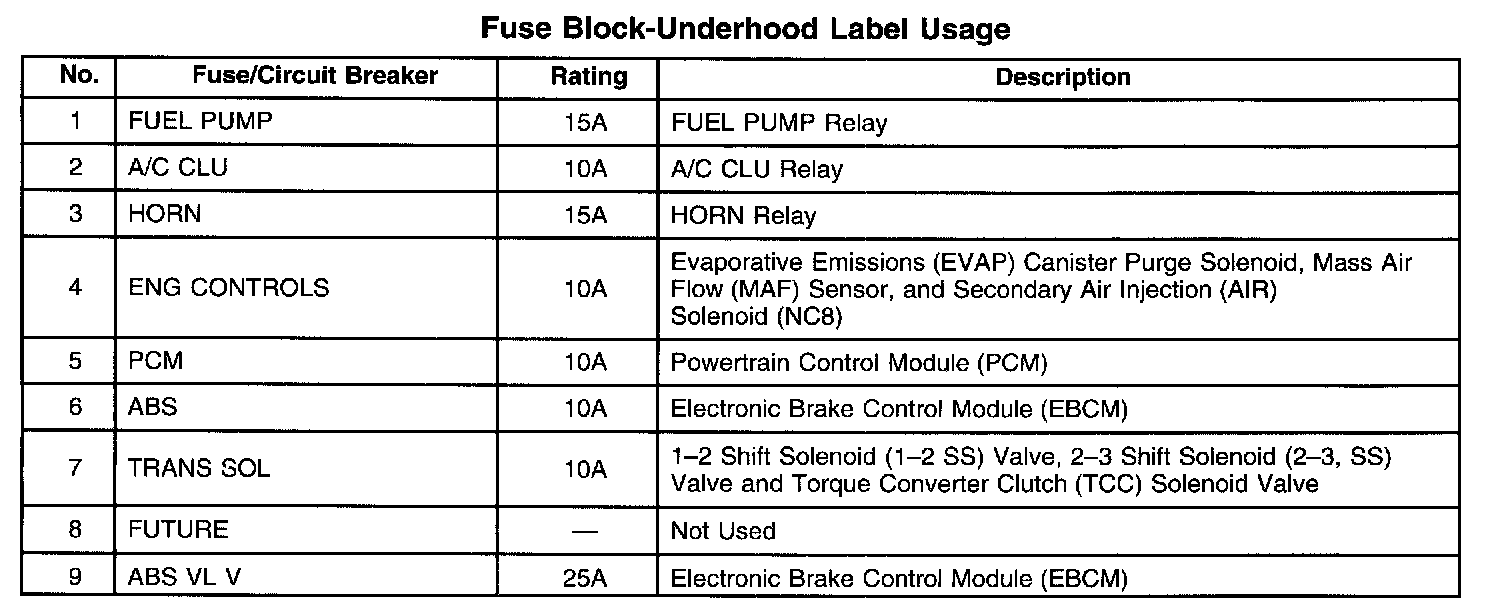

Fuse Block - Underhood Label Usage Part 1:

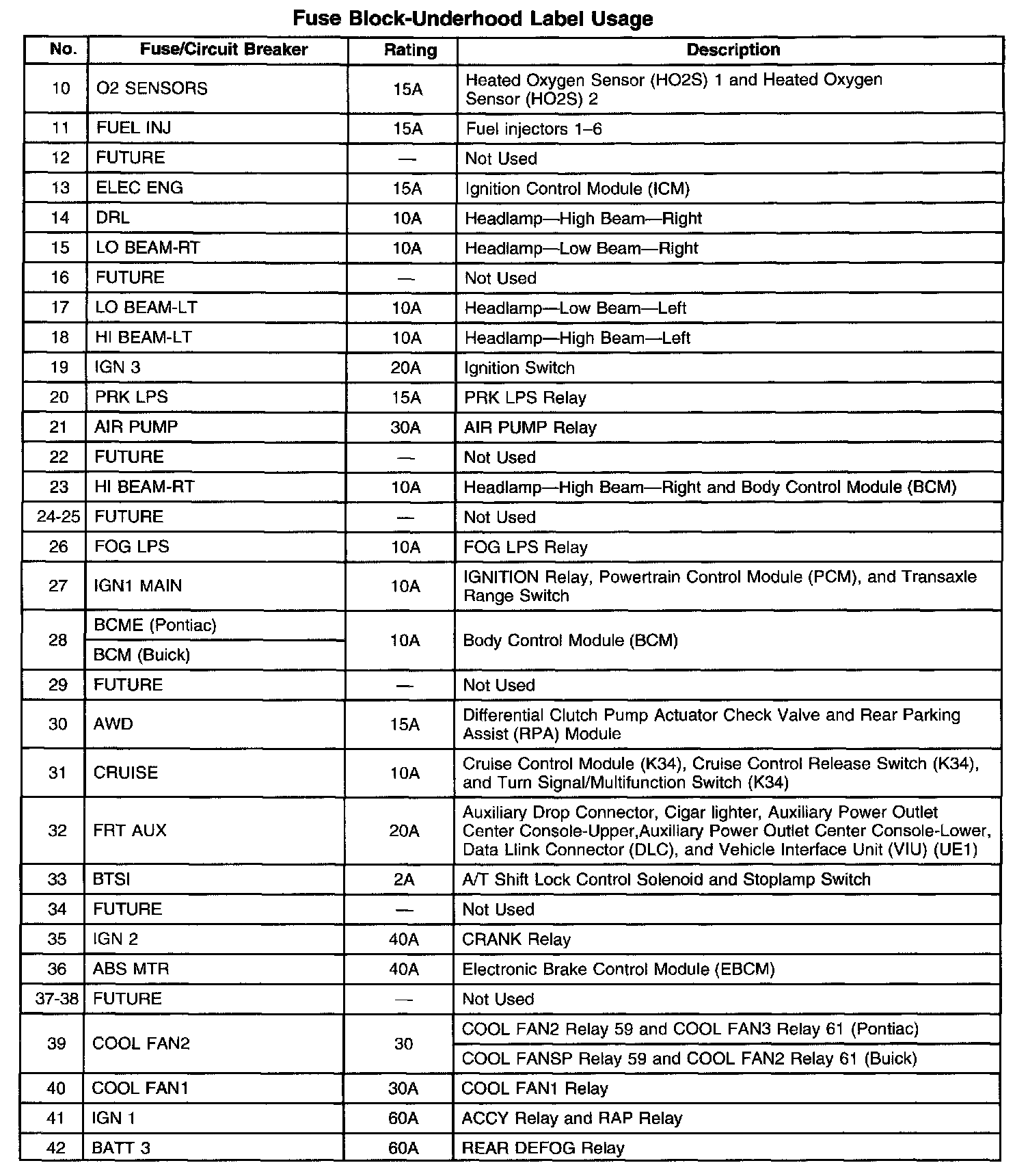

Fuse Block - Underhood Label Usage Part 2:

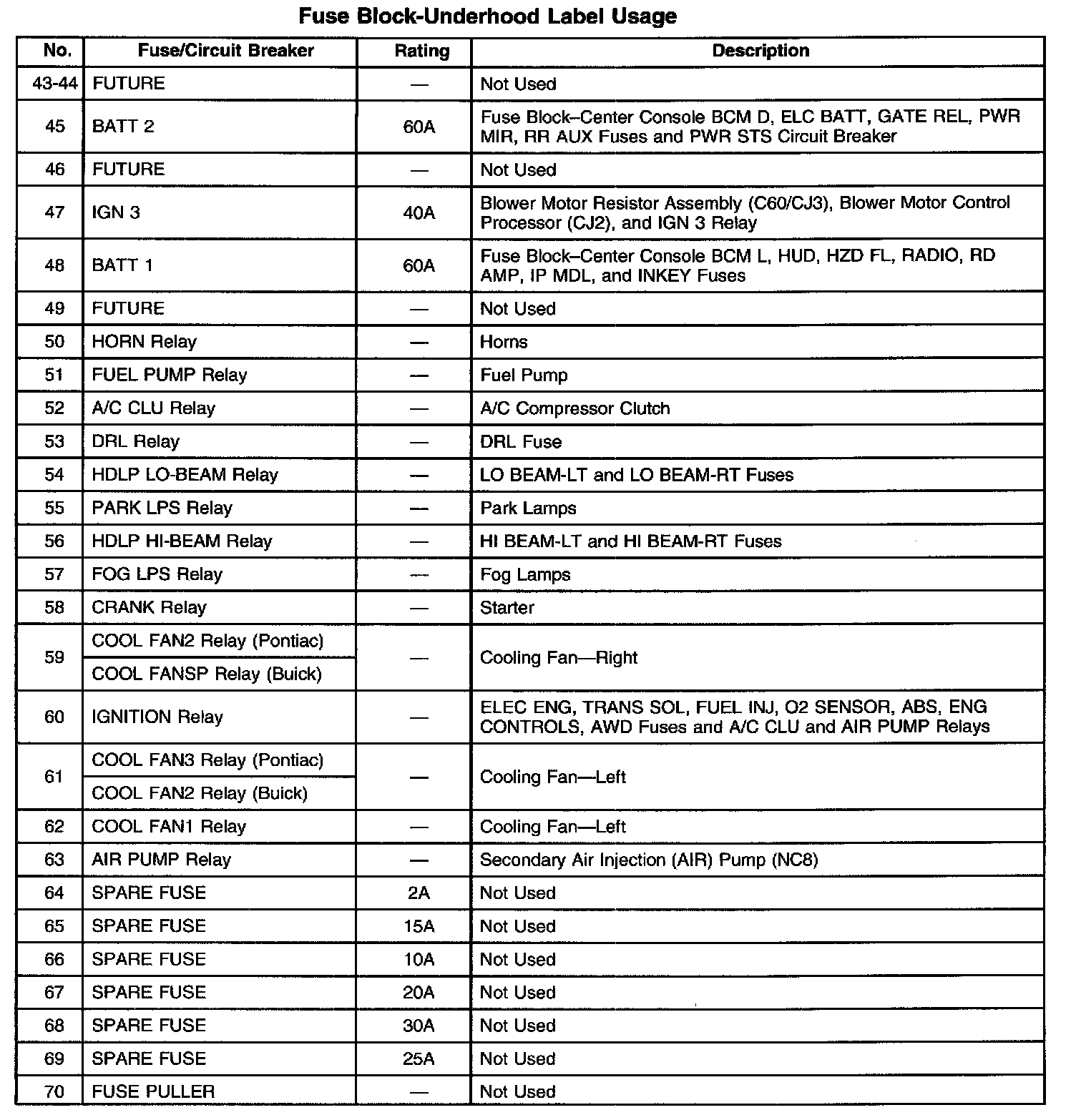

Fuse Block - Underhood Label Usage Part 3:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
