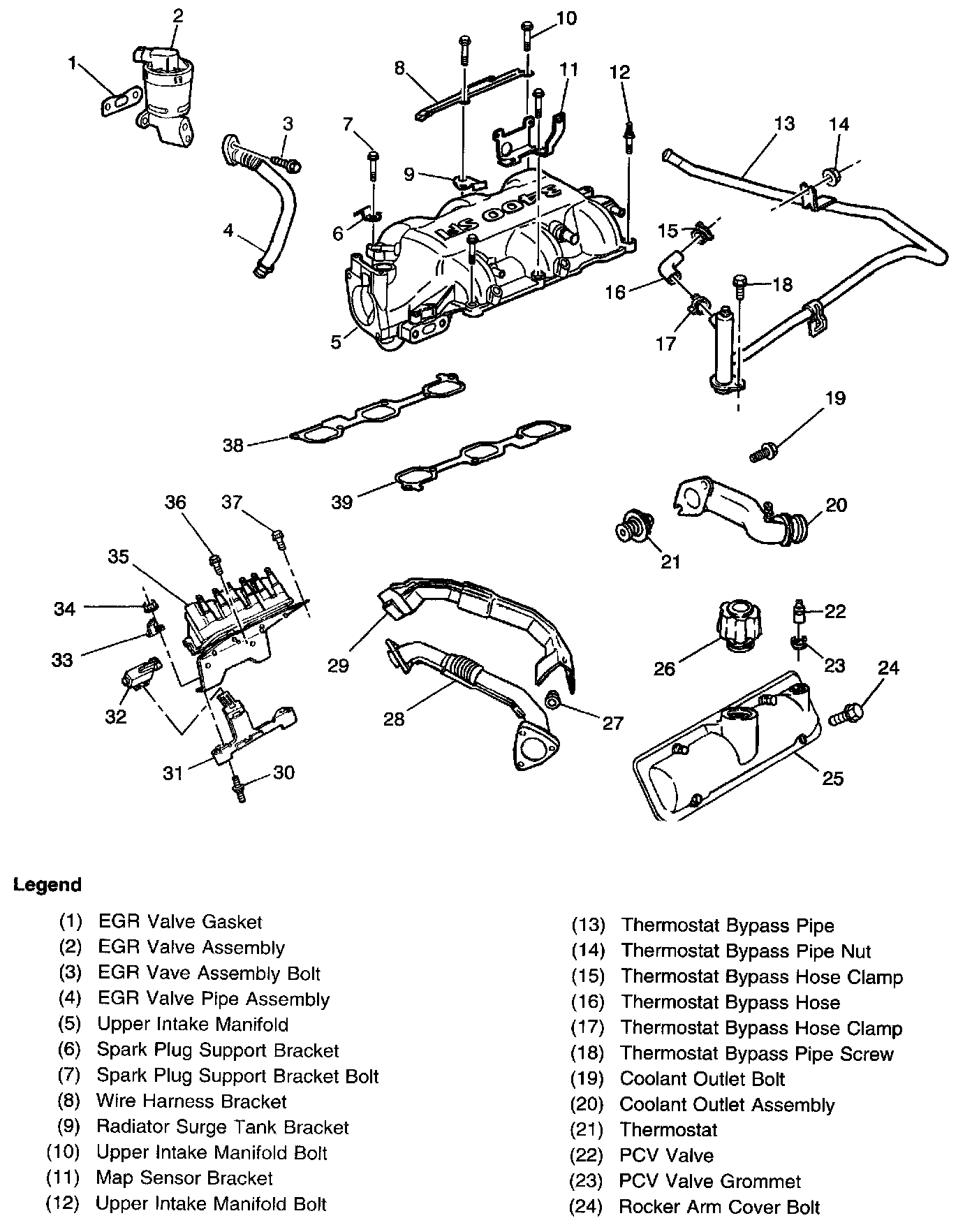

Upper Intake Manifold and Components

Upper Intake Manifold and Components

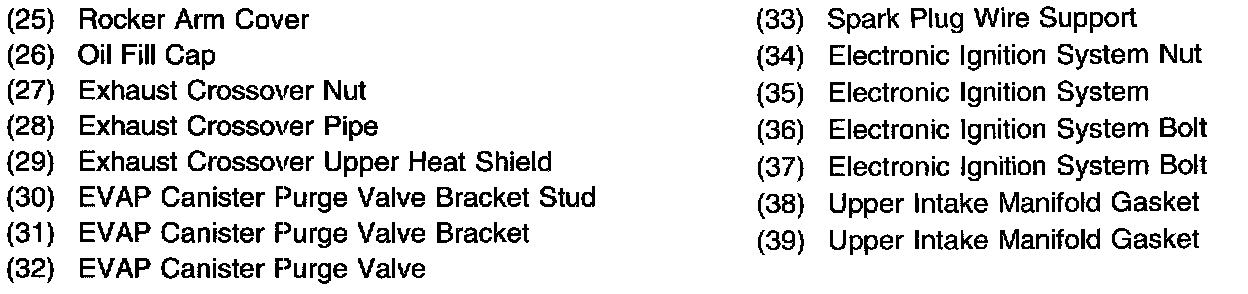

Part 1 of 2





Part 2 of 2
