Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

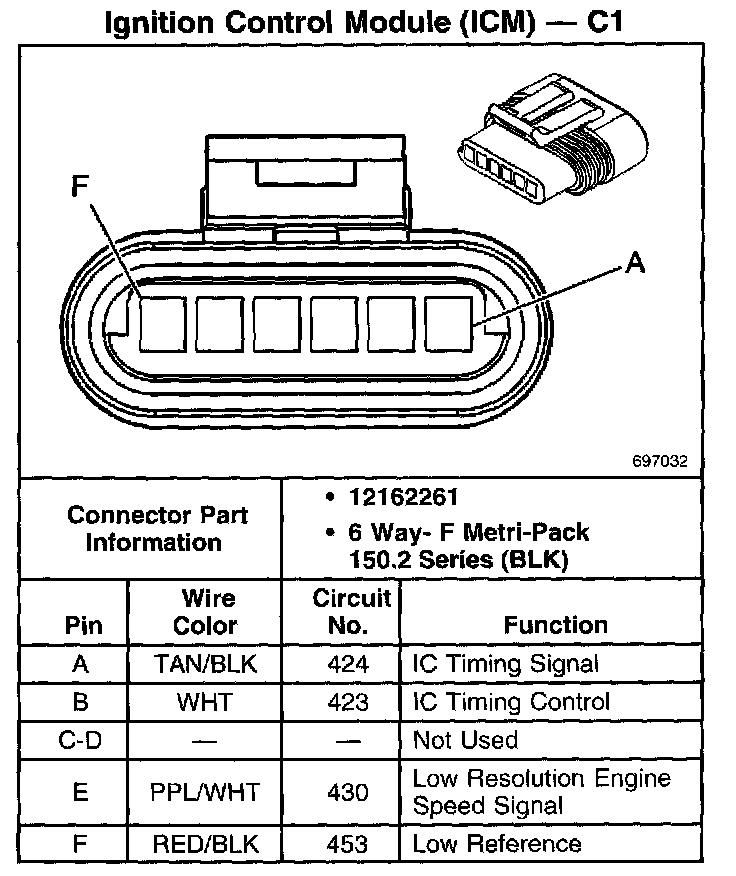

Ignition Control Module (ICM) - C1:

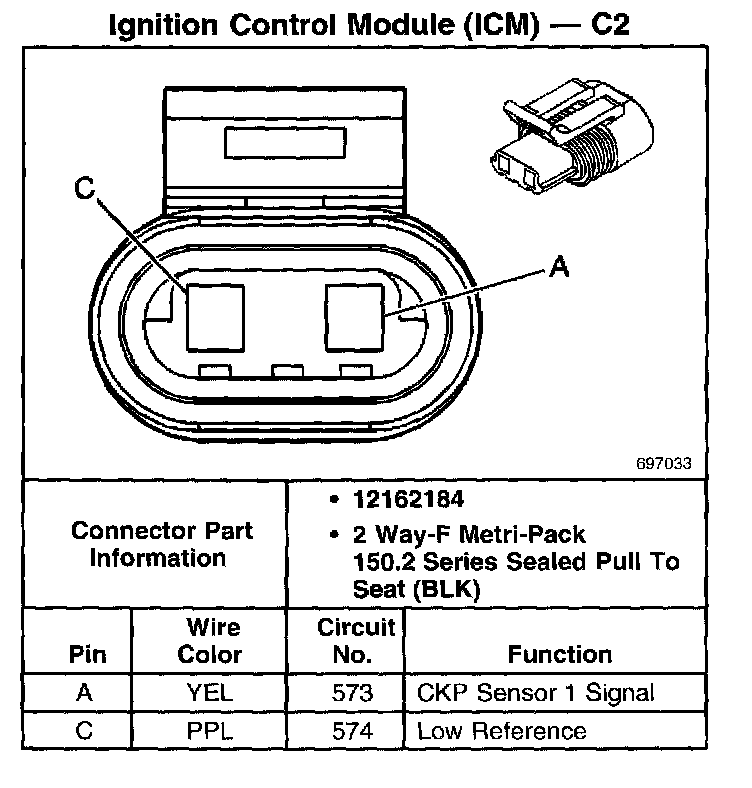

Idle Air Control (ICM) - C2:

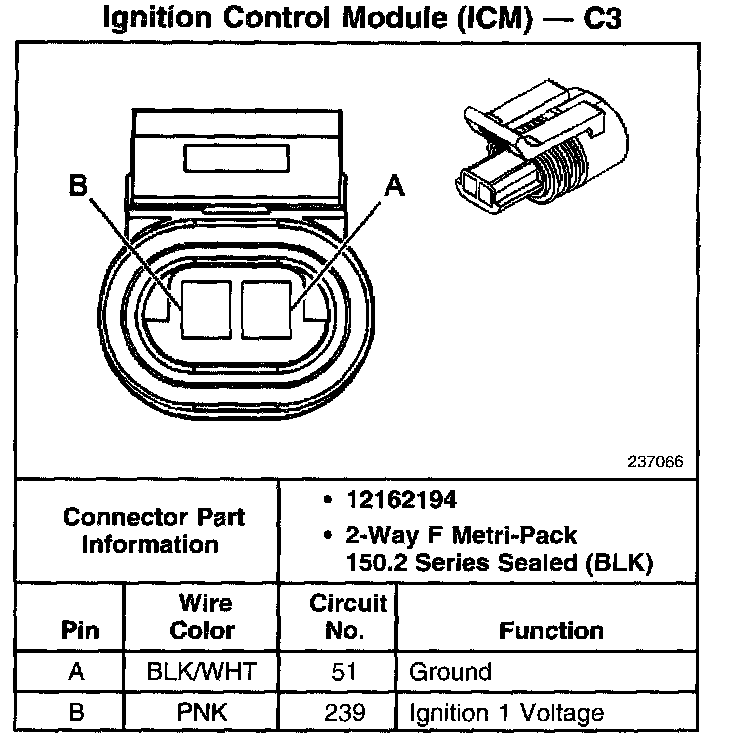

Ignition Control Module (ICM) - C3:
