Keyless Entry Receiver: Diagrams

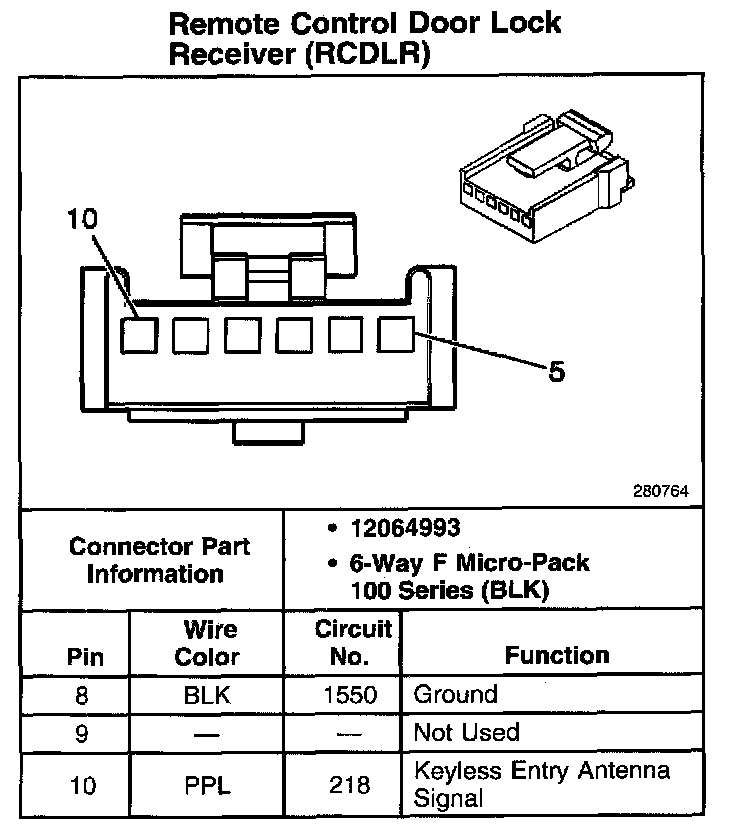

Remote Control Door Lock Receiver (RCDLR) Part 1:

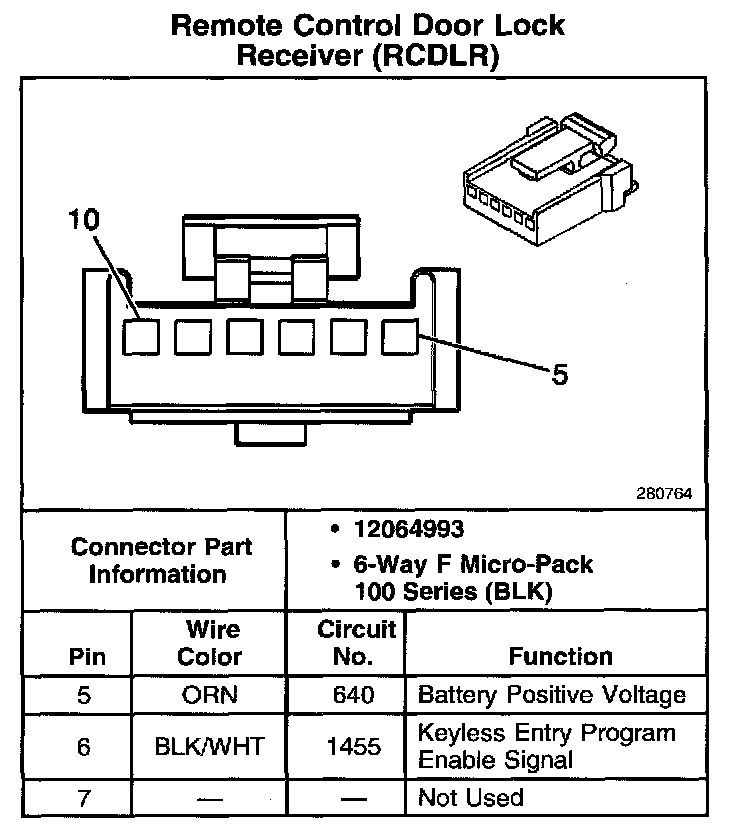

Remote Control Door Lock Receiver (RCDLR) Part 2:
