AF ECU Function Parameters

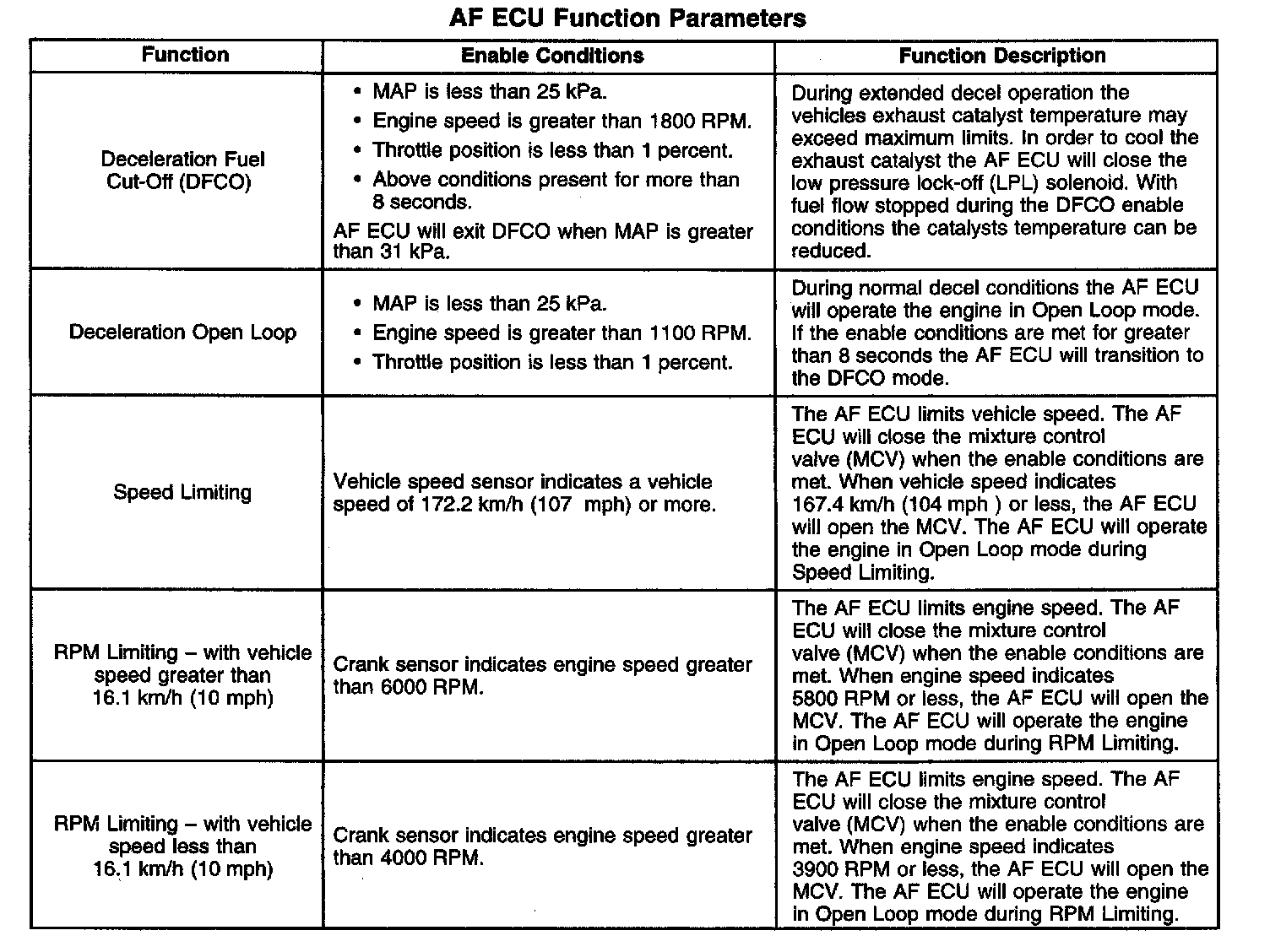

AF ECU Function Parameters (Part 1 Of 2):

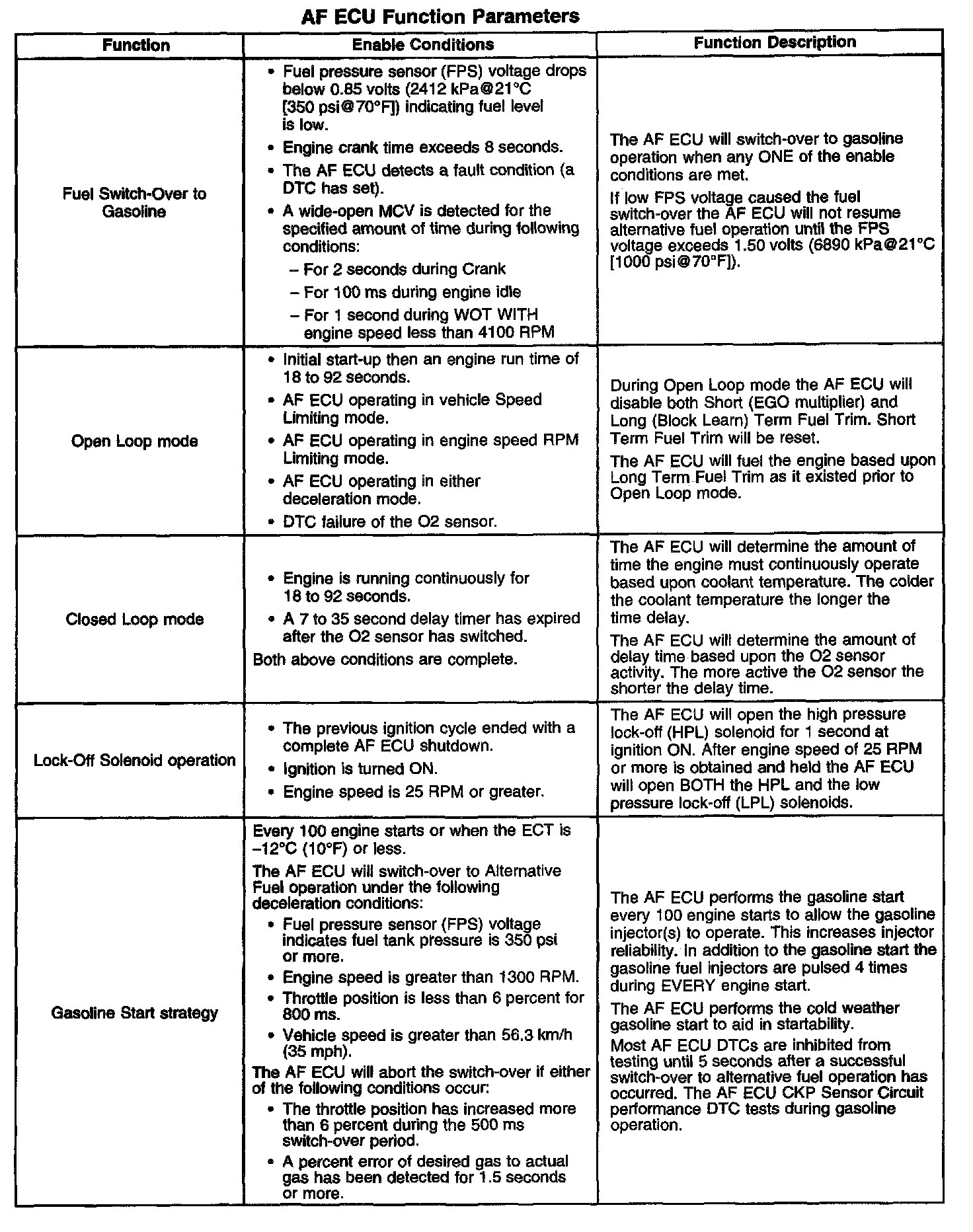

AF ECU Function Parameters (Part 2 Of 2):





The AF ECU operates in several Function modes which are defined in the AF ECU Function Parameters table.
