Home >> Pontiac >> 2001 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module >> Ignition Control Module C2

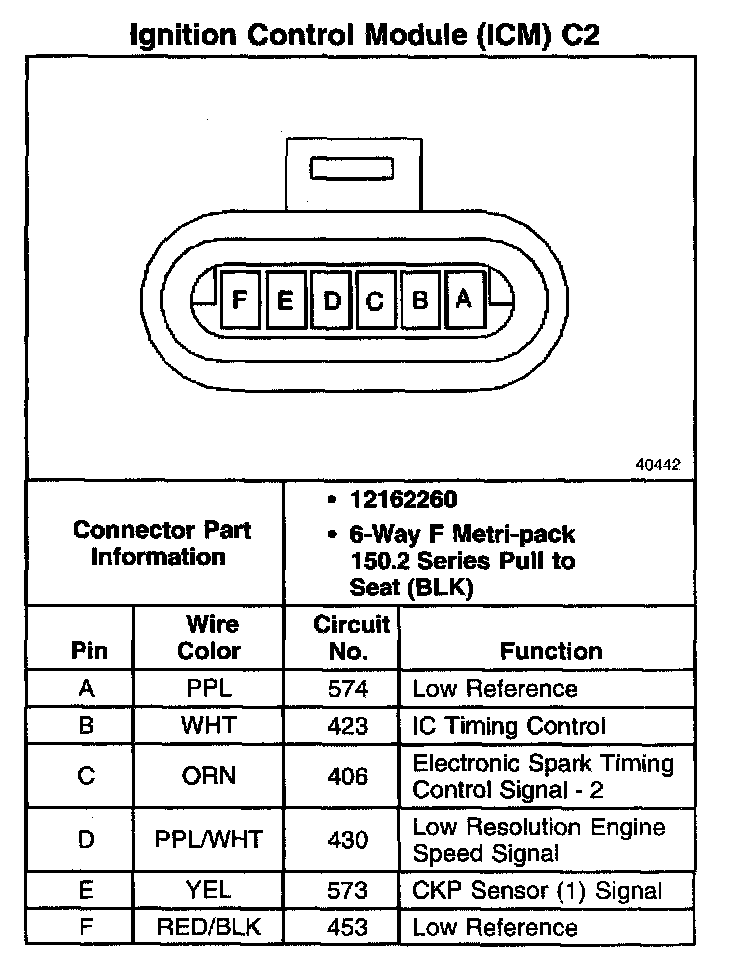

Ignition Control Module C2

Ignition Control Module (ICM) C2:
