Pontiac
>>
2001
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C1
C1

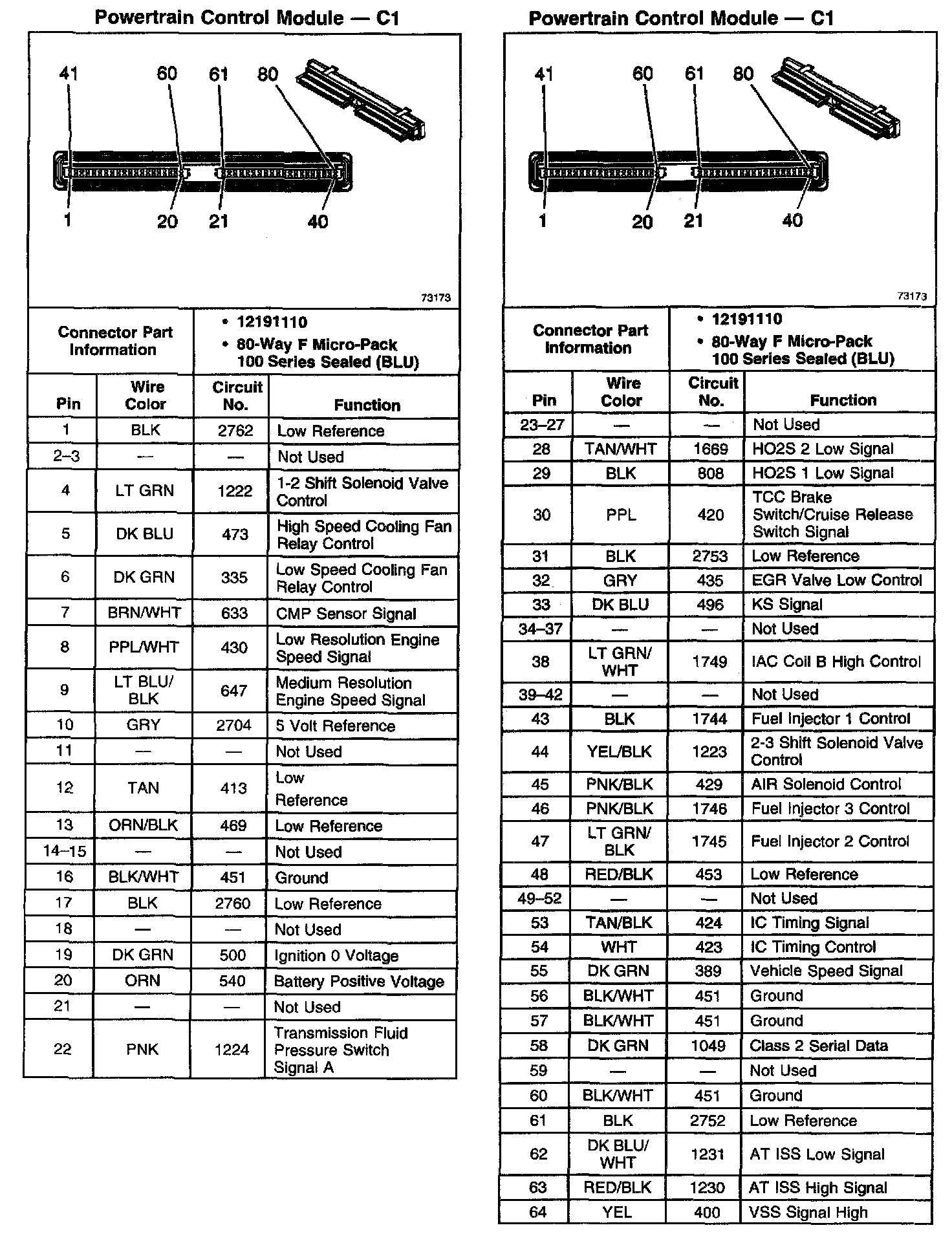

Powertrain Control Module - C1 (Part 1 Of 2):

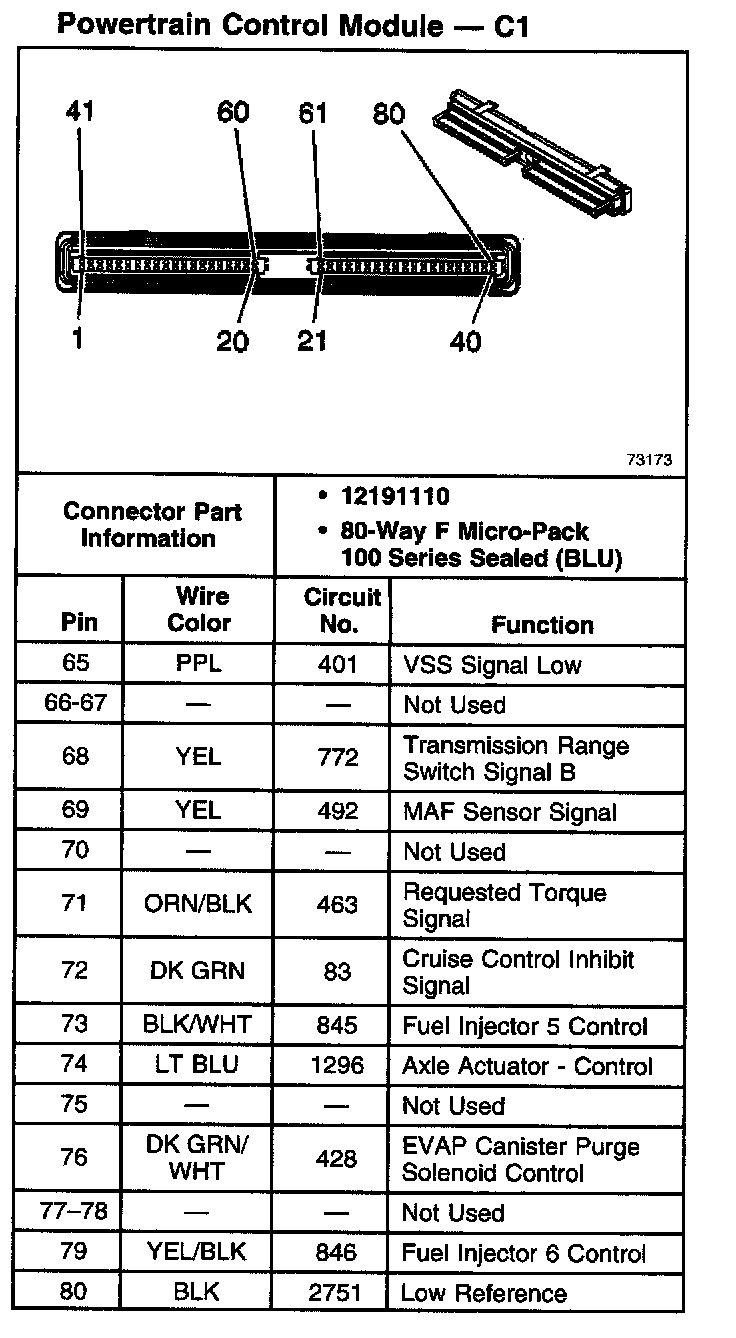

Powertrain Control Module - C1 (Part 2 Of 2):
