Pontiac
>>
2000
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>

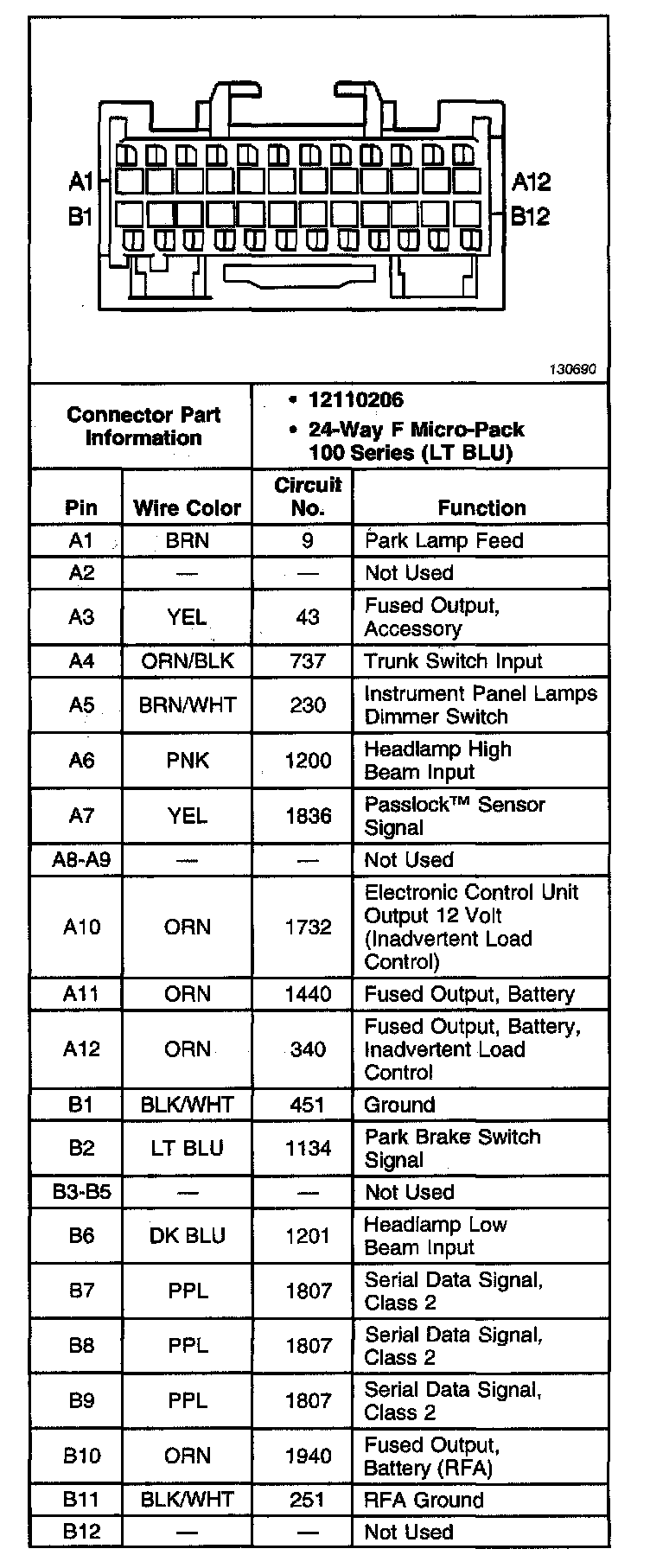

Body Control Module (BCM) C2
Body Control Module (BCM) C2
Connector View:
