Home >> Pontiac >> 2000 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2

C2

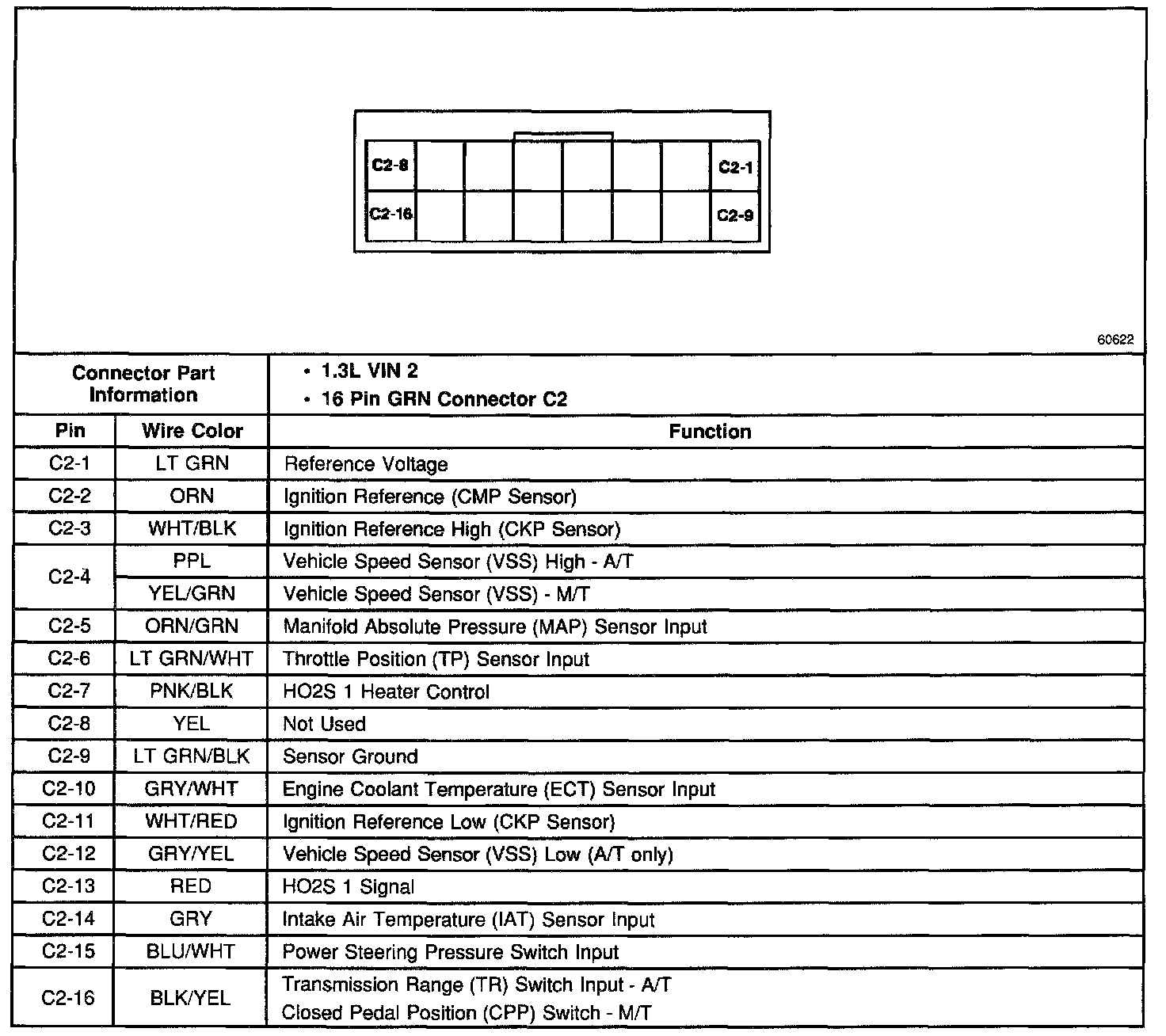

Back View Of The PCM Connector C2:
