Thread Repair Specifications

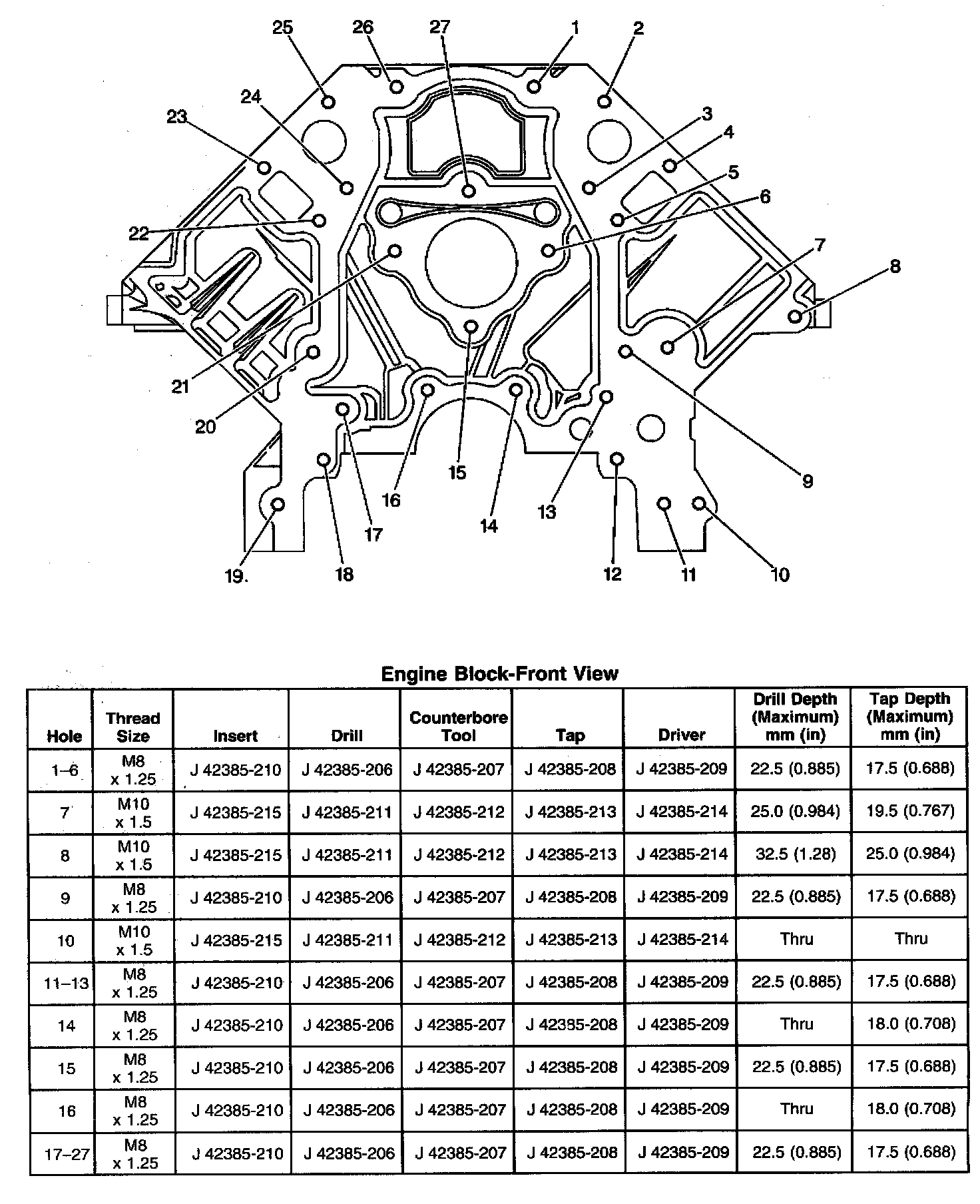

Engine Block-Front View

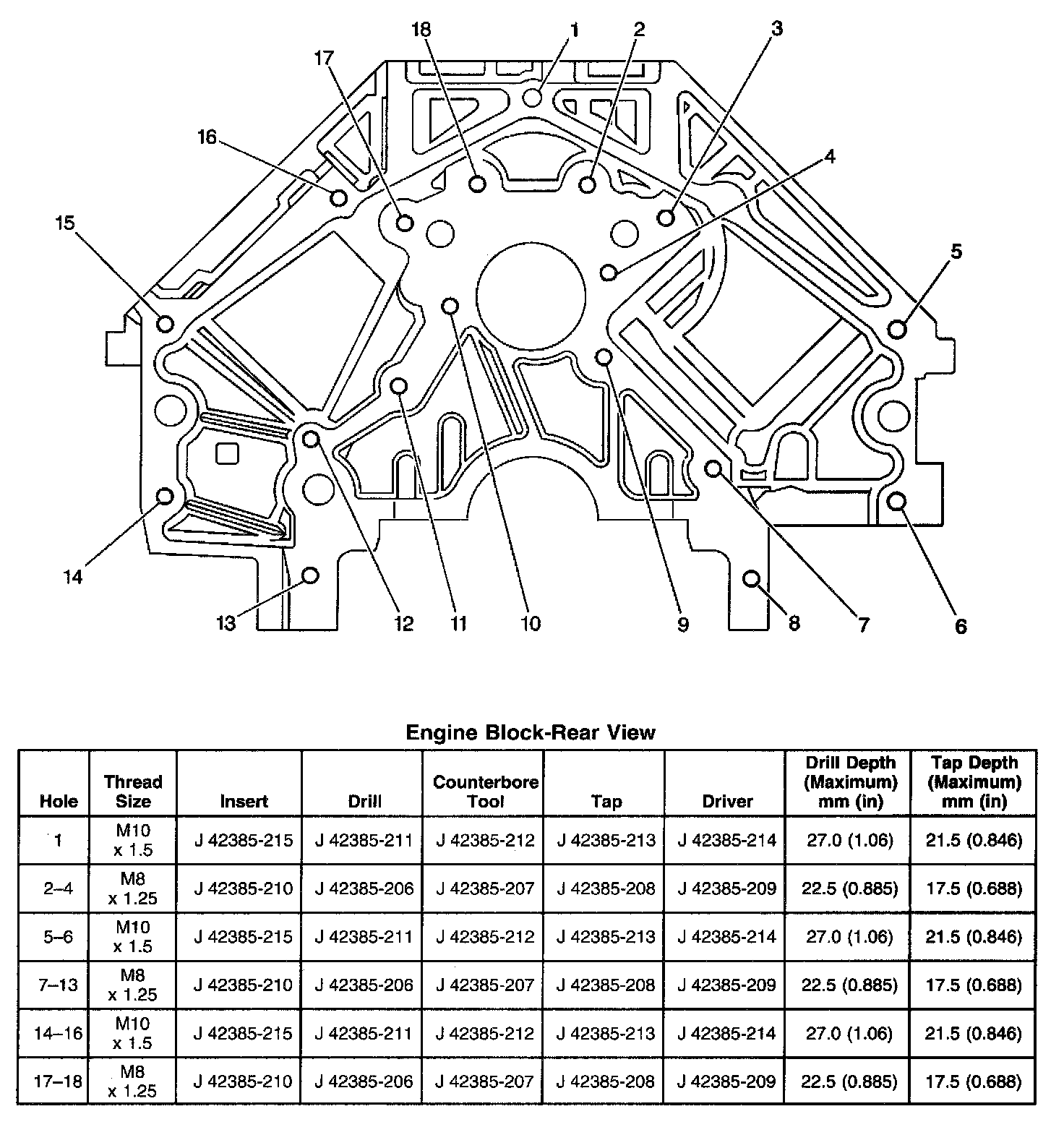

Engine Block-Rear View

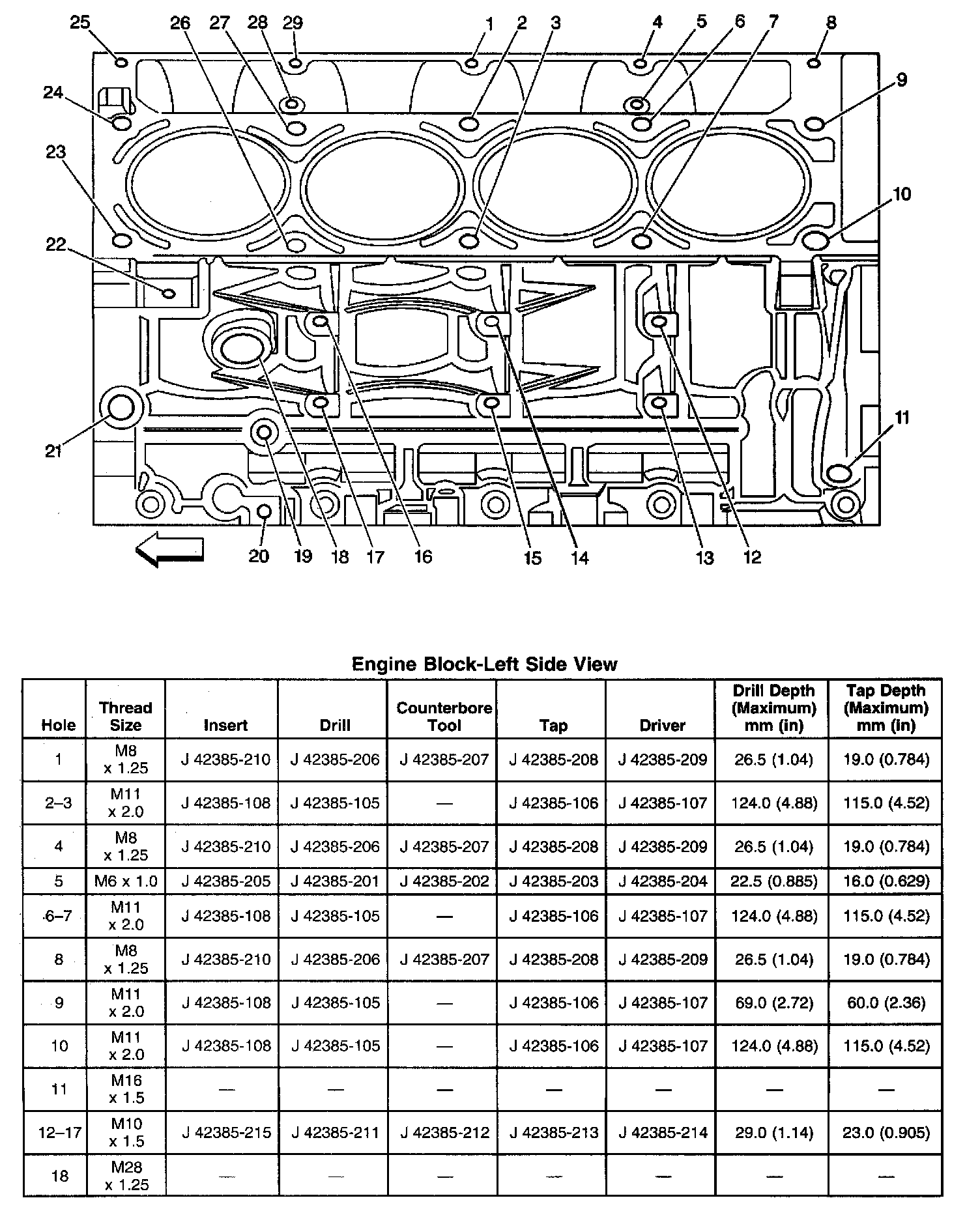

Engine Block-Left Side View

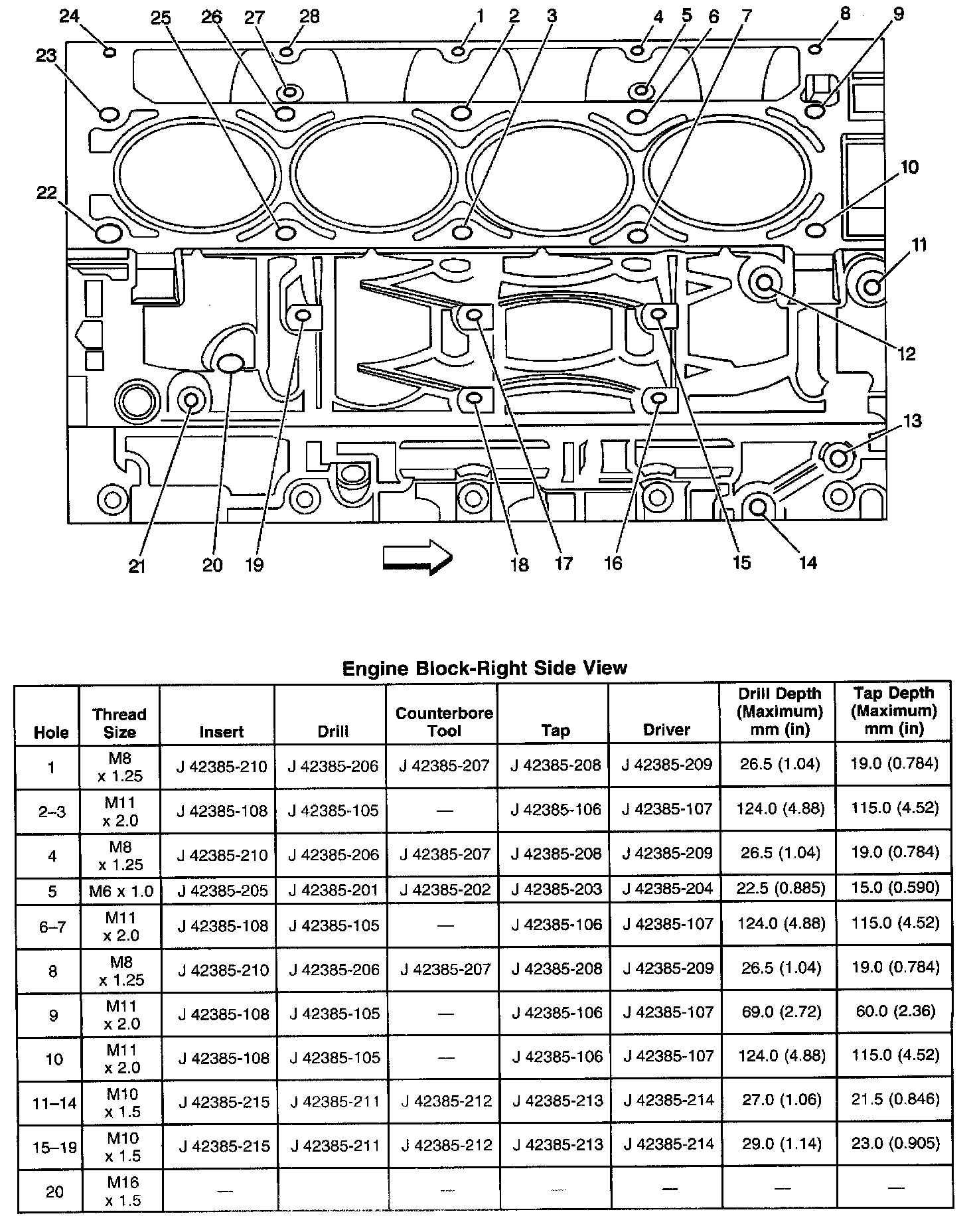

Engine Block-Right Side View

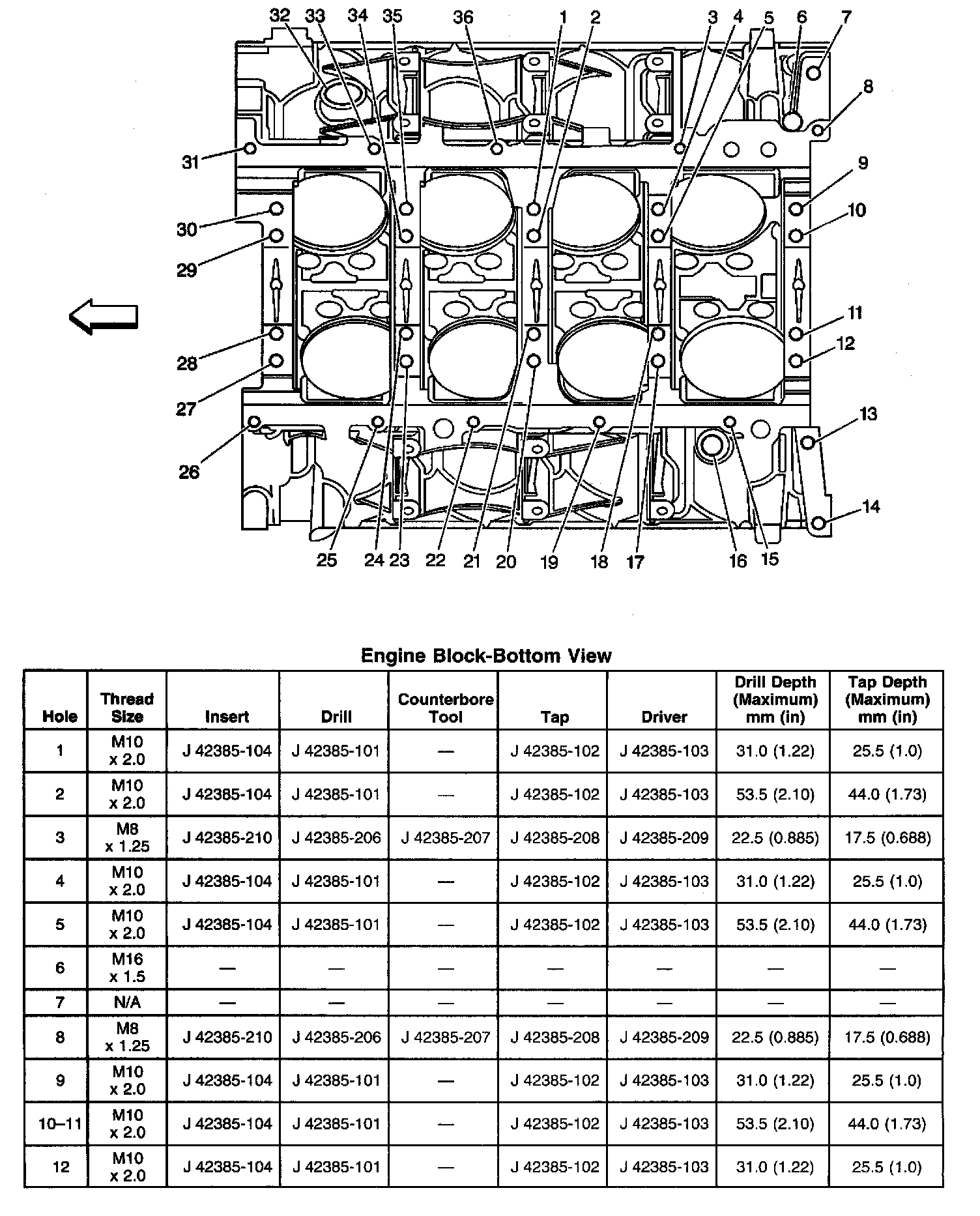

Engine Block-Bottom View

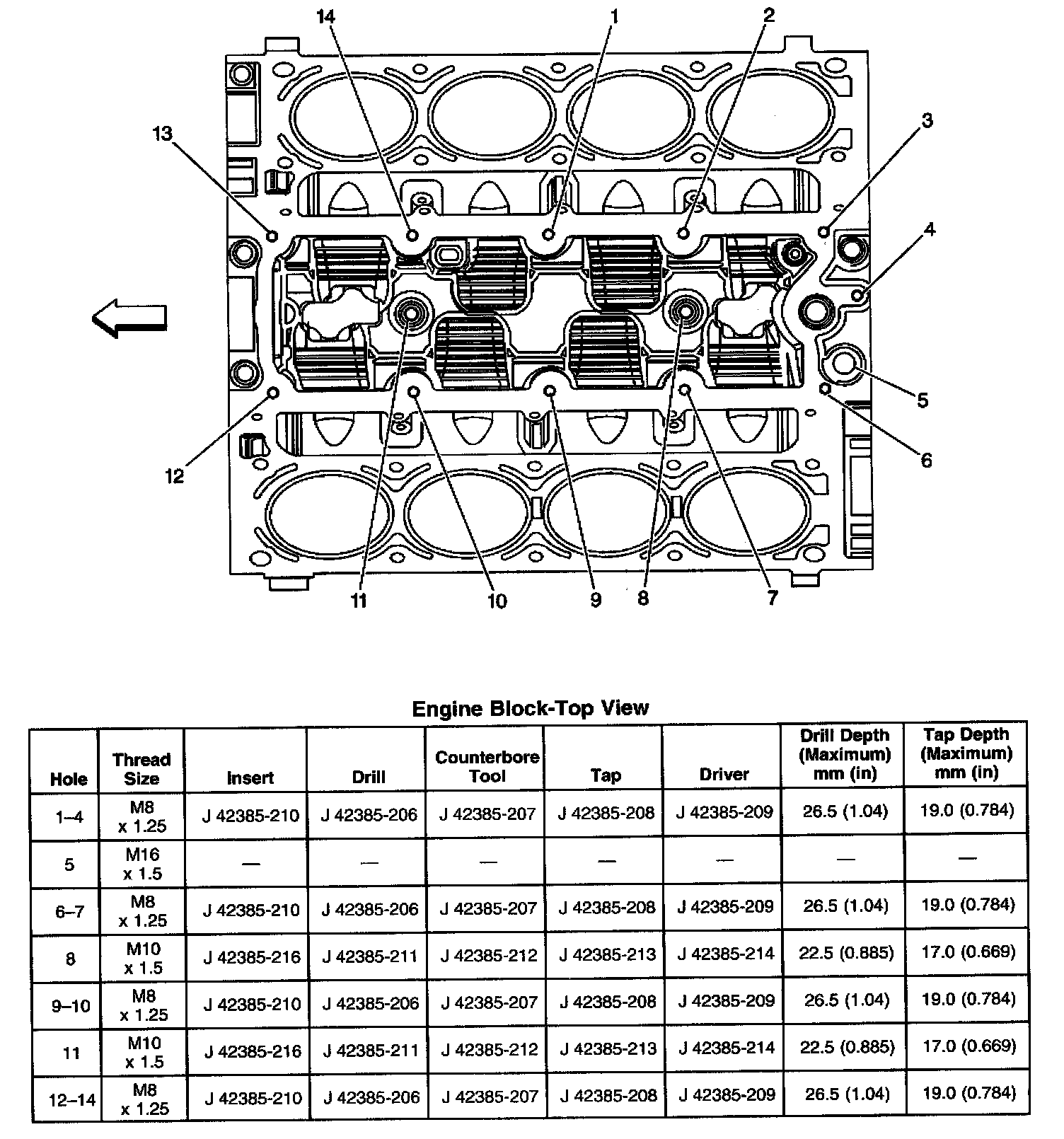

Engine Block-Top View

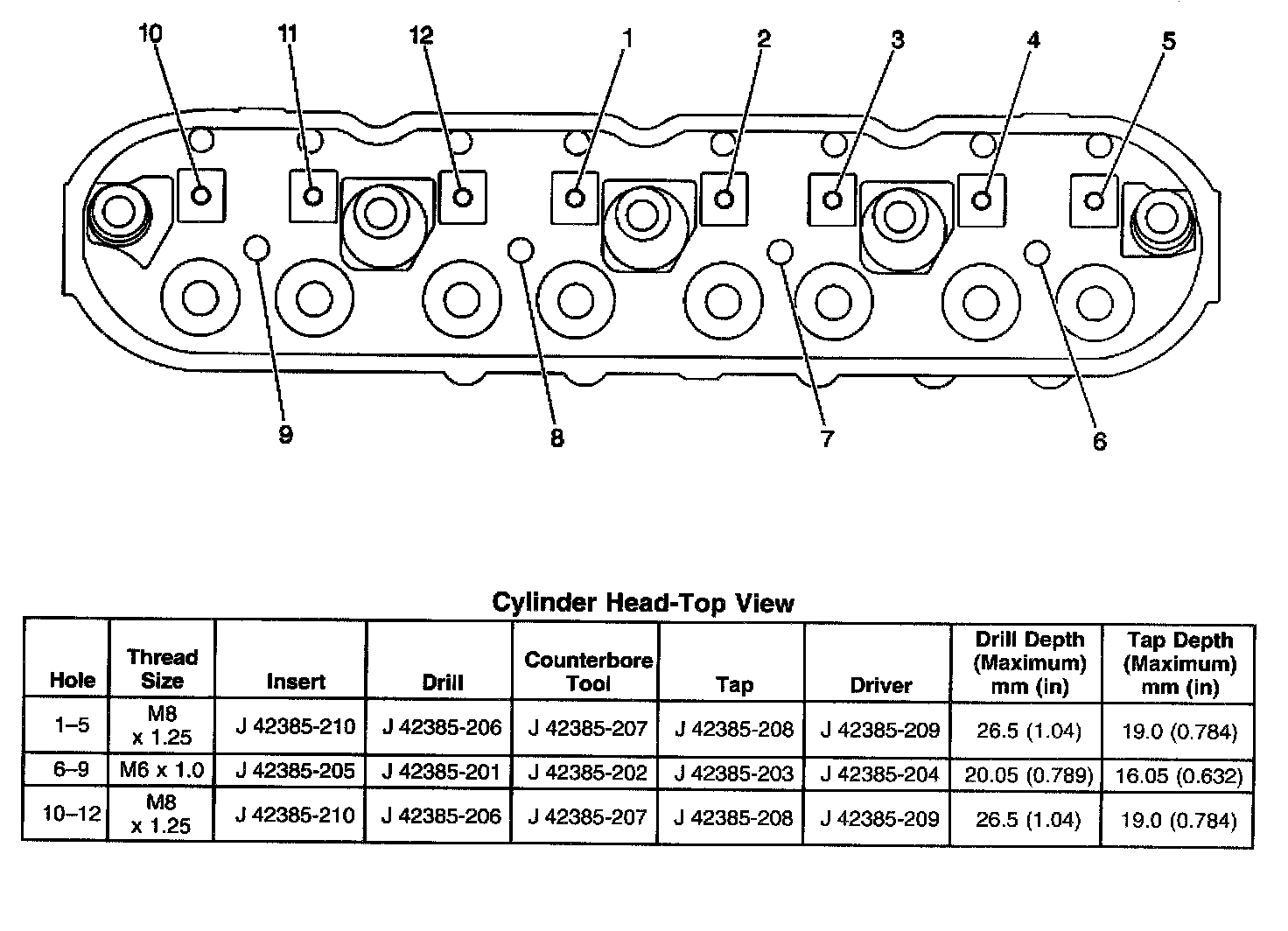

Cylinder Head-Top View

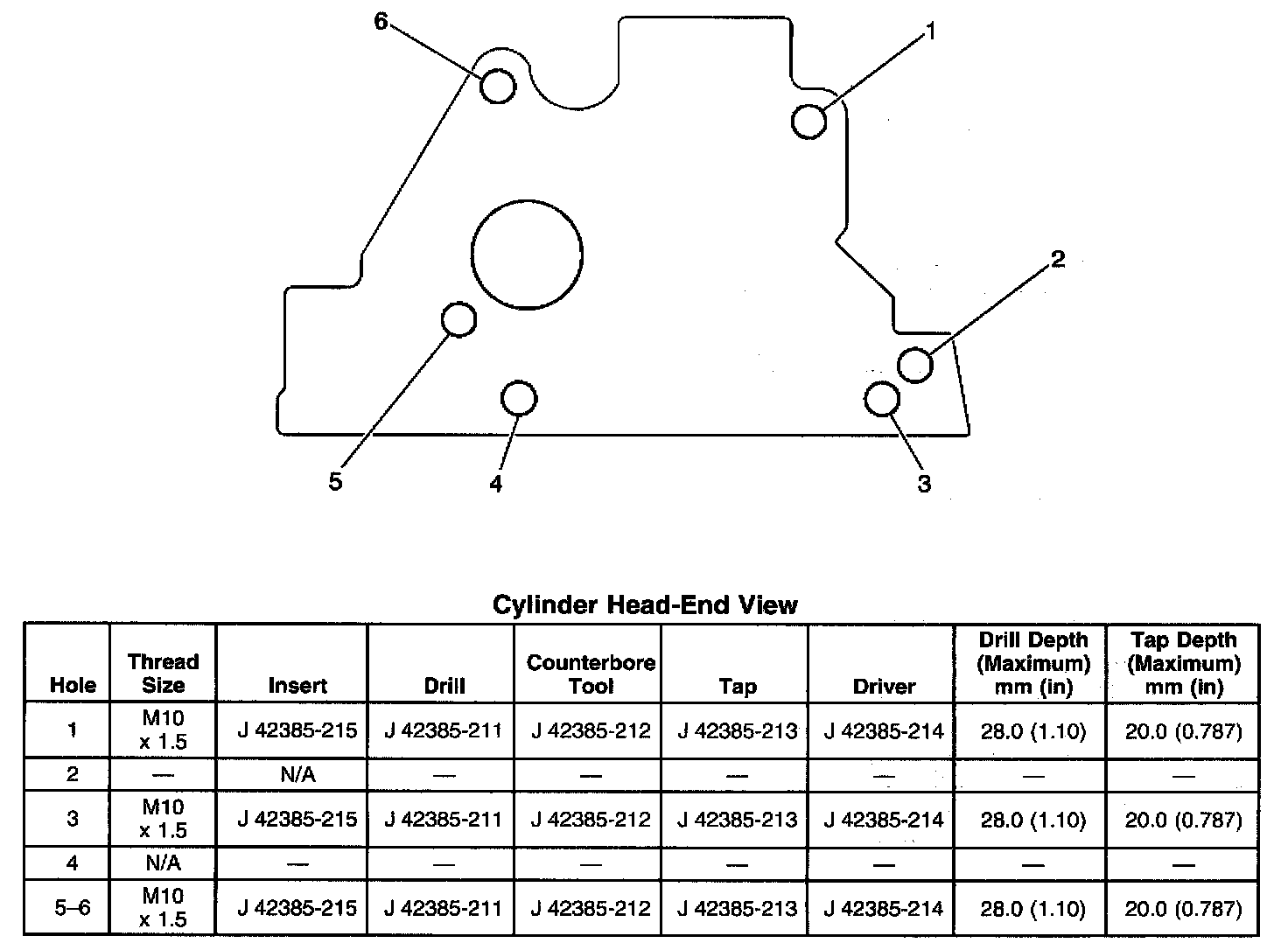

Cylinder Head-End View

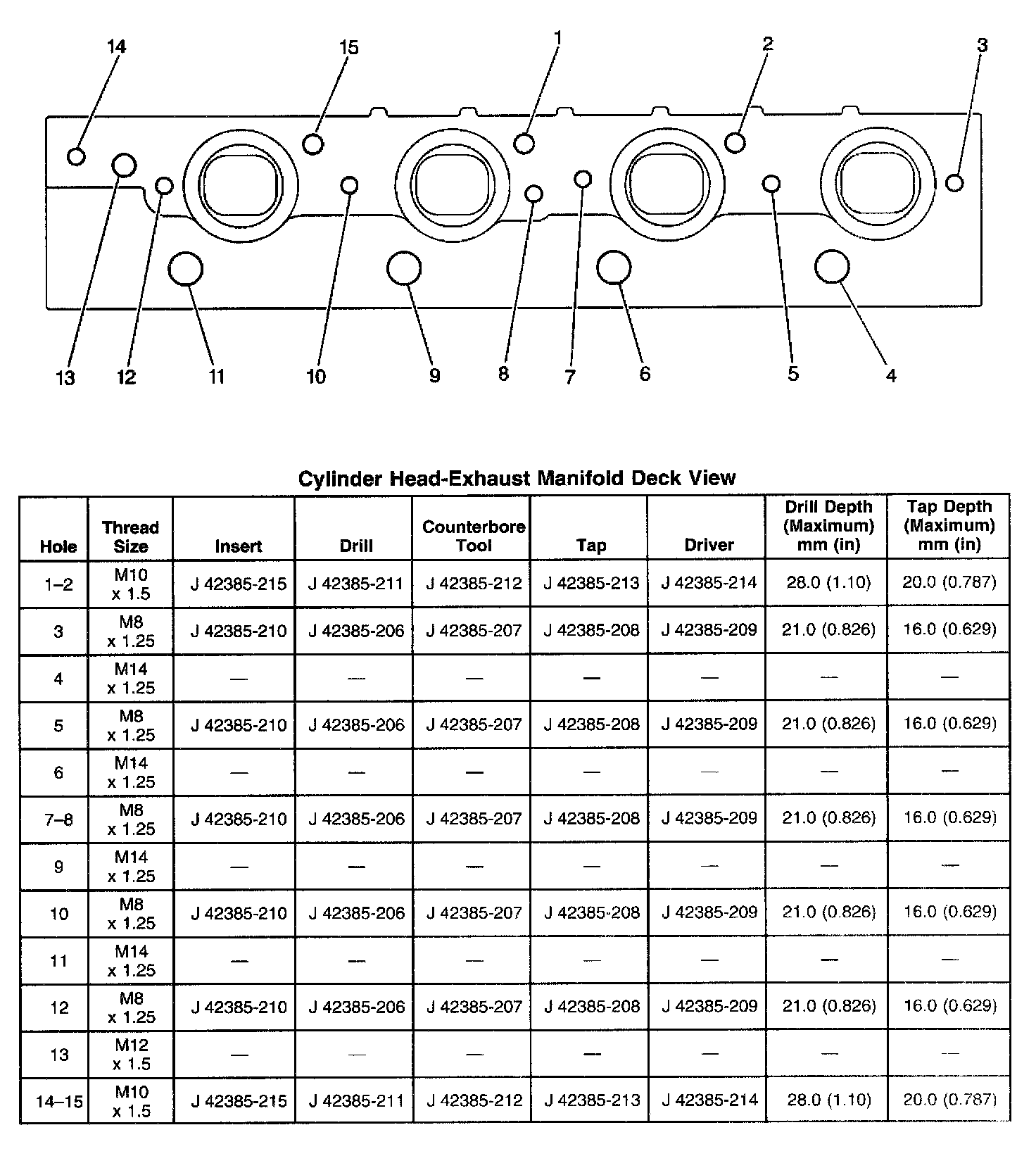

Cylinder Head-Exhaust Manifold Deck View

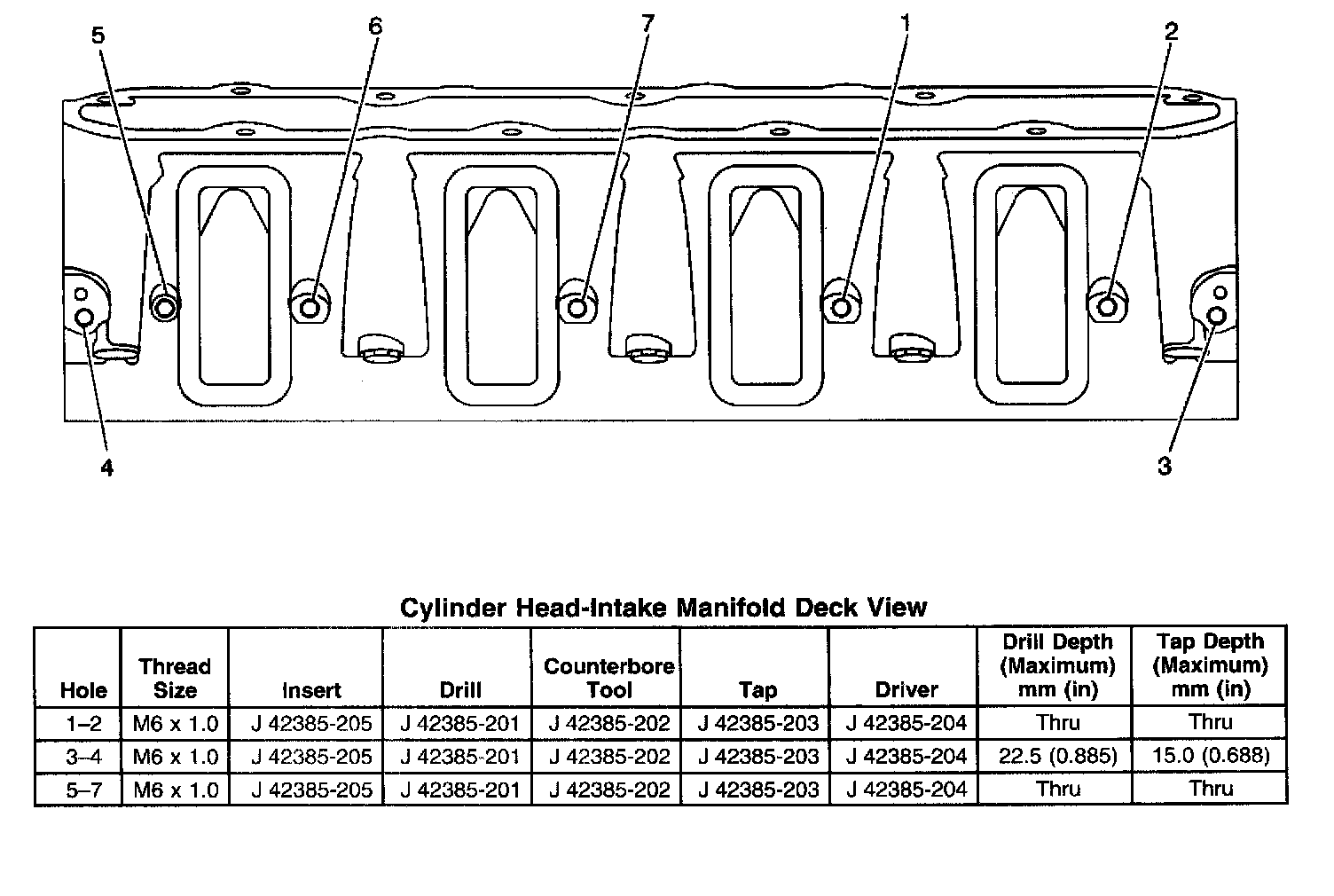

Cylinder Head-Intake Manifold Deck View
