Home >> Pontiac >> 2000 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

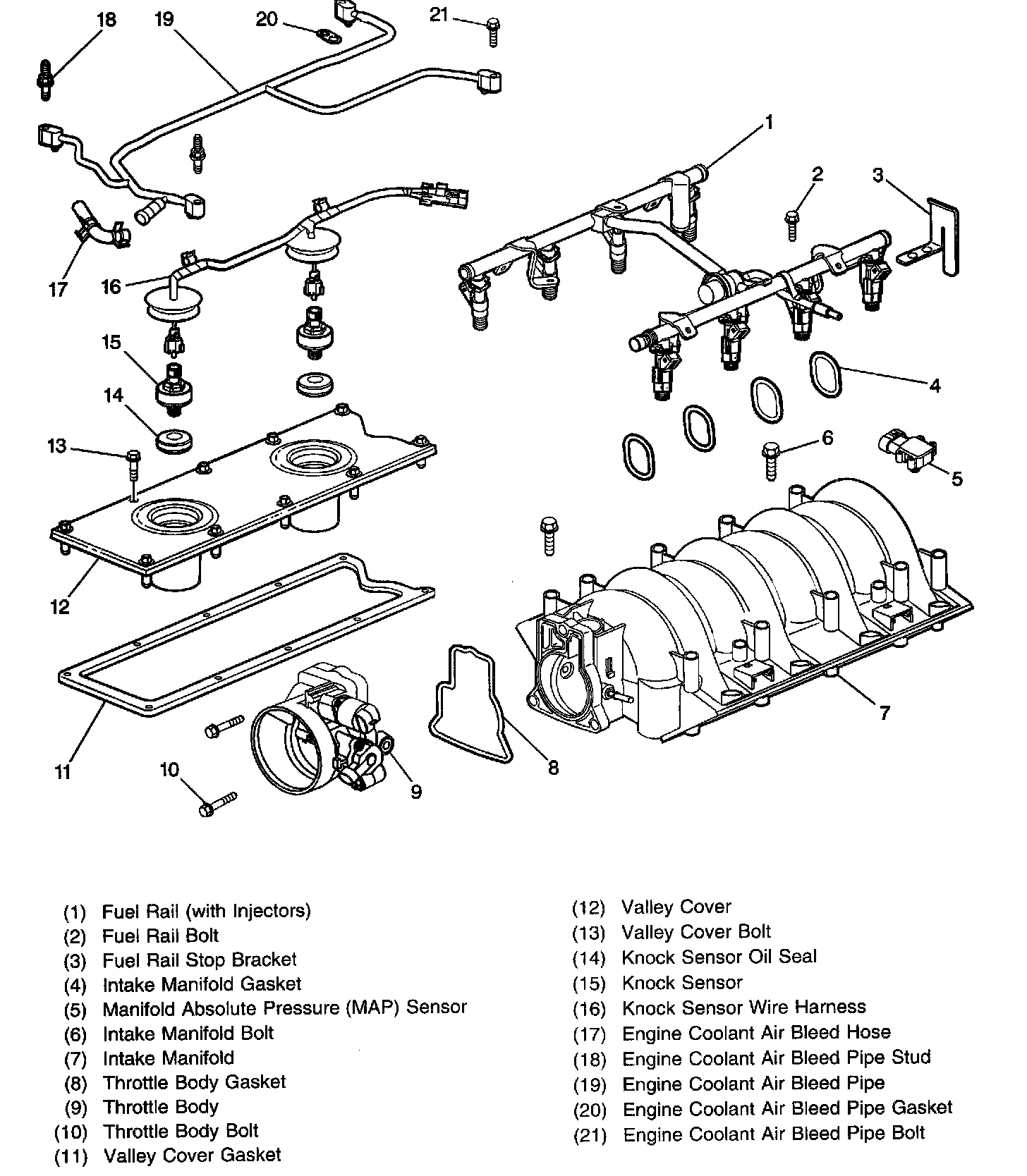

Intake Manifold/Upper Engine

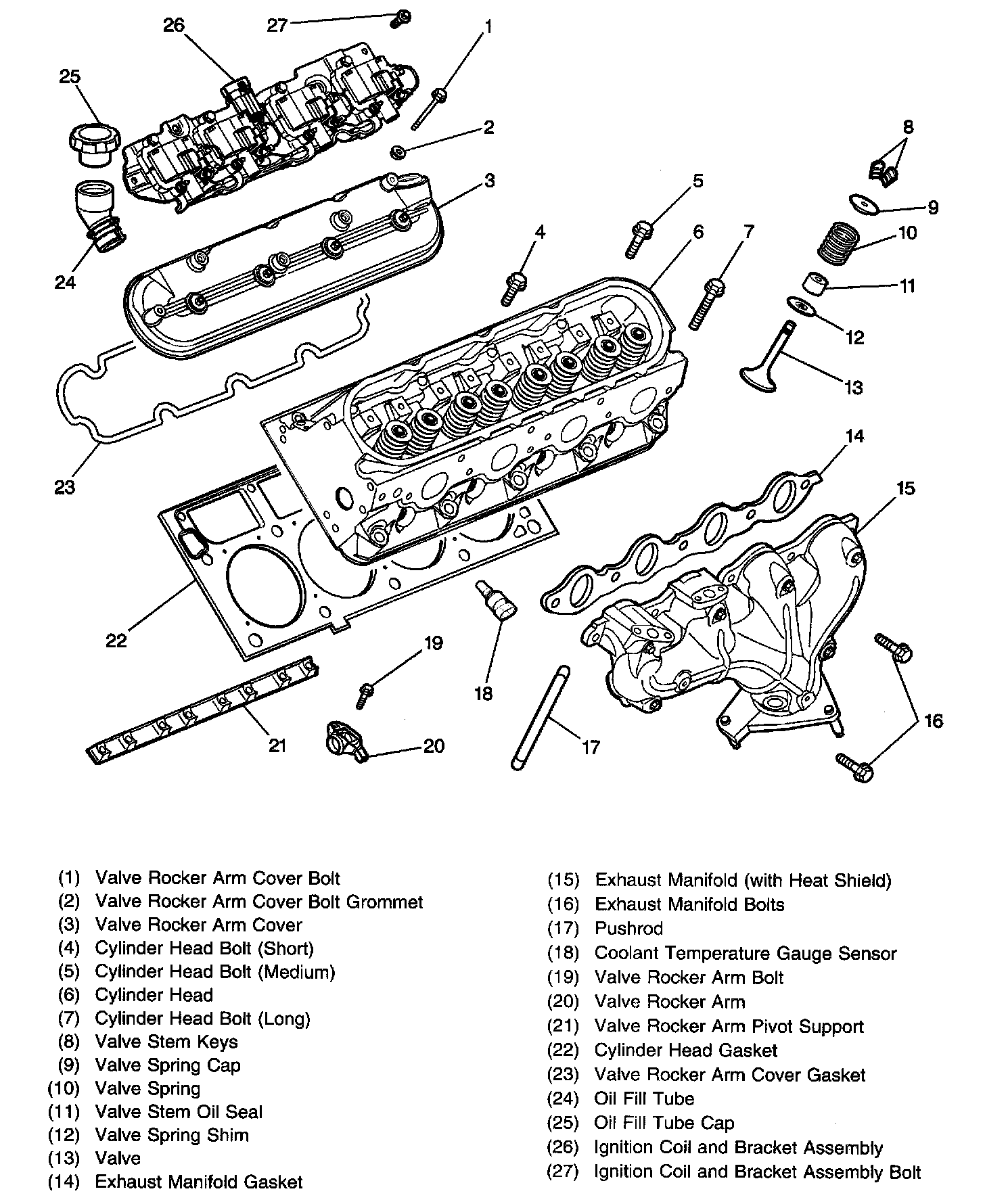

Cylinder Head/Upper Engine

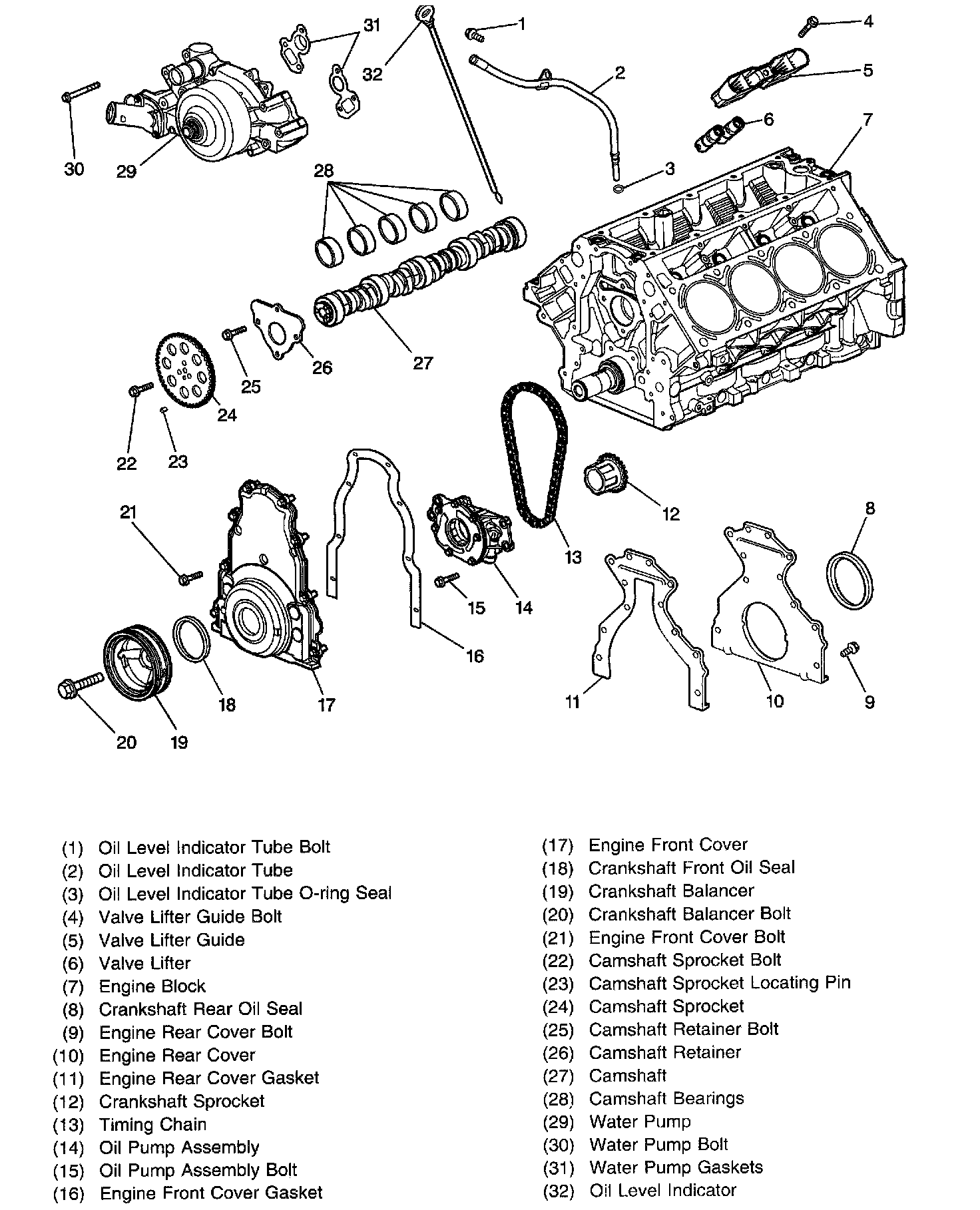

Lower Front of Engine

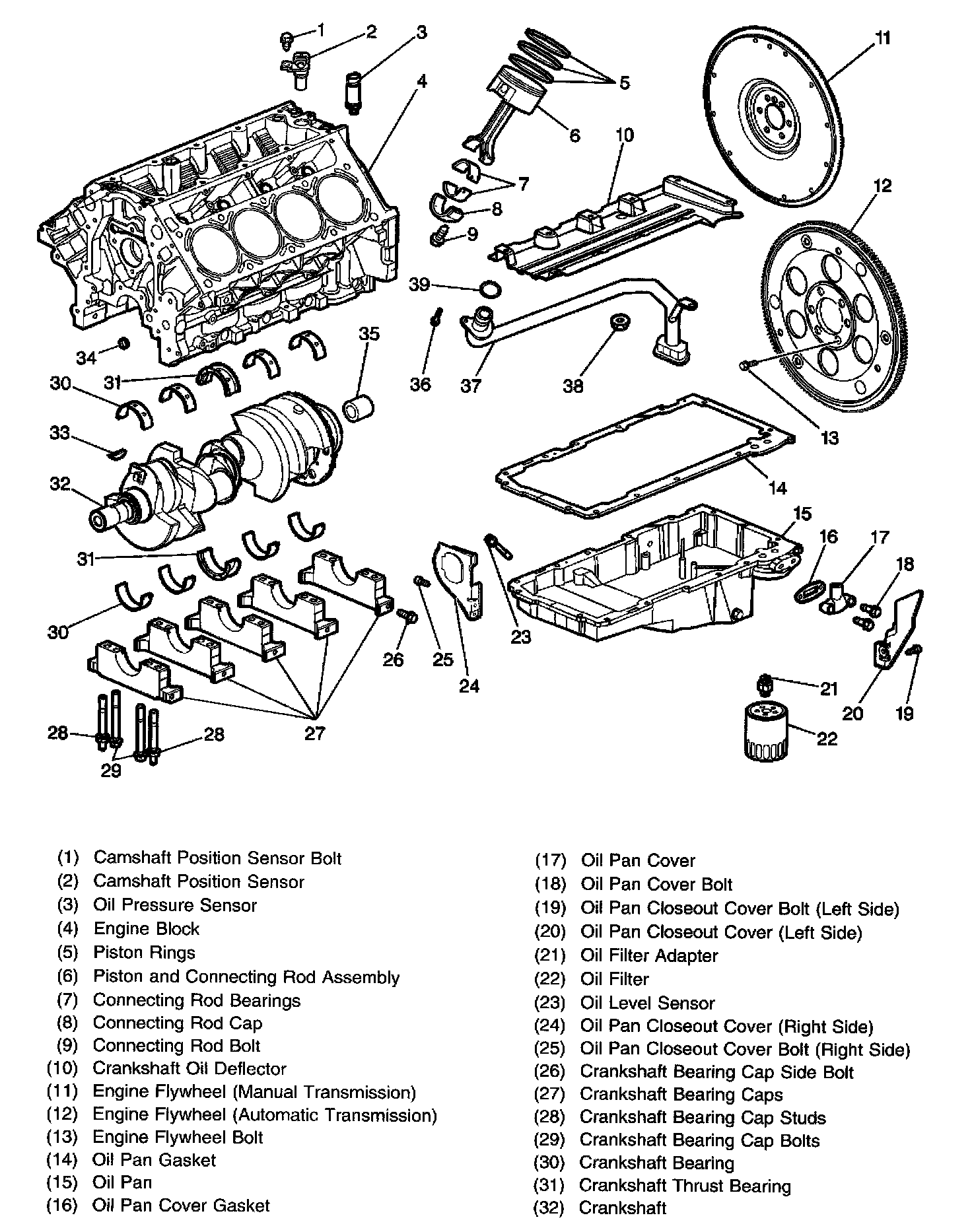

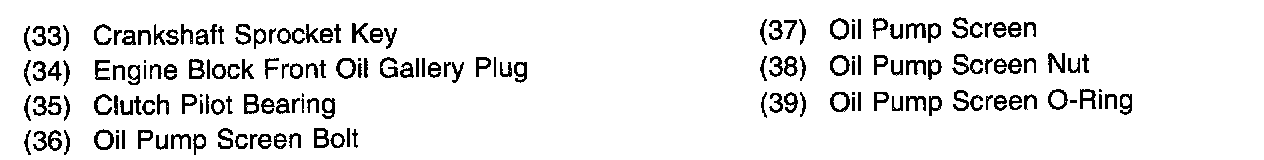

Lower Engine Assembly

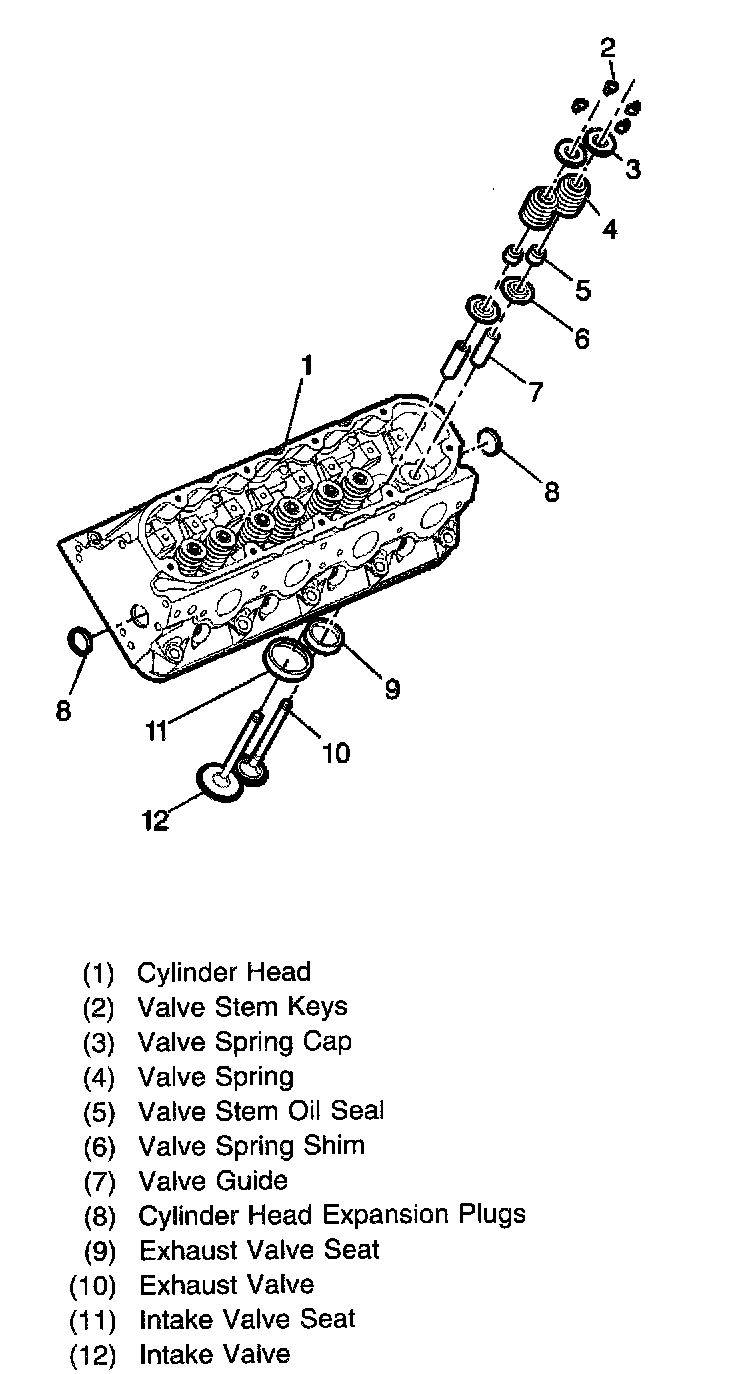

Cylinder Head Assembly (Aluminum)

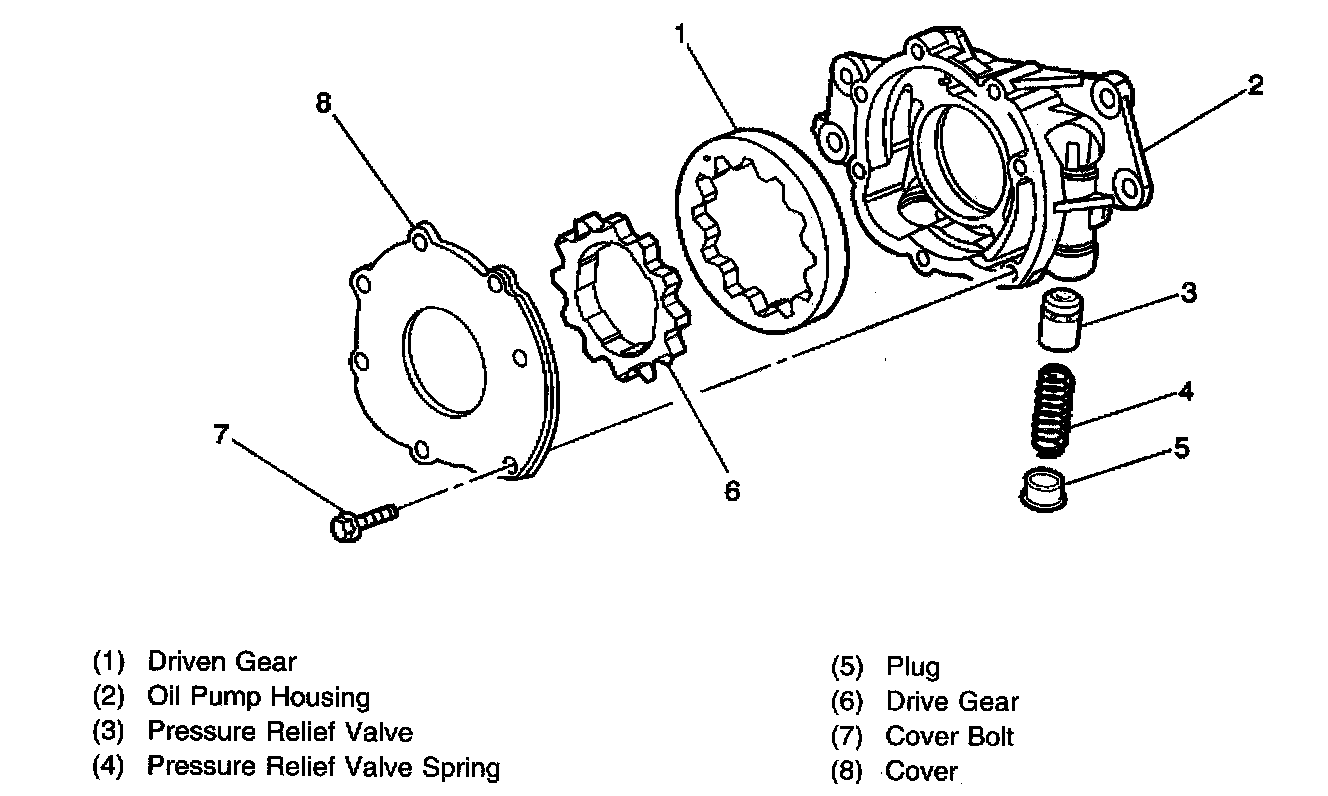

Oil Pump Assembly
