Body Control Module, Ignition Switch and Instrument Cluster
Body Control Module, Ignition Switch and Instrument Cluster

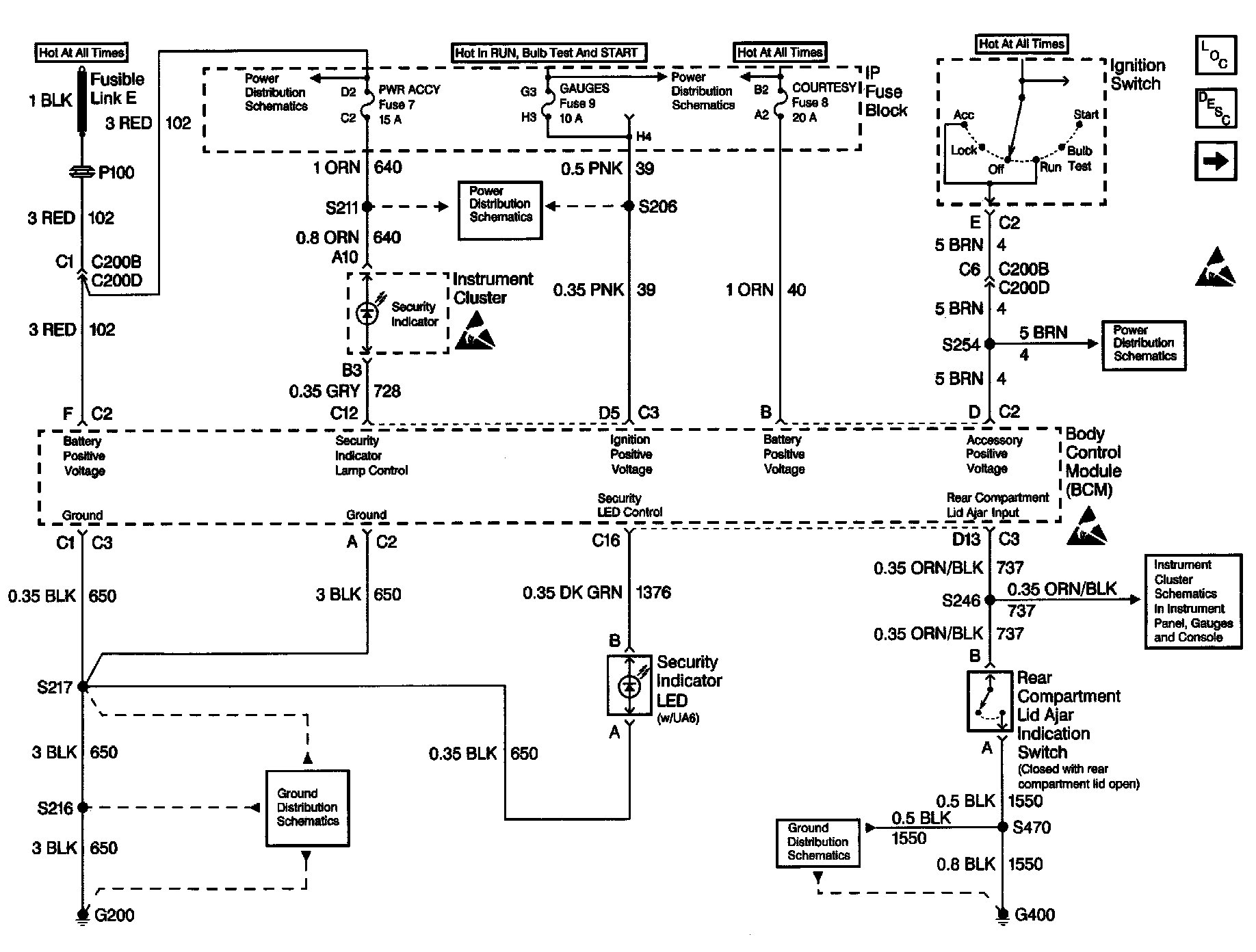

Body Control Module Schematics: Body Control Module, Ignition Switch And Instrument Cluster:
