C2 (CLR)
C2 (CLR)

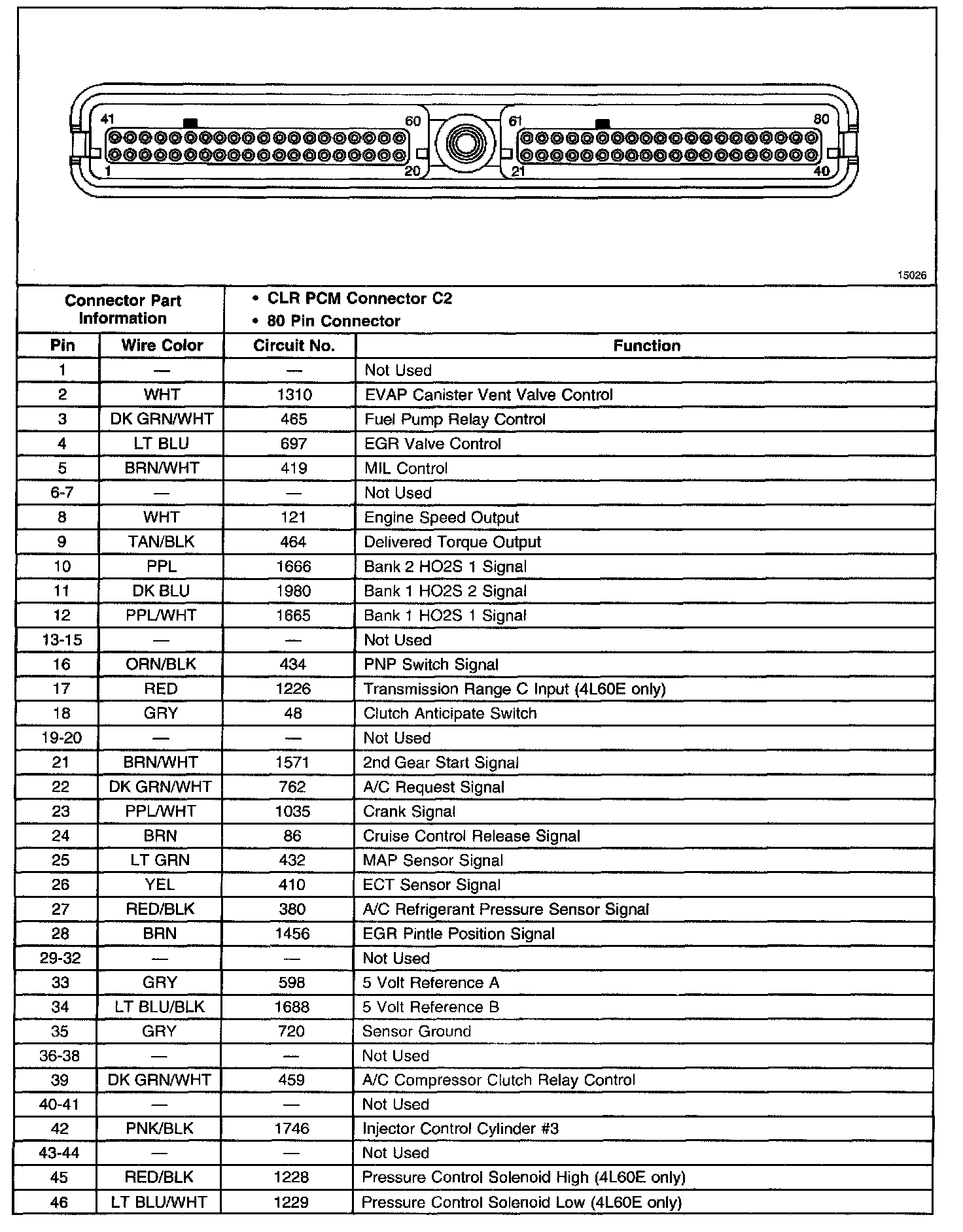

Powertrain Control Module Connector C2 (CLR) End View (Part 1 Of 2):

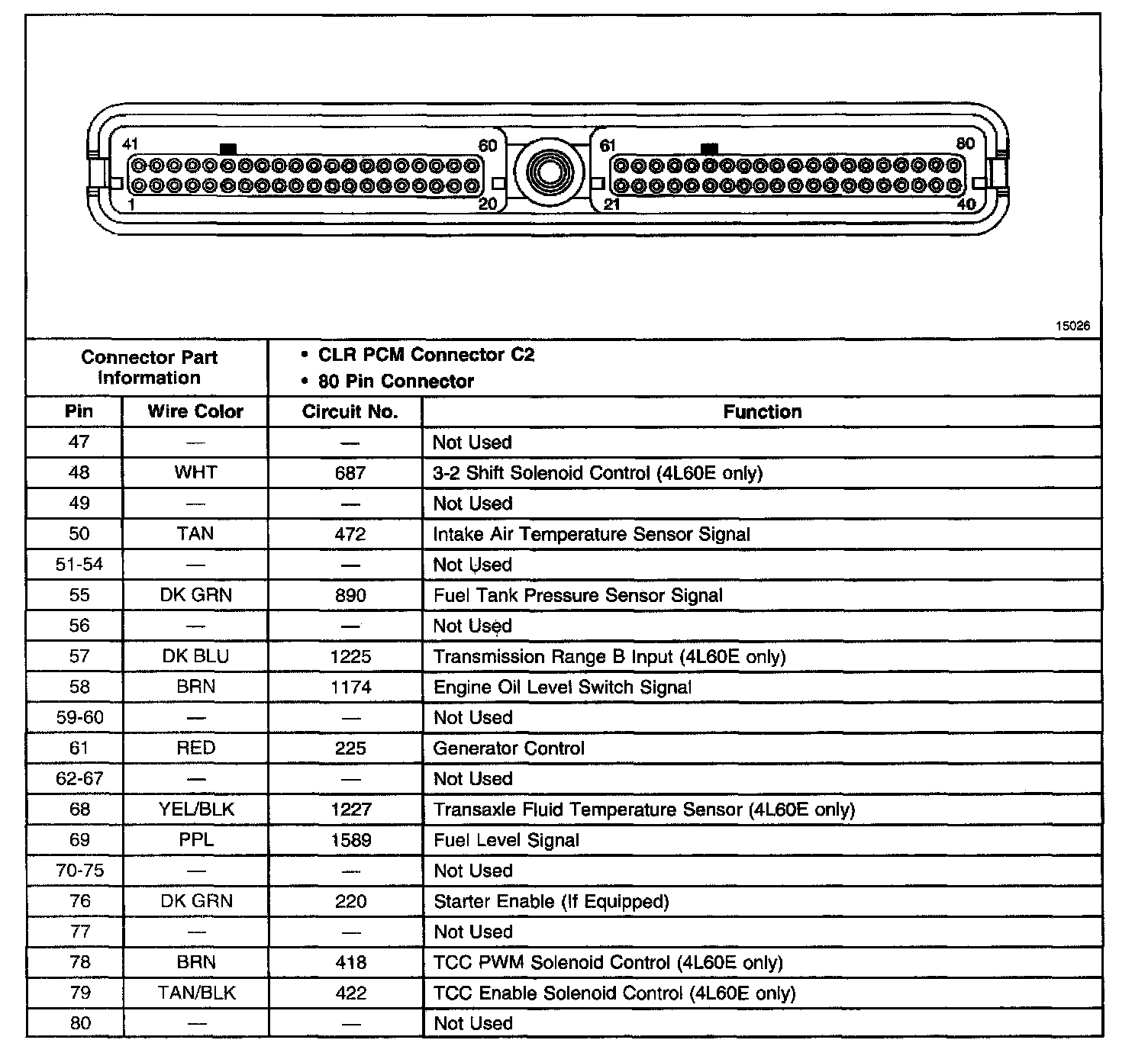

Powertrain Control Module Connector C2 (CLR) End View (Part 2 Of 2):
