Home >> Pontiac >> 2000 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

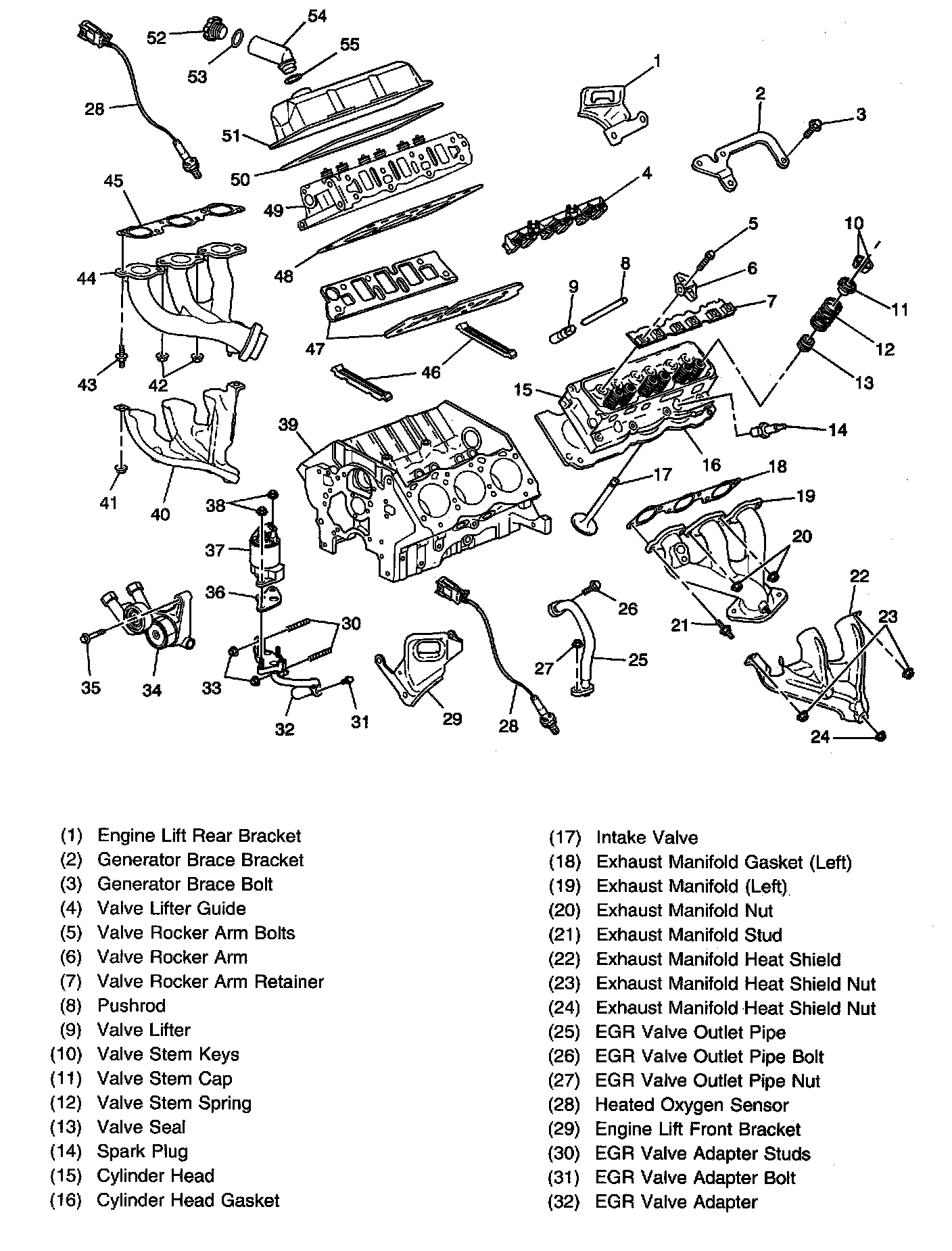

Cylinder Head and Components

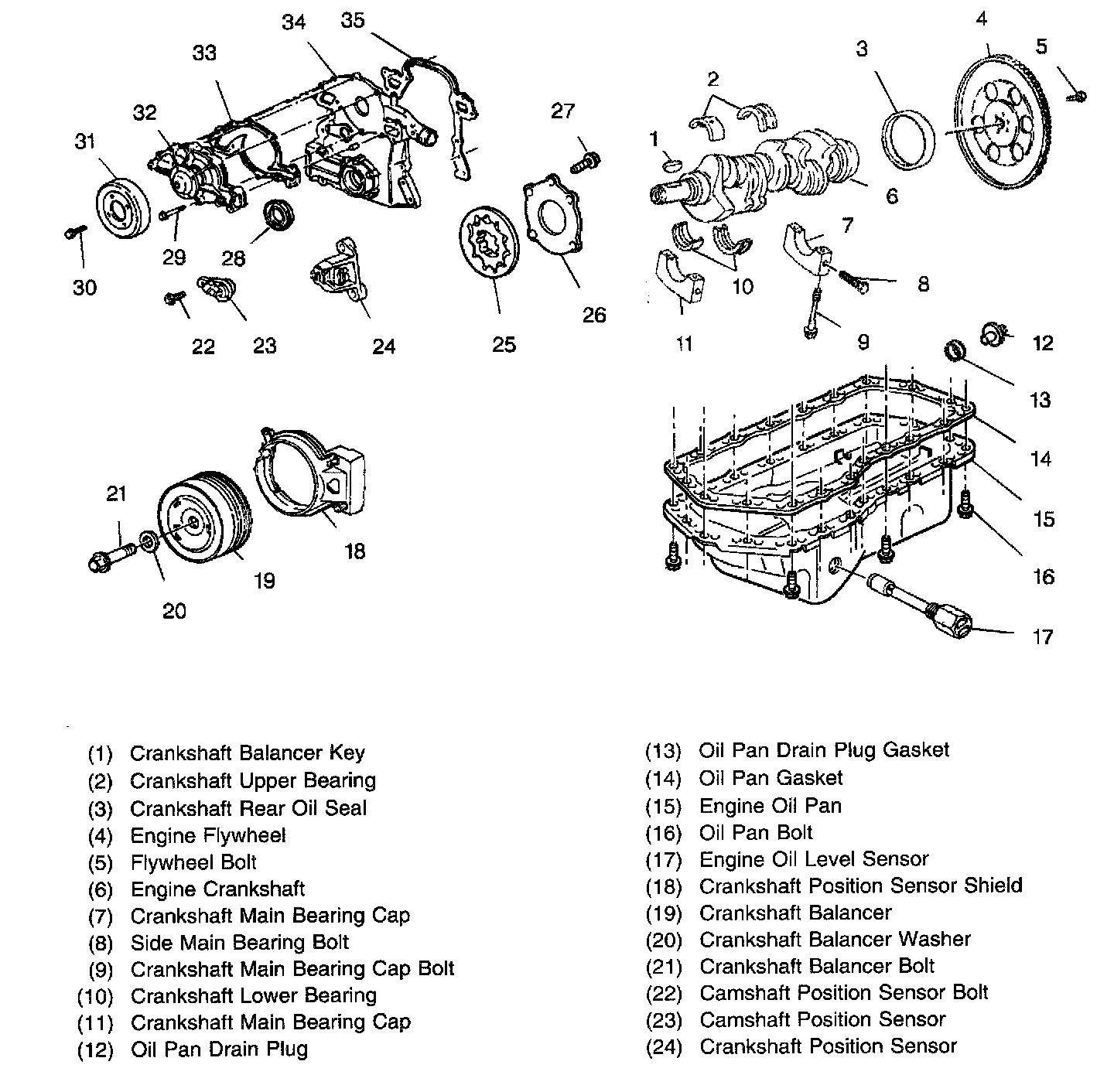

Crankshaft and Components

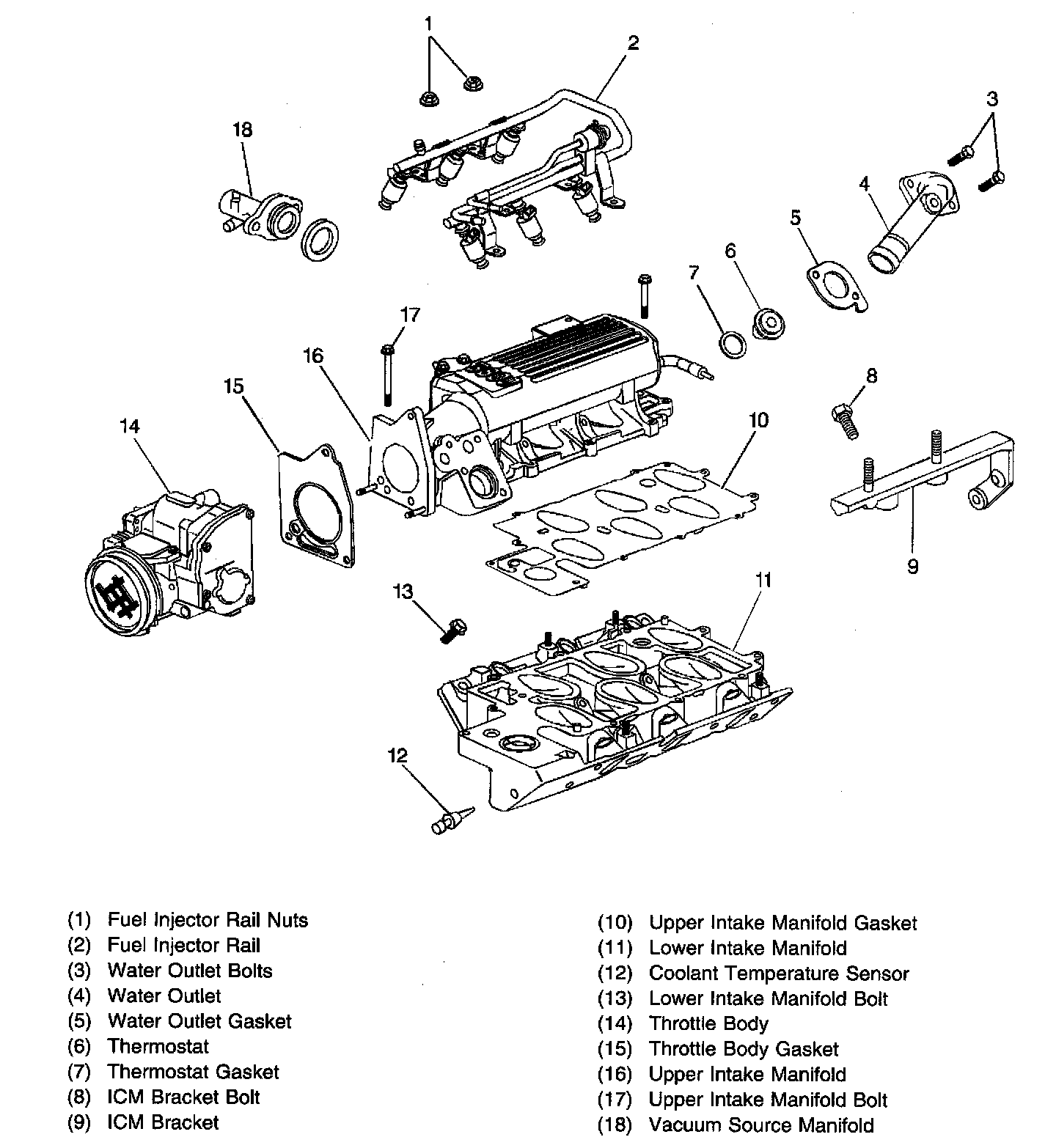

Intake Manifolds and Components

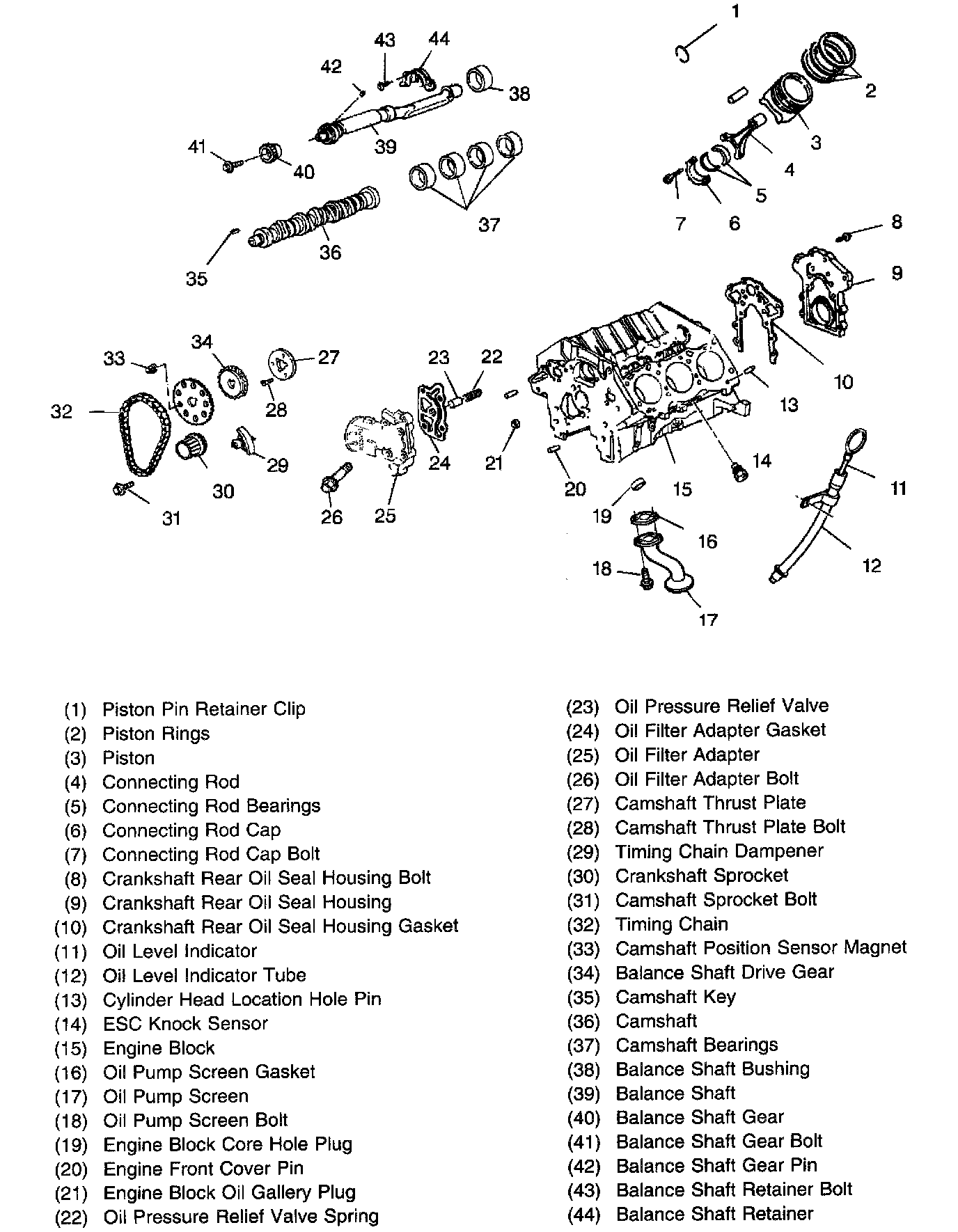

Piston and Components
