Home >> Pontiac >> 2000 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

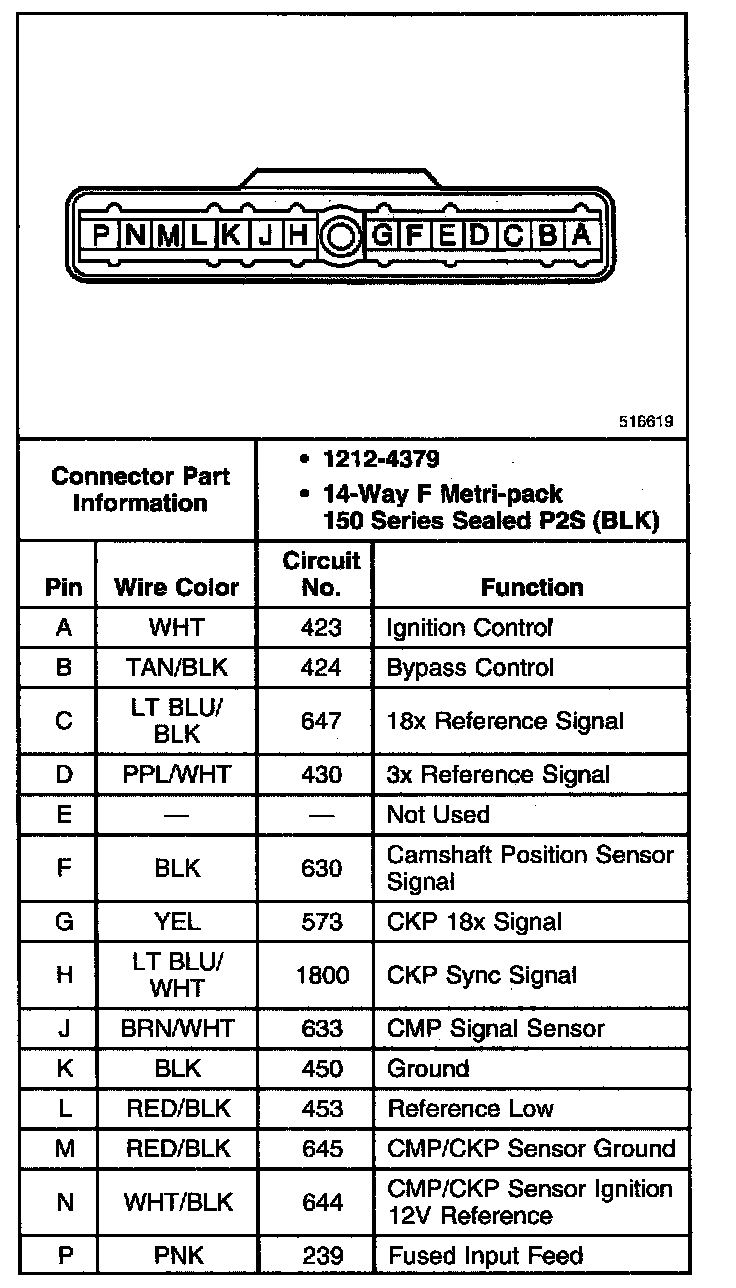

Ignition Control Module

Electronic Ignition Control Module (ICM):
