Compressor Control Valve Assembly Removal

TOOLS REQUIRED
^ J 5403 Snap Ring Pliers
^ J 39500-B A/C Refrigerant Recovery, Recycling and Recharging (ACR4) System

1. Recover the refrigerant using the J 39500-B.
2. Remove the control valve retaining ring using the J 5403.

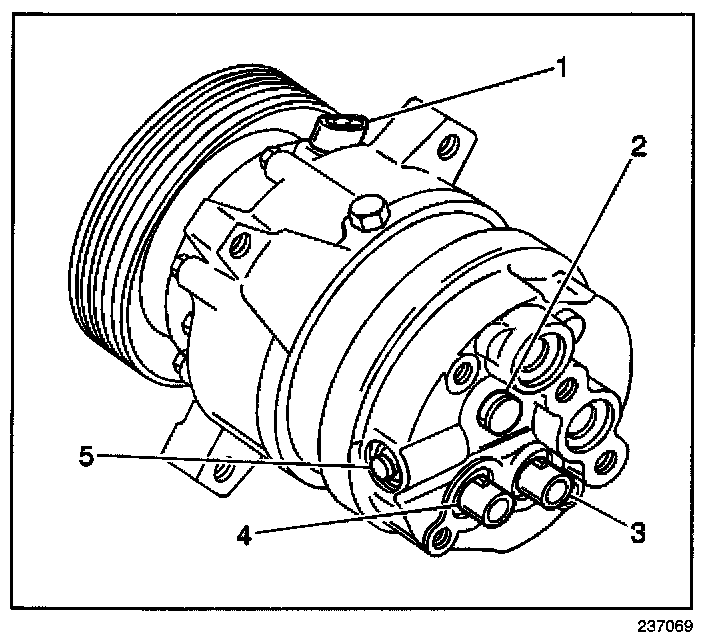

3. Remove the control valve assembly (5).
