Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
C2
C2

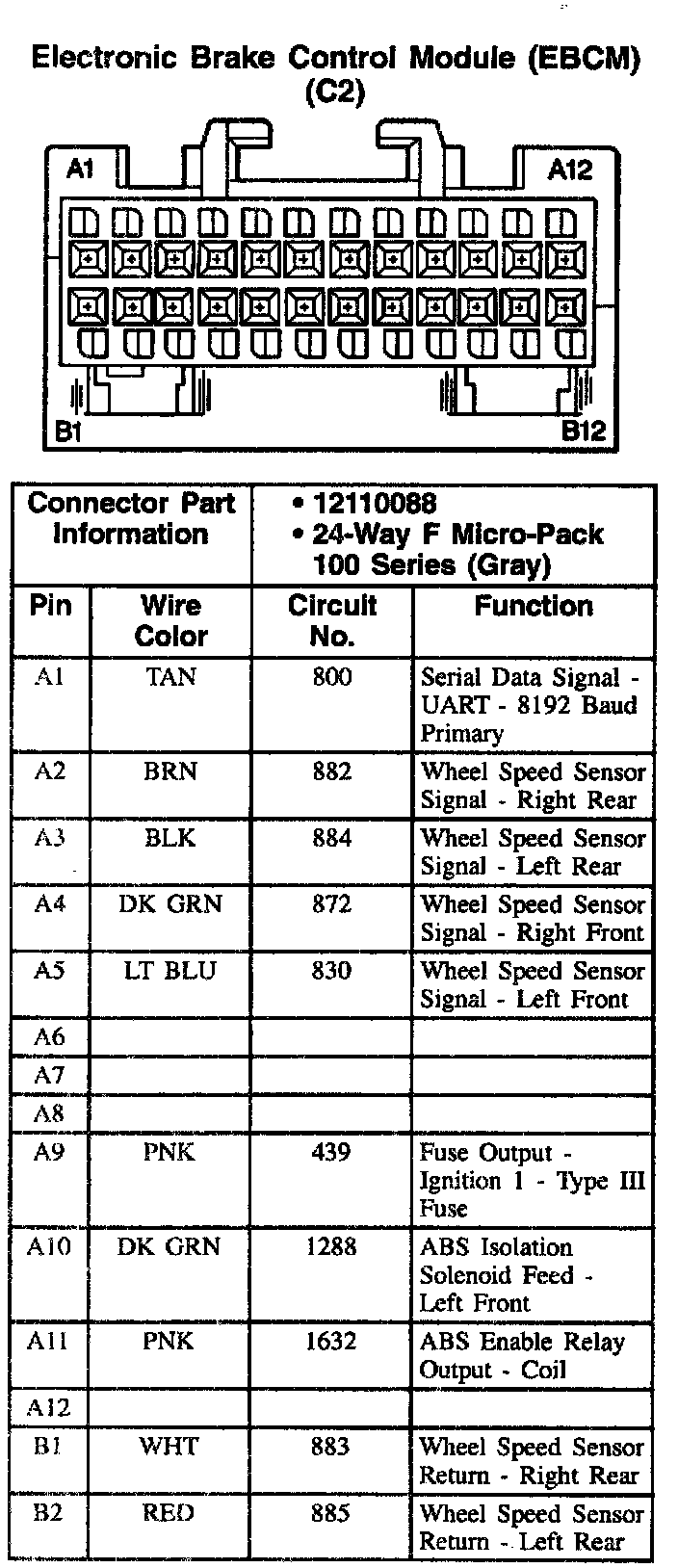

Electronic Brake Control Module (EBCM) (C2) (Part 1 Of 2):

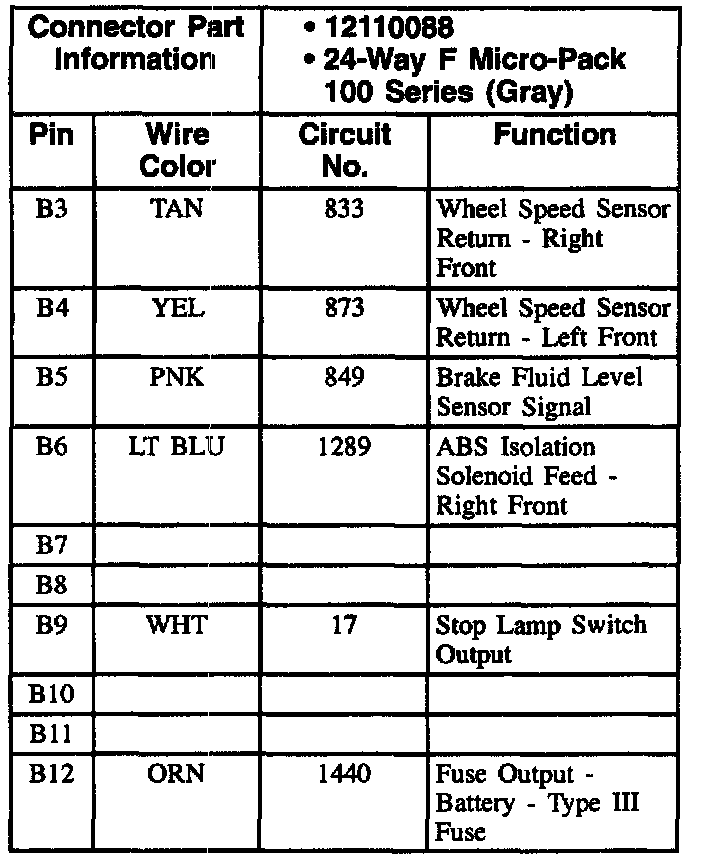

Electronic Brake Control Module (EBCM) (C2) (Part 2 Of 2):
