Home >> Pontiac >> 1998 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Dash Panel Extension

Dash Panel Extension

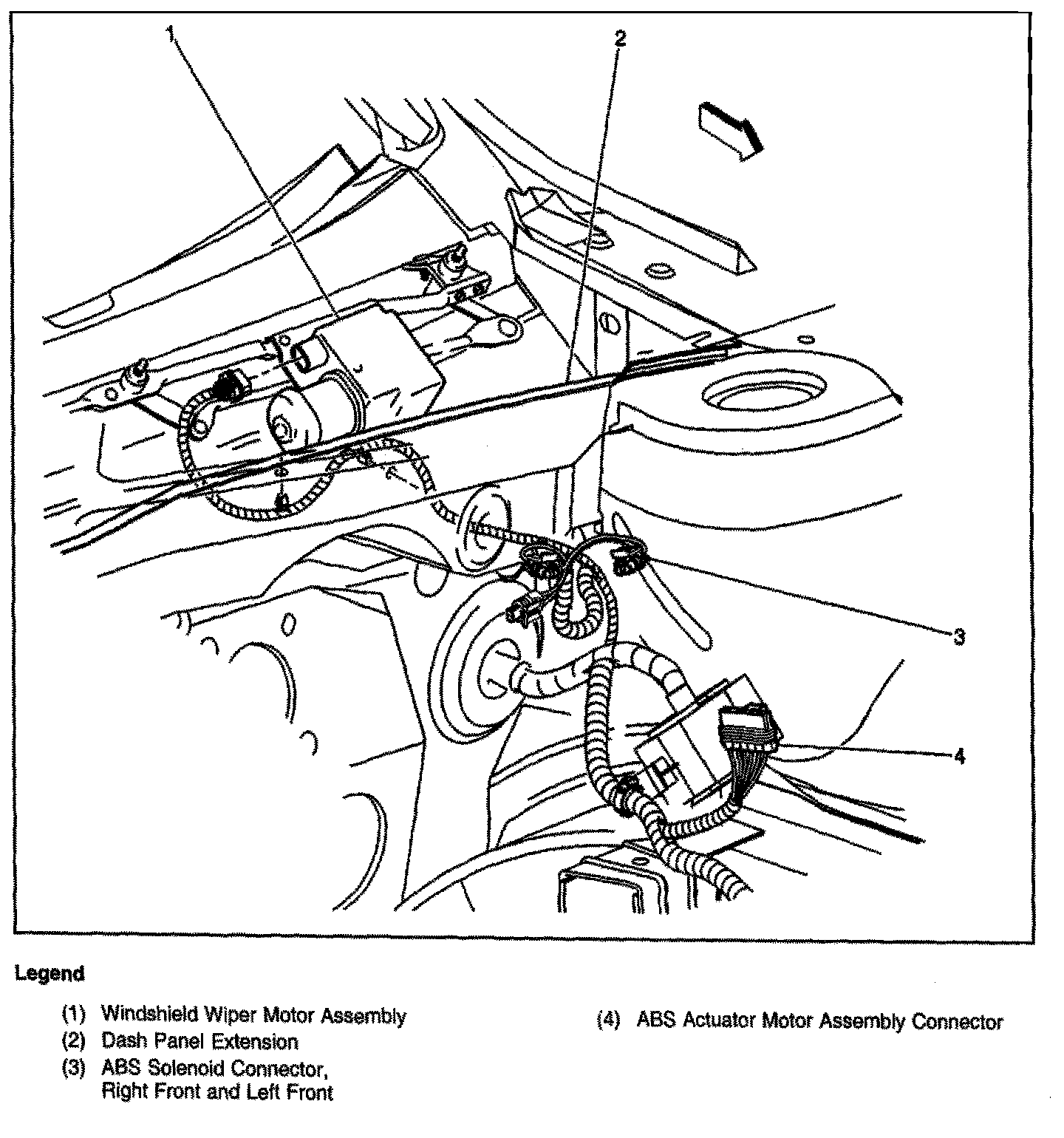

LF And RF ABS Solenoid And ABS Actuator Motor Assembly Connectors:

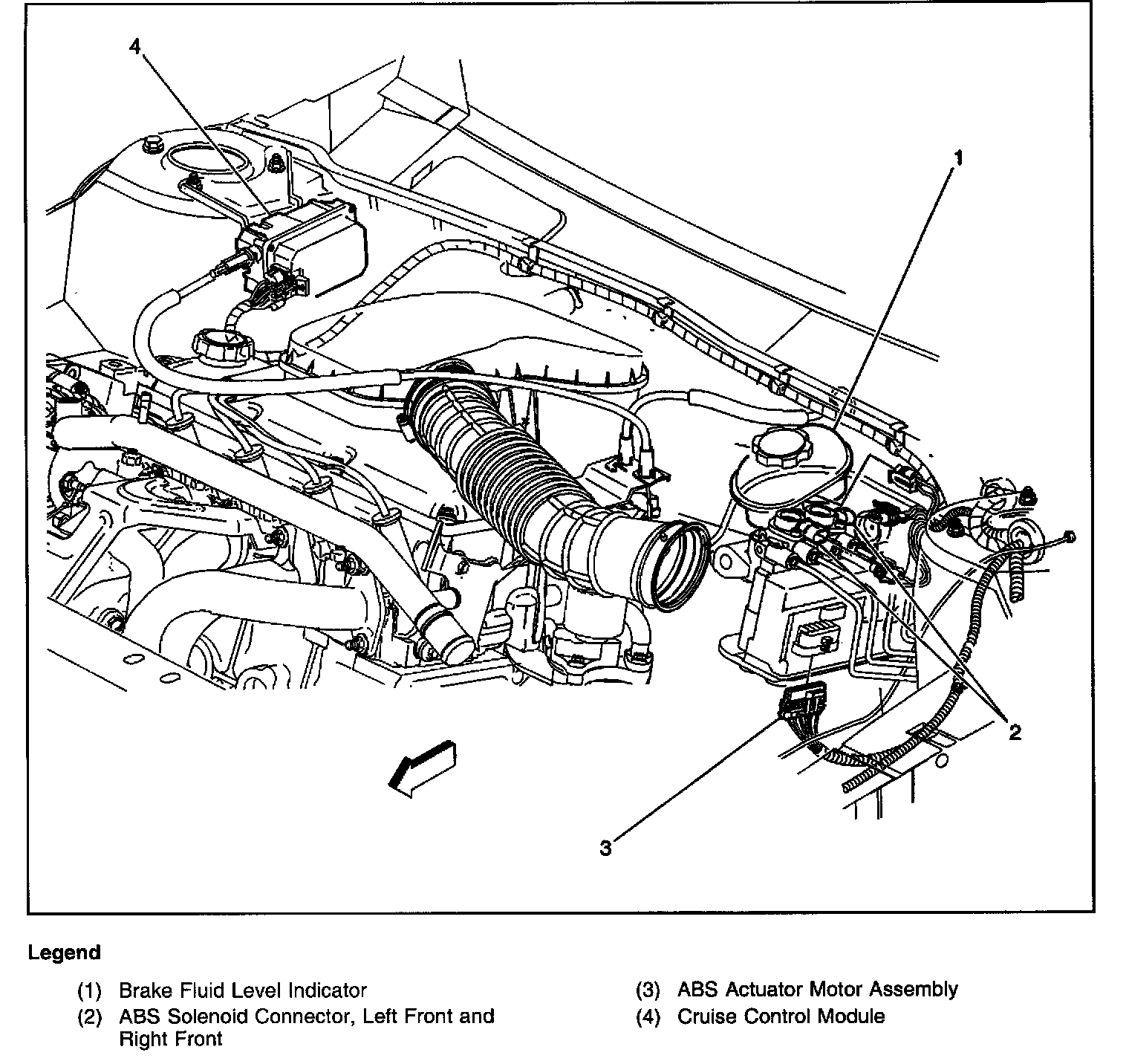

Brake Fluid Level Indicator And Cruise Control Module:
