Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>
Connector Locations
>>
Compressor Control Module
Compressor Control Module

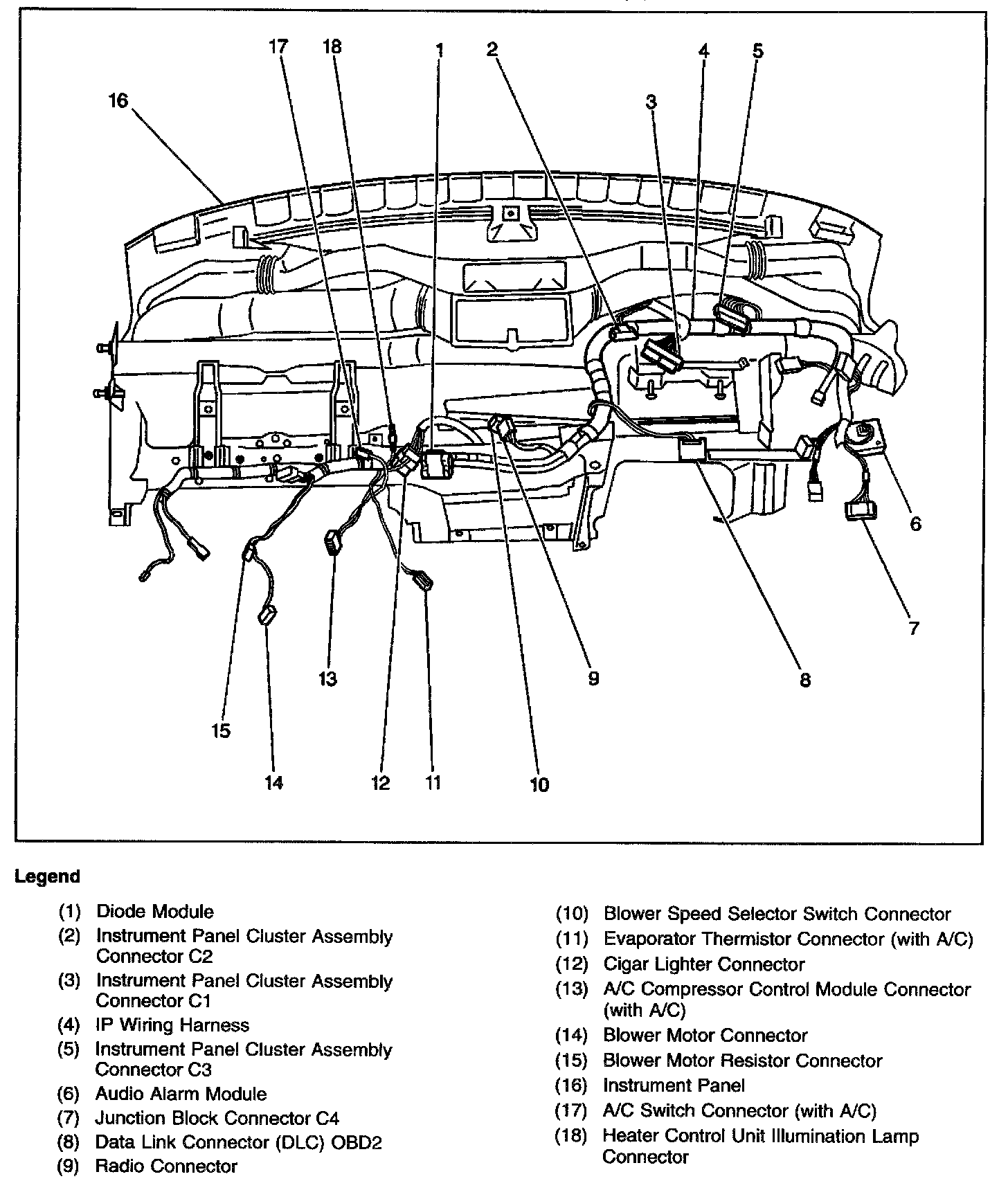

Instrument Panel - Rear View:
