Home >> Pontiac >> 1998 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Junction Block

Junction Block

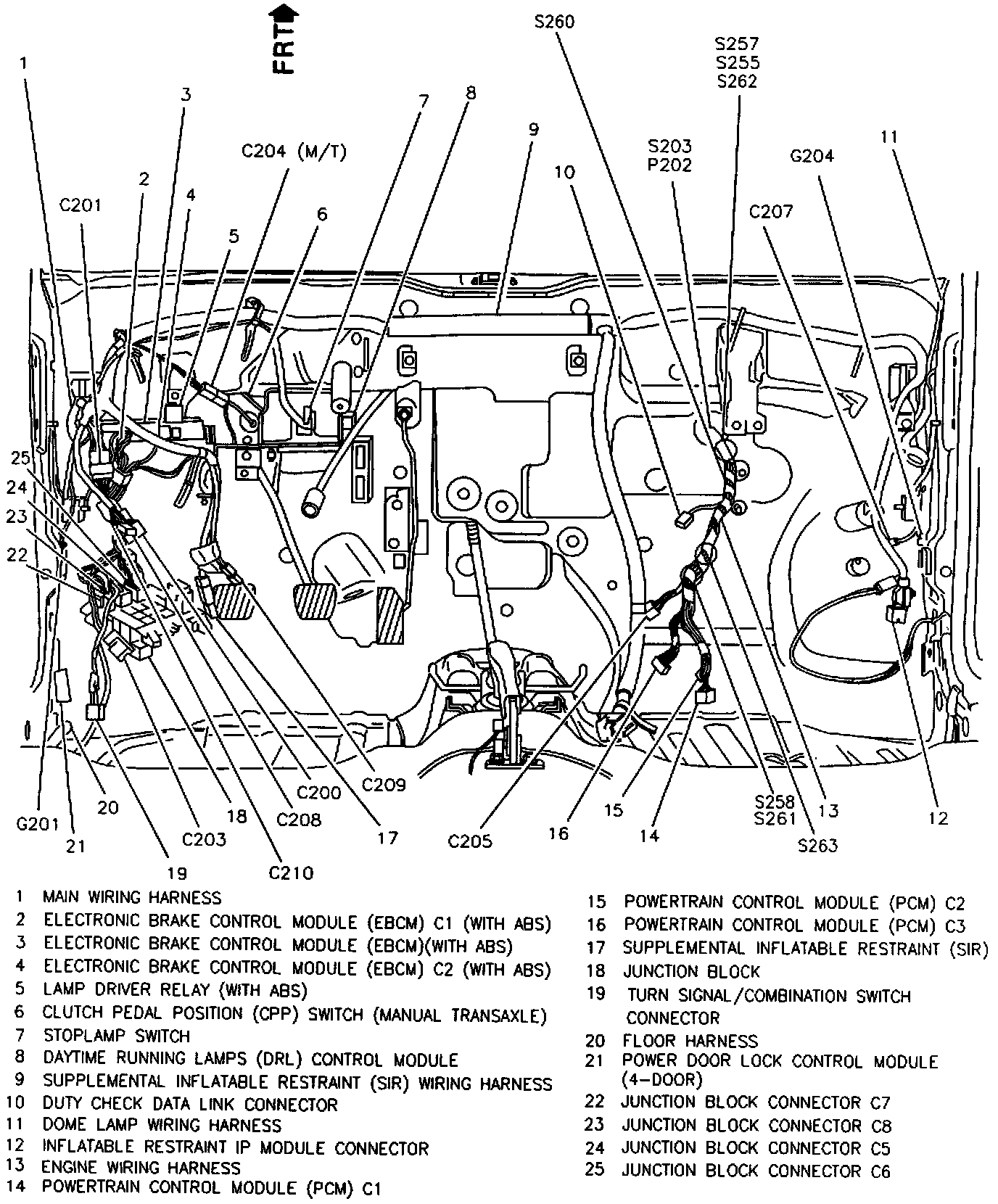

Cowl Wiring:

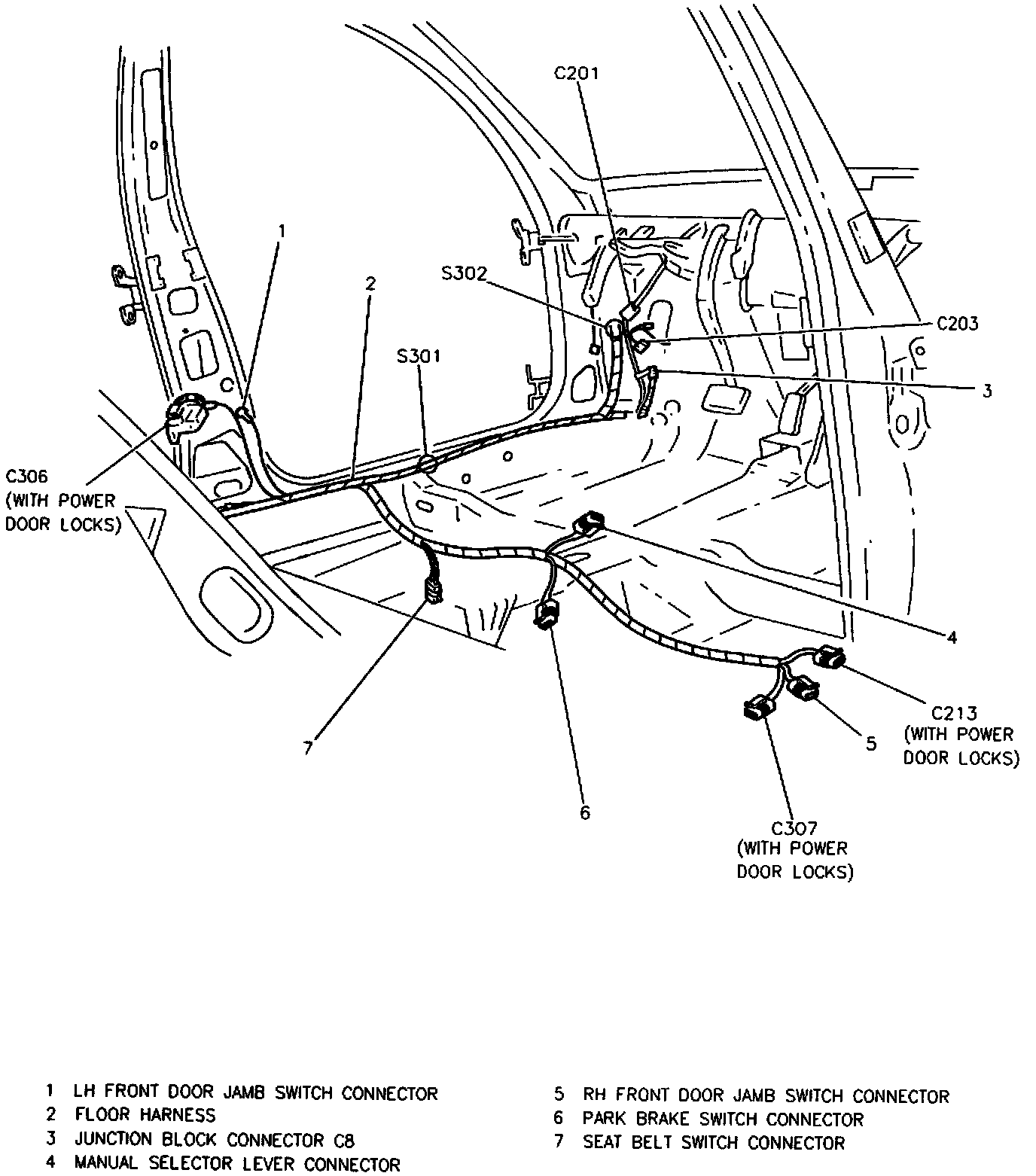

LH Front Passenger Compartment Wiring: 4-Door:
