Pontiac
>>
1997
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Locations
>>
Connector Locations
Connector Locations

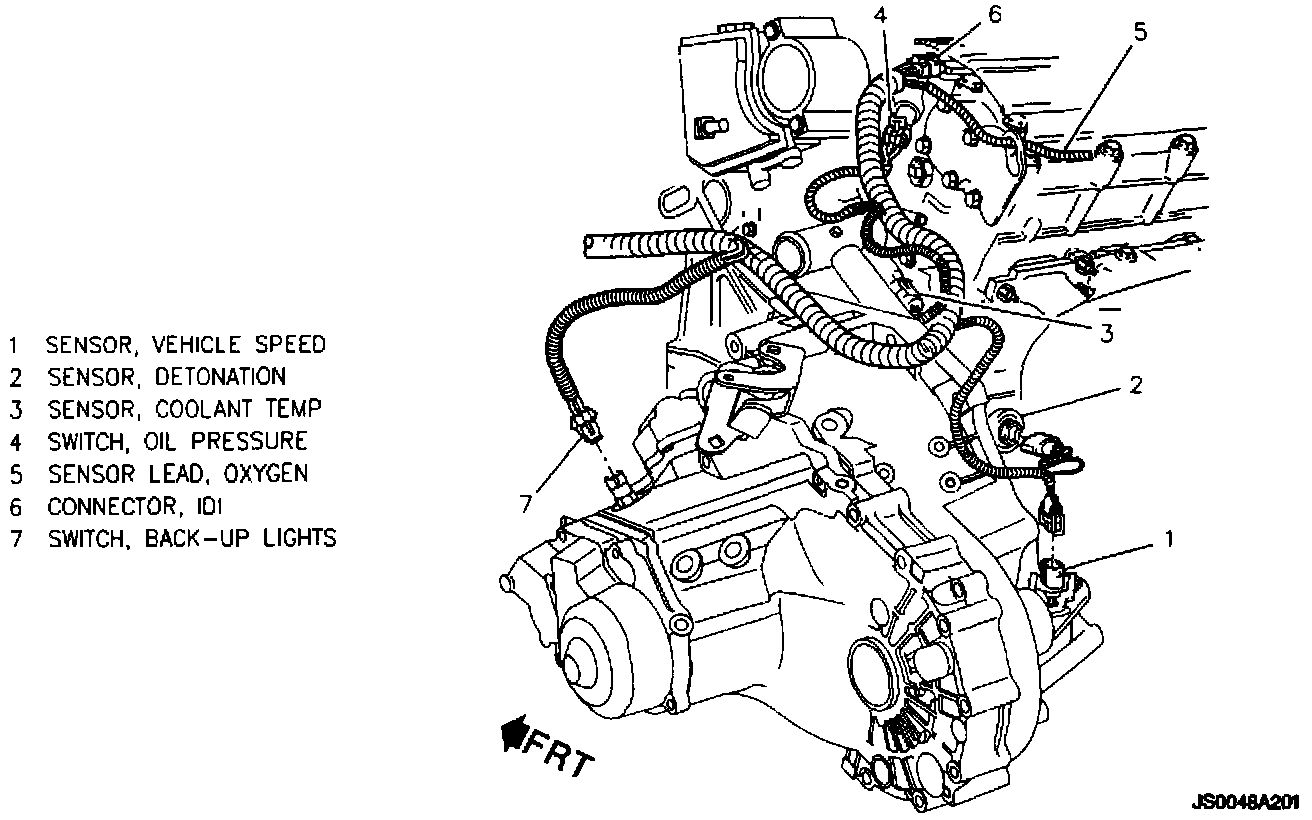

Left Rear Of Transaxle:

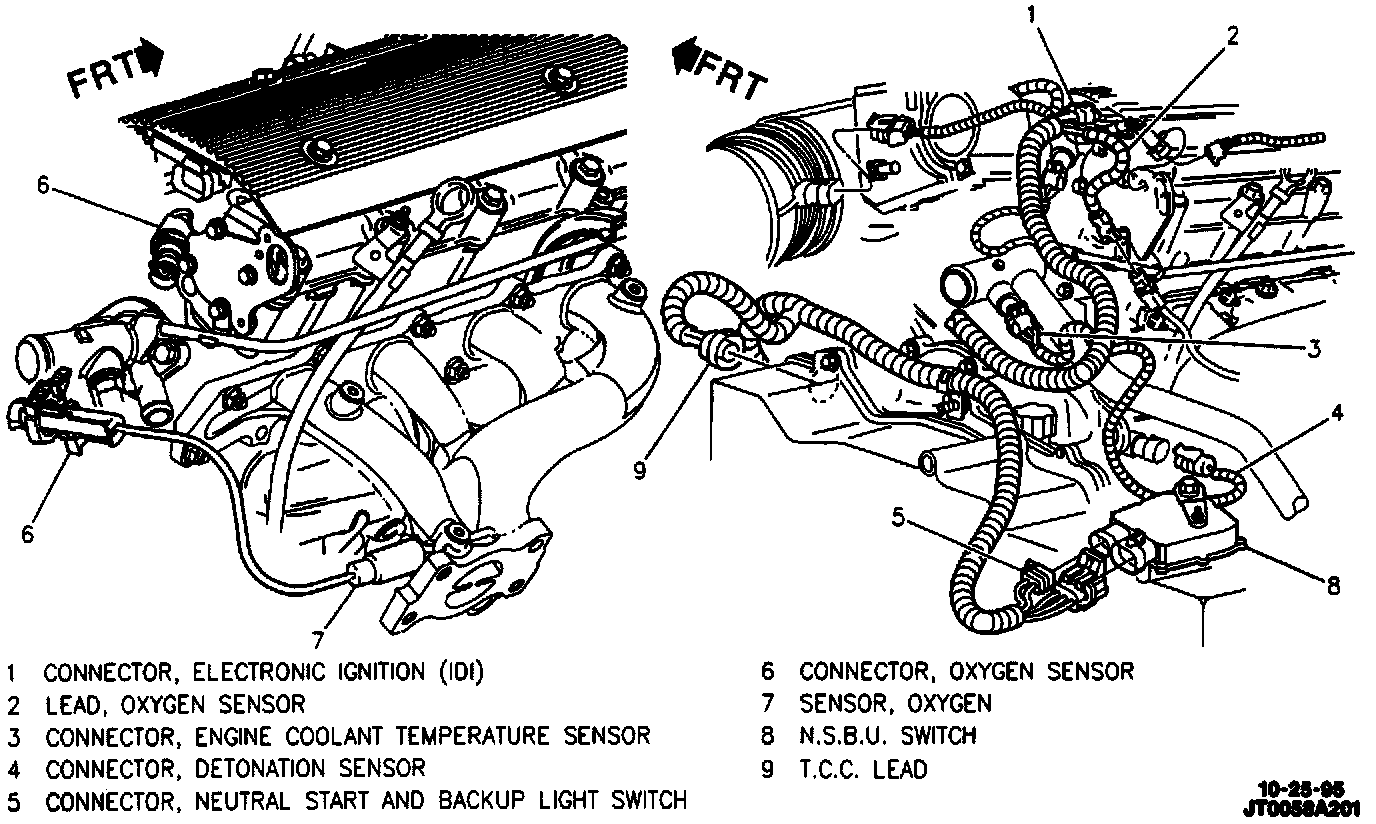

LH Rear Of Engine:
