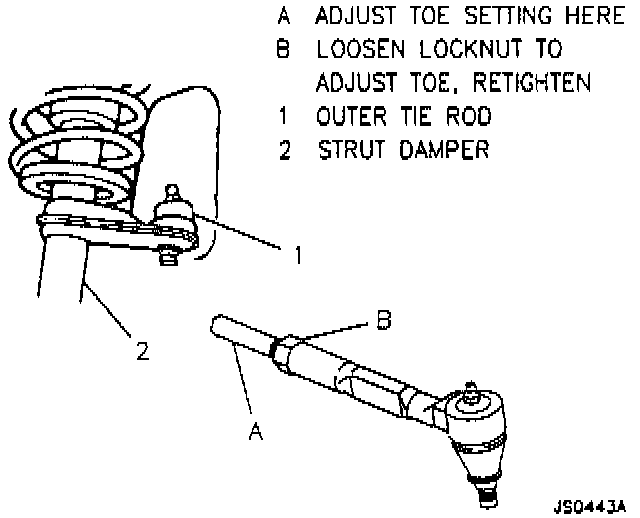

Front Toe Adjustment
DISASSEMBLE
1. Be sure steering wheel is set in a straight ahead position within +/- 5 degrees.
2. Loosen jam nut.
3. Adjust toe to specification by turning adjuster.
4. Tighten jam nut to 75 Nm (55 ft. lbs.).
DISASSEMBLE
1. Be sure steering wheel is set in a straight ahead position within +/- 5 degrees.
2. Loosen jam nut.
3. Adjust toe to specification by turning adjuster.
4. Tighten jam nut to 75 Nm (55 ft. lbs.).
