Pontiac
>>
1997
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Housing Assembly HVAC
>>
Heater Module
Heater Module

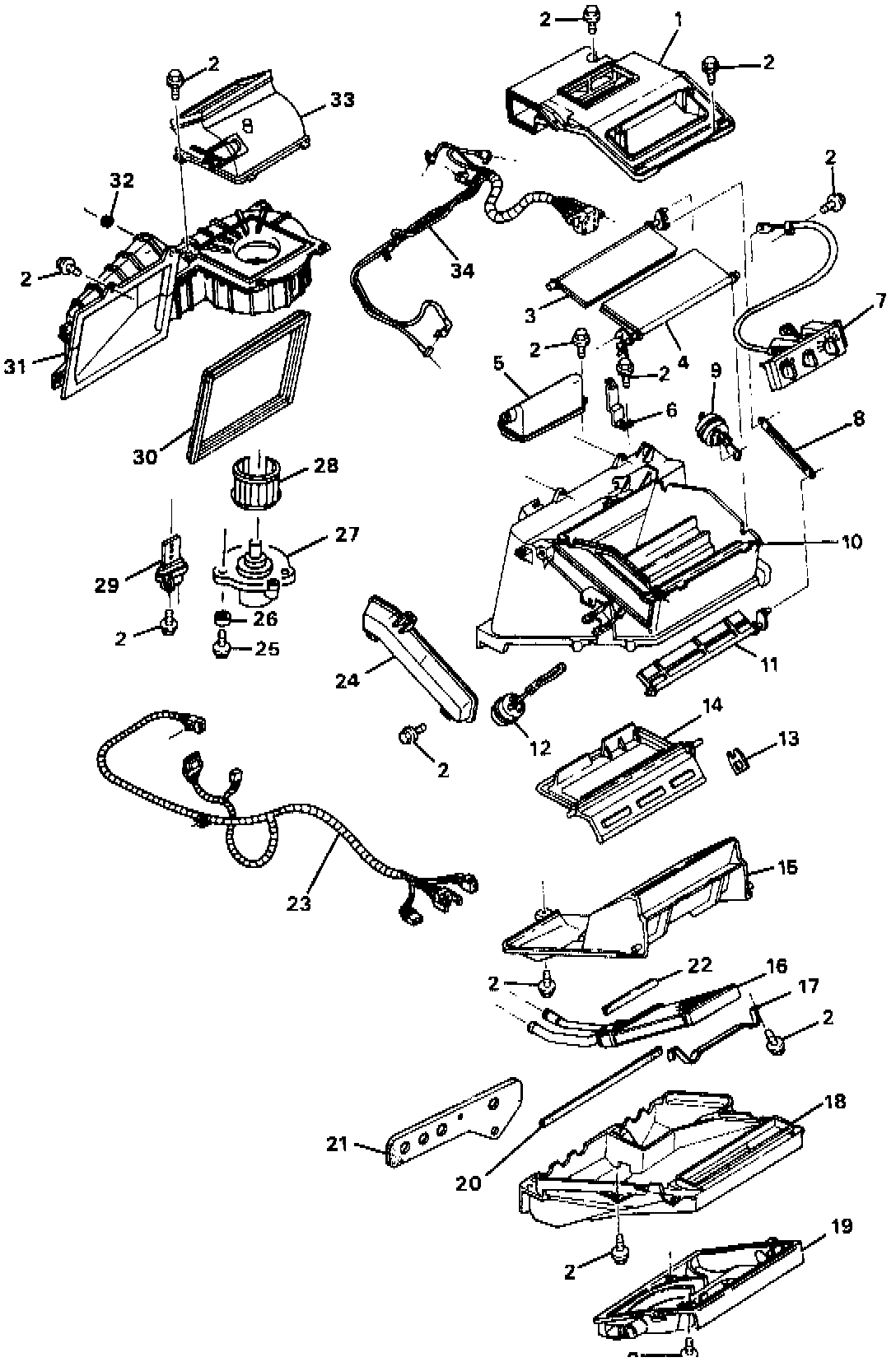

Heater Module - Disassembled View (1 Of 2):

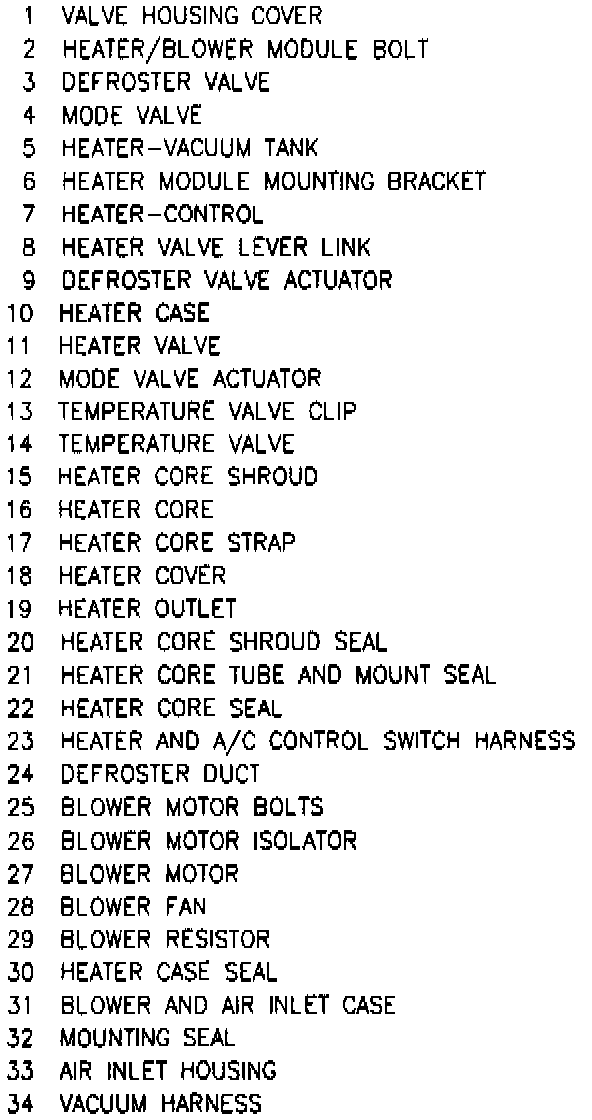

Heater Module - Disassembled View - Key (2 Of 2):
